CLAAS LEXION 480 CLAAS-Rotor drive 300 RPM Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
$78.00 Original price was: $78.00.$11.95Current price is: $11.95.
CLAAS LEXION 480 CLAAS-Rotor drive 300 RPM Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
Description
CLAAS LEXION 480 CLAAS-Rotor drive 300 RPM Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
DESCRIPTION:
CLAAS LEXION 480 CLAAS-Rotor drive 300 RPM Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
INTRODUCTION
These fitting instructions explain the procedure for installing of the Rotor drive 300 RPM to the CLAAS β Harvester Combines LEXION 480. On page 4 can be found the list of components required for the conversion. Each major component is Identified with a number. Each major component such as a bolt should be checked against the list of supplied components in order to determine quantity and relative components such as nuts and washers. The text and pictures are as accurate as possible. To determine the difference between different types of components, then please refer to the text description.
TABLE OF CONTENTS:
CLAAS LEXION 480 CLAAS-Rotor drive 300 RPM Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
Shipping package Quantity
(Order number 181 493.0 / 759 994.0)
1 Spacer D210 x 99,3 1
2 V-belt pulley D477 1
(only order number 181 493.0)
3 Hex. bolts M16 x 40 DIN 933-8.8 3
Contact-washer A16 3
4 V-belt pulley D210 x 130 3
5 Power band belt 3 x 17 x 3375 long

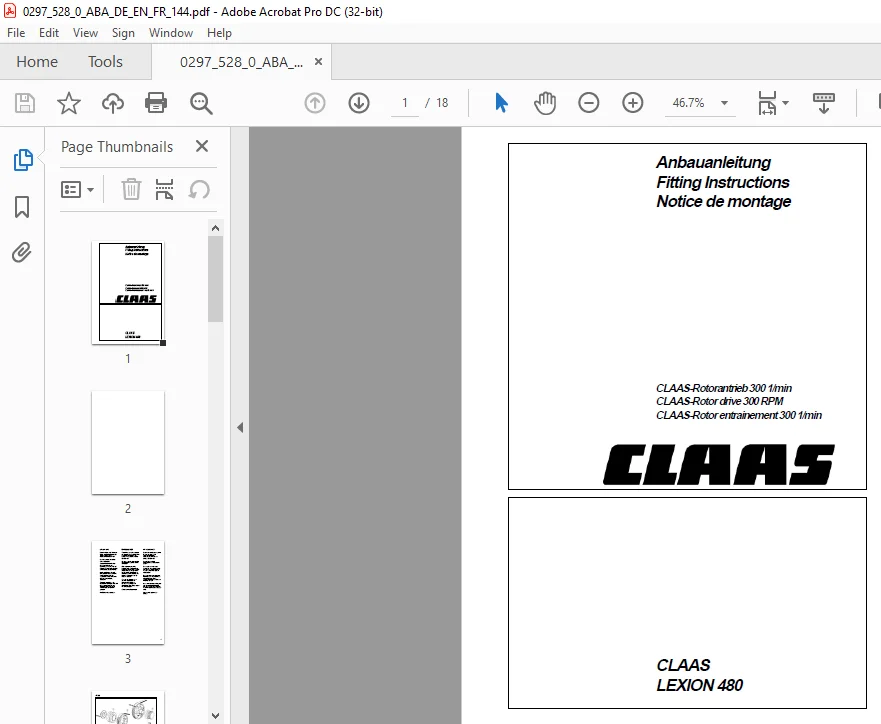

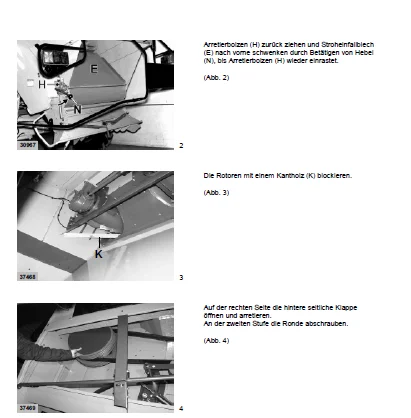

IMAGES PREVIEW OF THE MANUAL:
