CLAAS LEXION 480 LEXION 460-405 Air compressor system Fitting Instructions Manual DE_EN_FR

Description

CLAAS LEXION 480 LEXION 460-405 Air compressor system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 LEXION 460-405 Air compressor system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

These are the instructions on fitting the air compressor system to the CLAAS Lexion 480-405 range of combine harvesters. The shipping package is shown on page 4. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package».

• The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers.
• Text and pictures apply, in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460-405 Air compressor system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Retainer 1
2 Hex bolt M 10 x 25 DIN 933-8 8 3
Contact washer A 10 3
Hex nut M 10 DIN 934-8 3
3 Support 1
4 Hex bolt M 12 x 120 DIN 931 1
Hex nut M 12 1
Contact washer M 12 1
5 Hex bolt M 10 x 120 DIN 931 1
Contact washer A 10 1
Hex nut M 10 x DIN 934-8 1
6 Hex bolt M 8 x 30 DIN 933-8 8 3
Hex nut M 8 DIN 934-8 3
Contact washer A 8 3
7 Hex bolt M 8 x 35 DIN 933-8 8 1
Contact washer A 8 1
Hex nut M 8 DIN 934-8 8 1
8 Pipe clamp RSGU 1 30/25 1
9 Spacer BR 1228/030 1
10 Hex bolt M 12 x 75 DIN 933-8 8 1
Contact washer A 12 2
Hex nut M 12 DIN 934-8 1
11 U washer 13 x 30 x 3 DIN 522 2
12 Hex bolt M 6 x 20 DIN 933-8 8 3
Contact washer A 6 3
13 Compressor 1
14 Hex bolt M 8 x 40 DIN 933-8 8 4
Contact washer A 8 4
Hex nut M 8 DIN 934-8 4
15 Tensioner 1
16 Tensioner 1
17 Hex bolt M 10 x 100 DIN 933-8 8 1
18 Drive belt 12 5 x 825 La 1
19 Suction pipe 1
Pipe clamp SZA 100 IK 3 1
Tie wrap 7 5 x 360 1
20 Adapter connection 1
Hex nut M 18 x 1 5 DIN 934-8 1
21 Air tank 1
22 Air line 140 mm (5 51 in) long 1
23 Pressure regulator 1
Bracket for regulator 1
24 Pipe clamp RSGU 1 21/20 1
25 Hex bolt M 8 x 35 DIN 933-8 8 1
Contact washer A 10 1
Hex nut M 10 DIN 934-8 1
26 Air line 1
27 Fixing clamp BSS 2 x 22 x 25 x 3 2
28 Rubber bush 15/15 2
29 Hex bolt M 8 x 50 DIN 933-8 8 1
30 Bracket 1
31 Plastic plate 1
32 Bracket 1
33 Bracket 1
34 Plastic plate 1
35 Rivet D 4 8 x 16 DIN 7337 4
36 Rivet D 4 8 x 10 7337 2
37 Angle Lexion 460-405 1
37 Brace Lexion 480
38 Hex bolt M 6 x 20 DIN 933-8 8 1
Contact washer A 6 1
Hex nut M 6 DIN 934-8 1
39 Rubber bush 15/15 1
40 Fixing clamp BSS 2 x 22 x 25 x 3 1
41 Pipe clamp RSGU 1 30/25 1
42 Hex bolt M 8 x 50 DIN 933-8 8 1
Contact washer A 8 1
43 Suction pipe ANS 019/2720 1
44 Pipe clamp Norma SZA 100 IK 3 2
45 Teflon tube TSI 850W 1
46 Air connection 1
47 Hex bolt M 8 x 30 DIN 933-8 8 1
Contact washer A 8 1
48 Plastic pipe 1750 mm long (68 89 in) 1
Insulating tube 1750 mm long (68 89 in) 1
49 Pipe clamp 1 21/20 2
50 Hex bolt M 8 x 25 DIN 933-8 8 1
Contact washer A 8 1
51 Plastic pipe 3200 (125 98 in) long 1
Insulating tube 3200 (125 98 in) long 1
52 Pressure gauge 1
53 Pipe clamp 542 20/20 3
54 Pipe clamp 542 15/20 1
55 Hex bolt M 8 x 30 DIN 933-8 8 1
Hex nut M 8 DIN 934-8 1
Contact washer A 8 1
56 Hex bolt M 8 x 25 DIN 933-8 8 1
Contact washer A 8 1
Hex nut M 8 DIN 934-8 1
57 Tie wrap 7 5 x 360 3
58 Air gun 1
59 Cloth pipe 1
60 Sticker 1

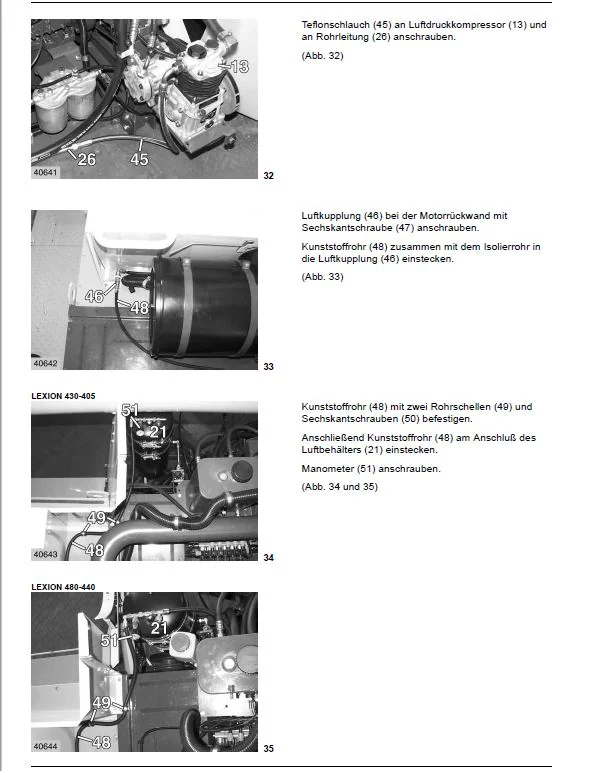

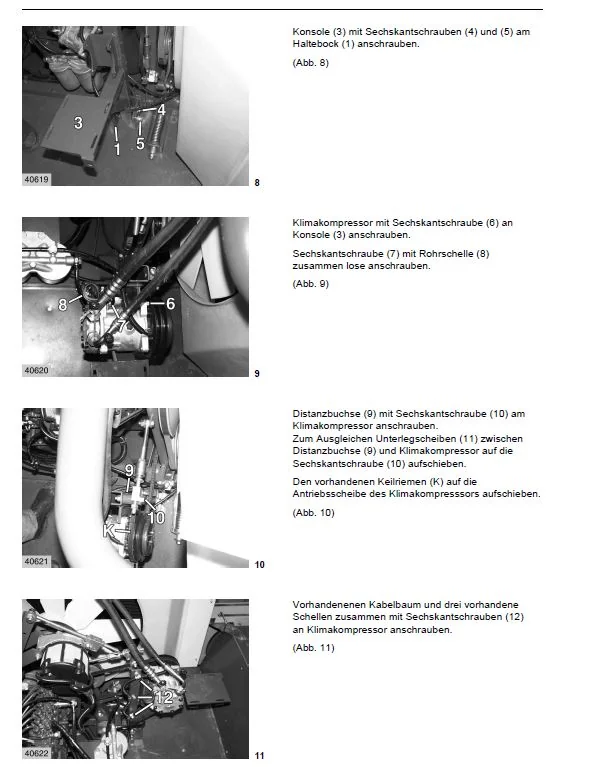

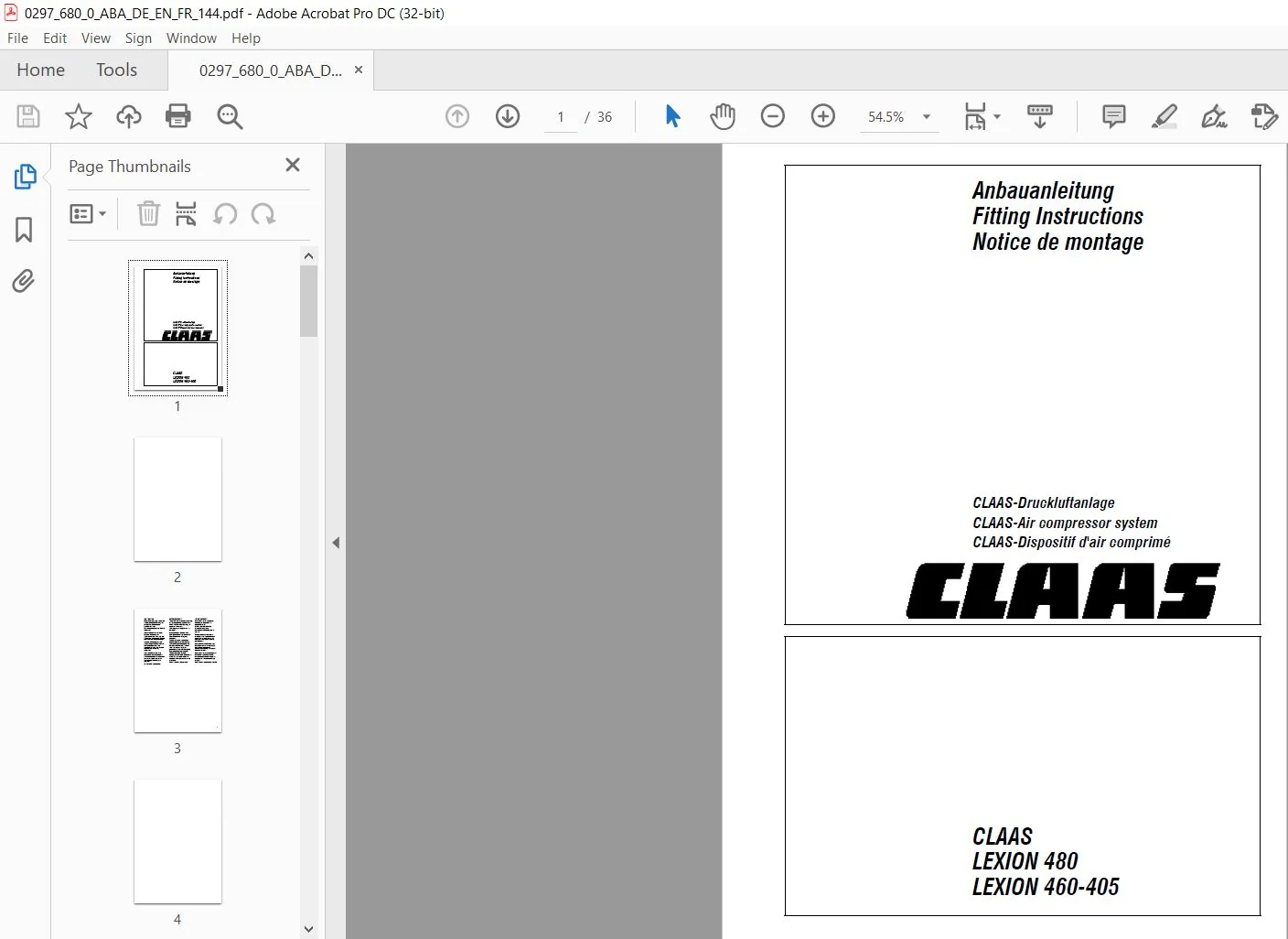

IMAGES PREVIEW OF THE MANUAL:
