CLAAS LEXION 480 LEXION 460-405 CLAAS-Air compressor system Fitting Instructions Manual_DE_EN_FR_

Description

CLAAS LEXION 480 LEXION 460-405 CLAAS-Air compressor system Fitting Instructions Manual_DE_EN_FR_

DESCRIPTION:

CLAAS LEXION 480 LEXION 460-405 CLAAS-Air compressor system Fitting Instructions Manual_DE_EN_FR_\

INTRODUCTION

These are the instructions on fitting the air compressor system to the CLAAS Lexion 480-405 range of combine harvesters. The shipping package is shown on page 4. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460-405 CLAAS-Air compressor system Fitting Instructions Manual_DE_EN_FR_

30 Bracket 1
31 Plastic plate 1
32 Bracket 1
33 Bracket 1
34 Plastic plate 1
35 Rivet D 48 x 16 DIN 7337 4
36 Rivet D 48 x 10 7337 2
37 Angle Lexion 460-405 1
37 Brace Lexion 480
38 Hex bolt M 6 x 20 DIN 933-88 1
Contact washer A 6 1
Hex nut M 6 DIN 934-8 1
39 Rubber bush 15/15 1
40 Fixing clamp BSS 2 x 22 x 25 x 3 1
41 Pipe clamp RSGU 130/25 1
42 Hex bolt M 8 x 50 DIN 933-88 1
Contact washer A 8 1
43 Suction pipe ANS 019/2720 1
44 Pipe clamp Norma SZA 100 IK 3 2
45 Teflon tube TSI 850W 1
46 Air connection 1
47 Hex bolt M 8 x 30 DIN 933-88 1
Contact washer A 8 1
48 Plastic pipe 1750 mm long (6889 in) 1
Insulating tube 1750 mm long (6889 in) 1
49 Pipe clamp 121/20 2
50 Hex bolt M 8 x 25 DIN 933-88 1
Contact washer A 8 1
51 Plastic pipe 3200 (12598 in) long 1
Insulating tube 3200 (12598 in) long 1
52 Pressure gauge 1
53 Pipe clamp 542 20/20 3
54 Pipe clamp 542 15/20 1
55 Hex bolt M 8 x 30 DIN 933-88 1
Hex nut M 8 DIN 934-8 1
Contact washer A 8 1
56 Hex bolt M 8 x 25 DIN 933-88 1
Contact washer A 8 1
Hex nut M 8 DIN 934-8 1
57 Tie wrap 75 x 360 3
58 Air gun 1
59 Cloth pipe 1
60 Sticker 1
Shipping package Quantity
1 Retainer 1
2 Hex bolt M 10 x 25 DIN 933-88 3
Contact washer A 10 3
Hex nut M 10 DIN 934-8 3
3 Support 1
4 Hex bolt M 12 x 120 DIN 931 1
Hex nut M 12 1
Contact washer M 12 1
5 Hex bolt M 10 x 120 DIN 931 1
Contact washer A 10 1
Hex nut M 10 x DIN 934-8 1
6 Hex bolt M 8 x 30 DIN 933-88 3
Hex nut M 8 DIN 934-8 3
Contact washer A 8 3
7 Hex bolt M 8 x 35 DIN 933-88 1
Contact washer A 8 1
Hex nut M 8 DIN 934-88 1
8 Pipe clamp RSGU 130/25 1
9 Spacer BR 1228/030 1
10 Hex bolt M 12 x 75 DIN 933-88 1
Contact washer A 12 2
Hex nut M 12 DIN 934-8 1
11 U washer 13 x 30 x 3 DIN 522 2
12 Hex bolt M 6 x 20 DIN 933-88 3
Contact washer A 6 3
13 Compressor 1
14 Hex bolt M 8 x 40 DIN 933-88 4
Contact washer A 8 4
Hex nut M 8 DIN 934-8 4
15 Tensioner 1
16 Tensioner 1
17 Hex bolt M 10 x 100 DIN 933-88 1
18 Drive belt 125 x 825 La 1
19 Suction pipe 1
Pipe clamp SZA 100 IK 3 1
Tie wrap 75 x 360 1
20 Adapter connection 1
Hex nut M 18 x 15 DIN 934-8 1
21 Air tank 1
22 Air line 140 mm (551 in) long 1
23 Pressure regulator 1
Bracket for regulator 1
24 Pipe clamp RSGU 121/20 1
25 Hex bolt M 8 x 35 DIN 933-88 1
Contact washer A 10 1
Hex nut M 10 DIN 934-8 1
26 Air line 1
27 Fixing clamp BSS 2 x 22 x 25 x 3 2
28 Rubber bush 15/15 2
29 Hex bolt M 8 x 50 DIN 933-88 1
4

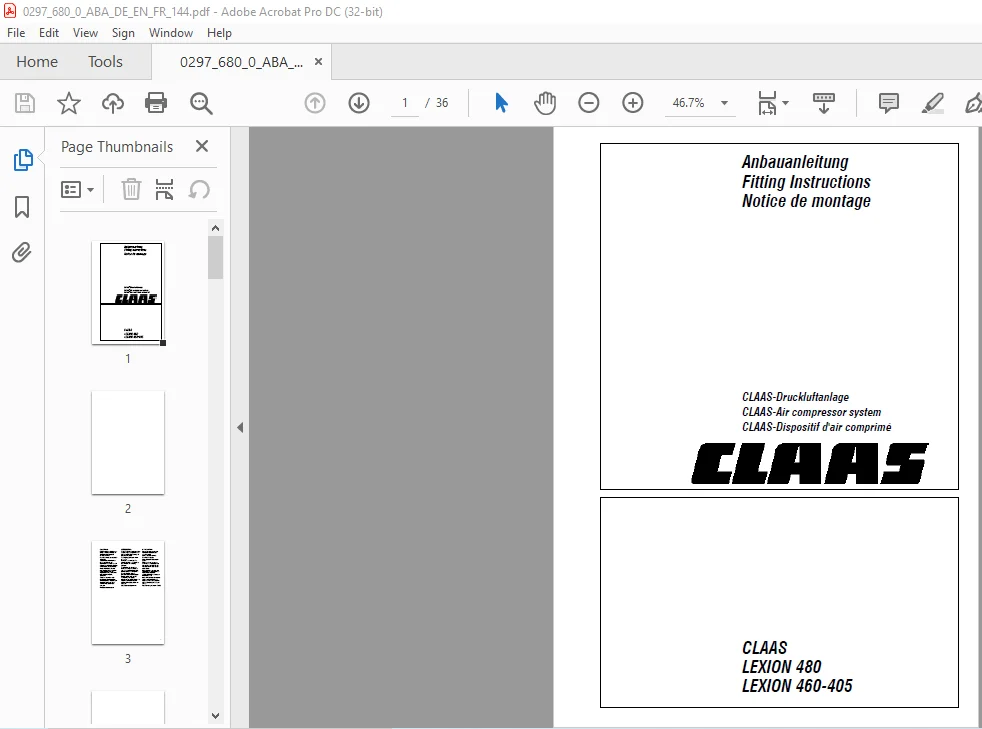

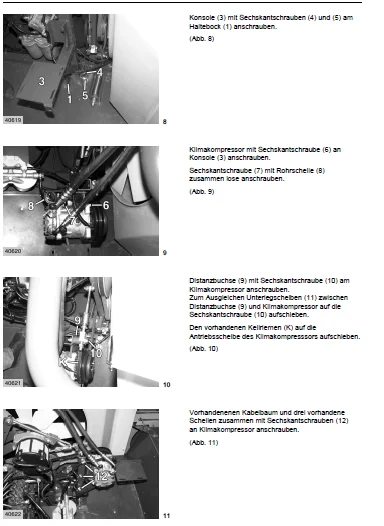

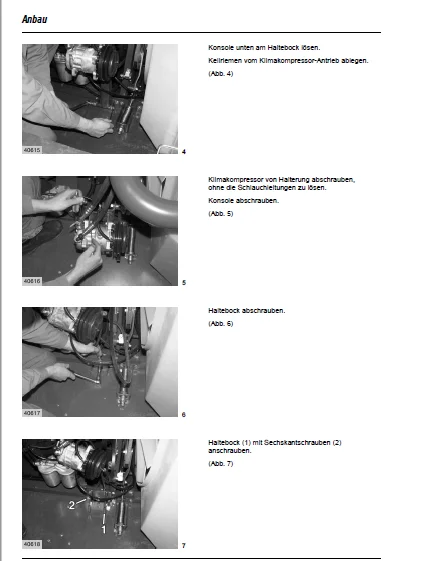

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 480 LEXION 460-405 CLAAS-AIR COMPRESSOR SYSTEM FITTING INSTRUCTIONS MANUAL_DE_EN_FR_:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
