INTRODUCTION

This manual is intended to show you how to fit the fan blast reduction kit to CLAAS LEXION 480 and LEXION 460 – 405 combine-harvesters. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 405 CLAAS Fan Blast Reduction Kit Fitting Instruction Manual_DE_EN_FR

LEXION 480 – 415
1 Bearing 82 x 82 x 2
LEXION 480 – 440 4
LEXION 430 – 415 3
2 Hexagon bolt M 8 x 25 DIN 933 – 88
Contact washer A 8
Hexagon nut M 8 DIN 934 – 8
LEXION 480 – 440 4
LEXION 430 – 415 3
3 Plate half
LEXION 480 – 440 6
LEXION 430 – 415 4
4 Plate half
LEXION 480 – 440 6
LEXION 430 – 415 4
5 Hexagon bolt M 6 x 16 DIN 933 – 88
Contact washer A 6
Hexagon nut M 6 DIN 934 – 8
LEXION 480 – 440 24
LEXION 430 – 415 16
6 Guide 1
7 Hexagon bolt M 8 x 25 DIN 933 – 88 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934 – 8 1
8 Hexagon bolt M 8 x 25 DIN 933 – RS 1
Hexagon nut M 8 DIN 934 – 8 1
9 Control rod, round, 10 x 1730 long
LEXION 480 – 440 1
Control rod, round, 10 x 1180 long
LEXION 430 – 415 1
10 Control rod, round, 10 x 1420 long 1
11 Control rod, round, 10 x 510
LEXION 480 – 440 1
12 Control rod, round, 10 x 520
LEXION 480 – 440 1
13 Threaded bushing, hexagon 13
LEXION 480 – 440 4
LEXION 430 – 415 2
14 Hexagon nut M 10 DIN 934 – 8
LEXION 480 – 440 8
LEXION 430 – 415 4
15 Control rod, round, 10 x 270
LEXION 480 – 440 1
16 Hexagon bolt M 8 x 25 DIN 933 – RS
Hexagon nut M 8 DIN 934 – 8
LEXION 480 – 440 6
LEXION 430 – 415 4
17 Control rod, round x 625, LEXION 430 – 415 only 2
18 Control rod, round x 575, LEXION 430 – 415 only 1
19 Control rod, round x 375, LEXION 430 – 415 only 1
20 Set collar A 11 x 35 x 20 / M 8 2
Set screw M 8 x 10 2

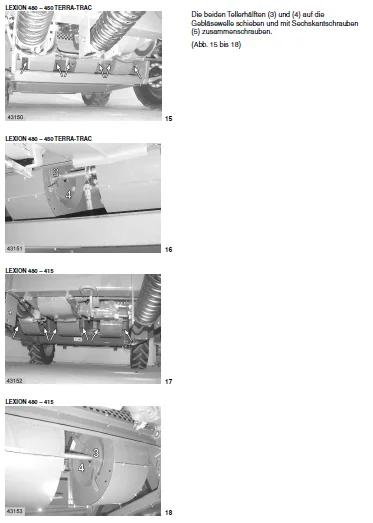

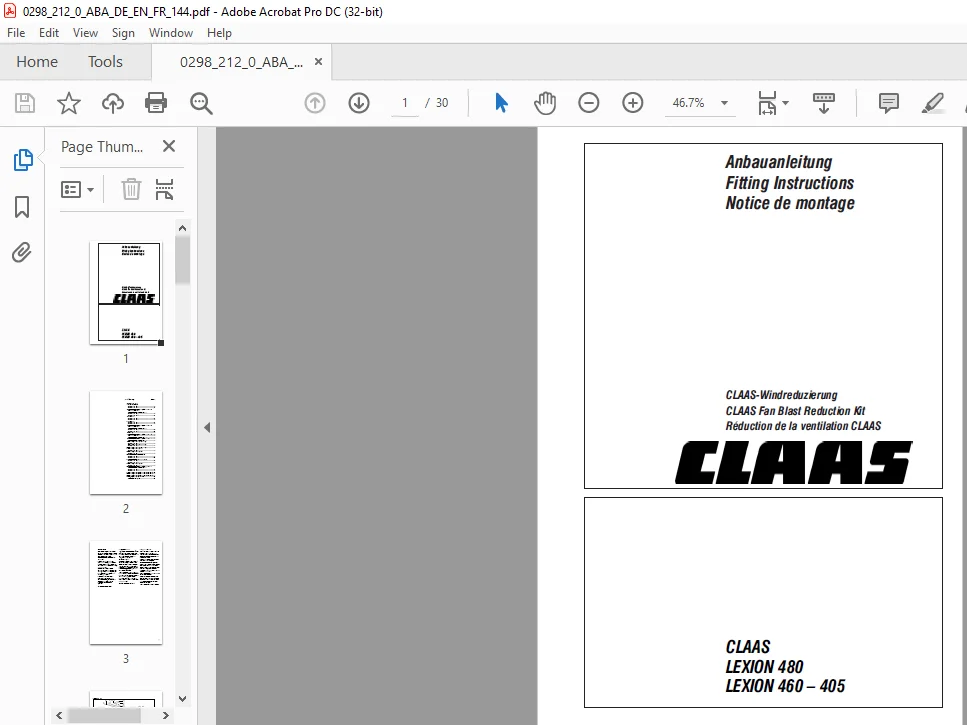

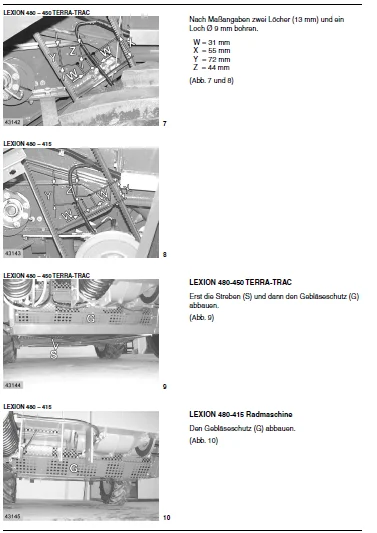

IMAGES PREVIEW OF THE MANUAL:
