CLAAS LEXION 480 LEXION 460-405 Fan Blast Reduction Kit Fitting Instructions Manual DE_EN_FR

Description

CLAAS LEXION 480 LEXION 460-405 Fan Blast Reduction Kit Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 LEXION 460-405 Fan Blast Reduction Kit Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

This manual is intended to show you how to fit the fan blast reduction kit to CLAAS LEXION 480 and LEXION 460 – 405 combine-harvesters. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package».

• The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers.
• Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460-405 Fan Blast Reduction Kit Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

LEXION 480 – 415
1 Bearing 82 x 82 x 2
LEXION 480 – 440 4
LEXION 430 – 415 3
2 Hexagon bolt M 8 x 25 DIN 933 – 8 8
Contact washer A 8
Hexagon nut M 8 DIN 934 – 8
LEXION 480 – 440 4
LEXION 430 – 415 3
3 Plate half
LEXION 480 – 440 6
LEXION 430 – 415 4
4 Plate half
LEXION 480 – 440 6
LEXION 430 – 415 4
5 Hexagon bolt M 6 x 16 DIN 933 – 8 8
Contact washer A 6
Hexagon nut M 6 DIN 934 – 8
LEXION 480 – 440 24
LEXION 430 – 415 16
6 Guide 1
7 Hexagon bolt M 8 x 25 DIN 933 – 8 8 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934 – 8 1
8 Hexagon bolt M 8 x 25 DIN 933 – RS 1
Hexagon nut M 8 DIN 934 – 8 1
9 Control rod, round, 10 x 1730 long
LEXION 480 – 440 1
Control rod, round, 10 x 1180 long
LEXION 430 – 415 1
10 Control rod, round, 10 x 1420 long 1
11 Control rod, round, 10 x 510
LEXION 480 – 440 1
12 Control rod, round, 10 x 520
LEXION 480 – 440 1
13 Threaded bushing, hexagon 13
LEXION 480 – 440 4
LEXION 430 – 415 2
14 Hexagon nut M 10 DIN 934 – 8
LEXION 480 – 440 8
LEXION 430 – 415 4
15 Control rod, round, 10 x 270
LEXION 480 – 440 1
16 Hexagon bolt M 8 x 25 DIN 933 – RS
Hexagon nut M 8 DIN 934 – 8
LEXION 480 – 440 6
LEXION 430 – 415 4
17 Control rod, round x 625, LEXION 430 – 415 only 2
18 Control rod, round x 575, LEXION 430 – 415 only 1
19 Control rod, round x 375, LEXION 430 – 415 only 1
20 Set collar A 11 x 35 x 20 / M 8 2
Set screw M 8 x 10 2

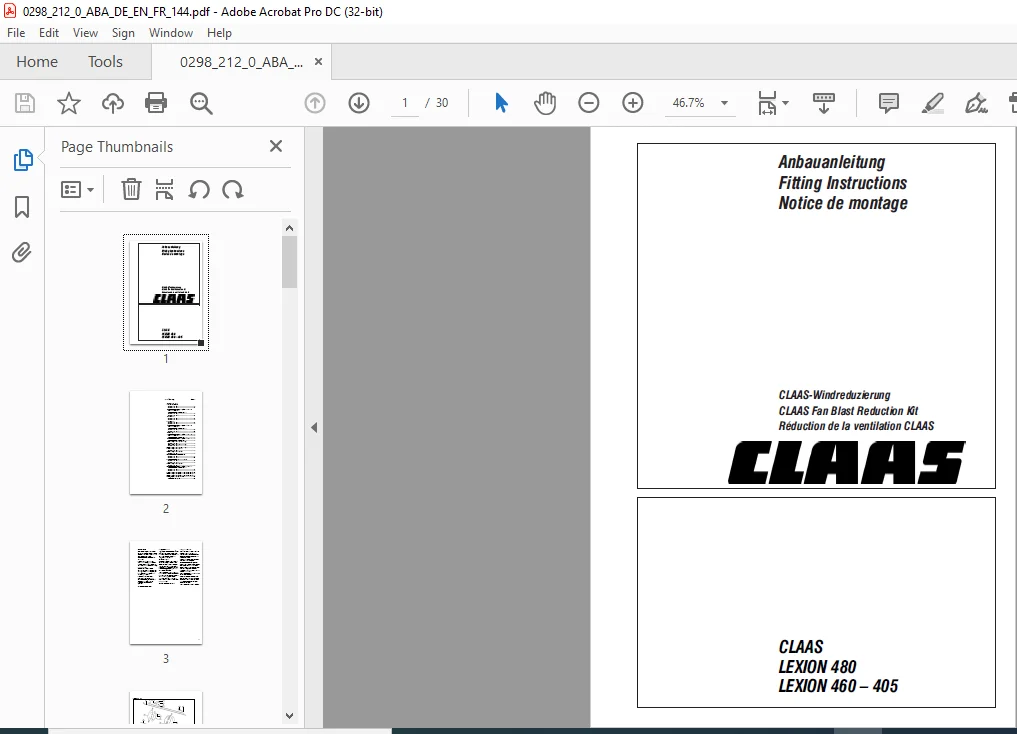

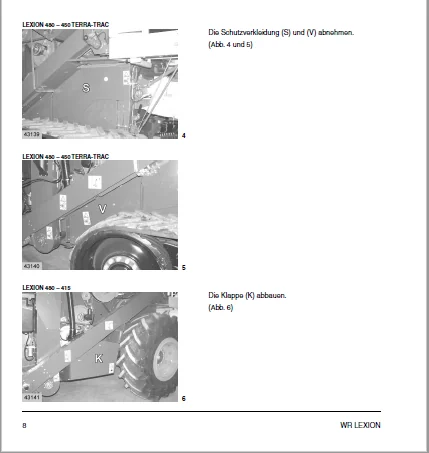

IMAGES PREVIEW OF THE MANUAL:
