DESCRIPTION:

CLAAS LEXION 480 LEXION 460 – 405 Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION :

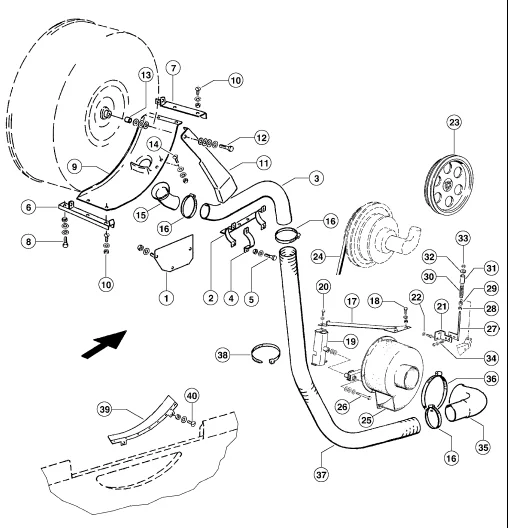

• These fitting instructions explain the procedure for installing the suction fan for the rotary radiator screen on the LEXION 480 and LEXION 460 – 405. The numbers refer to the quantities required.
• On page 6 can be found the list of components required for the conversion. To identify a component, e.g. a bolt, look up its relevant number in the »shipping package«, where the dimensions and quantities as well as the respective nuts and contact washers are shown.

TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 405 Fitting Instructions Manual – PDF DOWNLOAD

1 Cover 1
2 Bracket 2 85 x 245 x 97 1
3 Suction pipe D 80 x 1 5 x 756 1
4 Clamp 2
5 Hex bolt
M 8 x 45 DIN 931-8 8 4
Contact washer A 8 4
Hex nut M 8 DIN 934-8 4
6 Welded bracket 1
7 Welded bracket 1
8 Hex bolt
M 8 x 20 DIN 933-8 8 4
Contact washer A 8 4
Hex nut M 8 DIN 934-8 4
9 Suction trough 1
10 Mushroom headed bolt
M 8 x 20 CN 200152 4
Contact washer A 8 4
Hex nut M 8 DIN 934-8 4
11 Side plate 1
12 Hex bolt
M 10 x 65 DIN 931-8 8 1
Contact washer A 10 1
Shim D 10 5 x 22 x 3 6
13 Spacer D 22 x 4 5 x 28 1
14 Mushroom headed bolt
M 6 x 16 x 10 DIN 603-8 8 2
Contact washer B 6 2
Washer 10 5 x 22 x 3 2
Hex nut M 6 DIN 934-8 2
15 Rubber end 1
16 Pipe clamp
AS 80-100/12-C 7 DIN 3017 3
17 Union 1
18 Hex bolt
M 8 x 20 DIN 933-8 8 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2
19 Bracket 1
20 Hex bolt
M 10 x 35 DIN 933-8 8 2
Contact washer A 10 2
21 Screw-in elbow 1
22 Hex bolt
M 10 x 25 MK DIN 933-8 8 2
Contact washer A 10 2
23 Pulley 1
24 Drive belt 1
25 Fan 1
26 Hex bolt
M 12 x 100 DIN 931-8 8 1
Contact washer A 12 1
Washer 13 1
Shipping package Quantity
27 Tensioner 1
28 Hex nut
M 10 DIN 934-8 1
29 Spacer 1
30 Compression spring 1
31 Tube 1
32 Washer 1
33 Hex nut
M 10 DIN 934-8 1
34 Mushroom headed bolt
M 8 x 20 x 13 DIN 603-8 8 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2
35 Suction manifold 1
36 Pipe clamp
AS 130-150/12-C7 DIN 3017 1
37 Plastic pipe 1400 mm long 1
38 Tie wraps min 12 7 x 510 1
39 Support 1
40 Mushroom headed bolt
M 8 x 20 CN 200152 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2

CLAAS LEXION 480 LEXION 460 – 405 FITTING INSTRUCTIONS MANUAL – PDF DOWNLOAD:

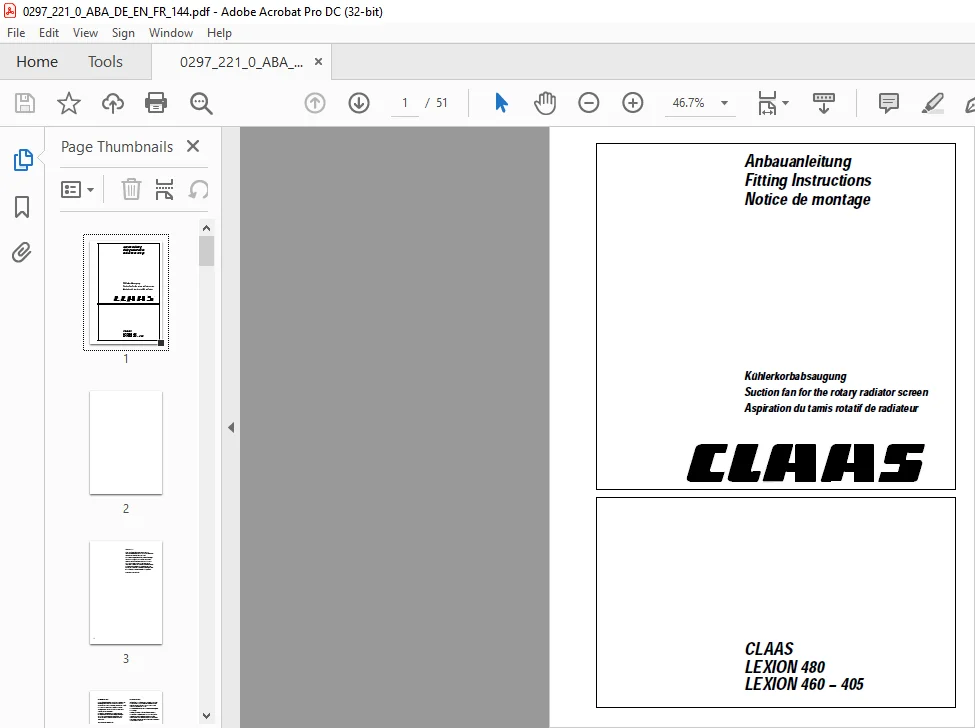

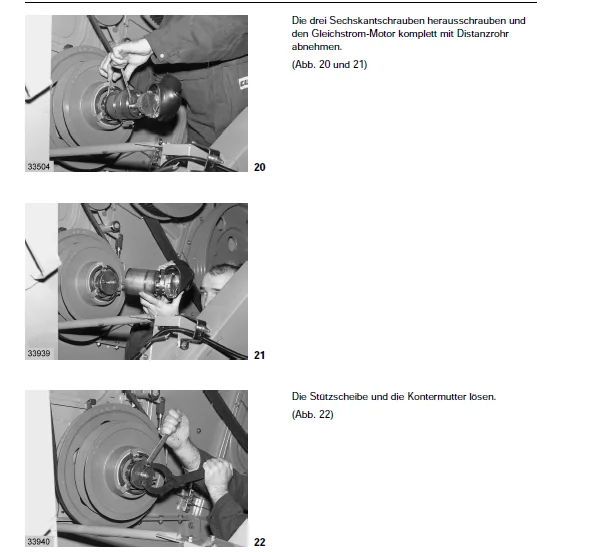

IMAGES PREVIEW OF THE MANUAL:
