DESCRIPTION:

CLAAS LEXION 480 LEXION 460-405 Preparation for the radio installation Fitting Instructions Manual _DE_EN_FR

INTRODUCTION

These fitting instructions show how to fit the radio to the CLAAS LEXION 480 and LEXION 460 – 405 combines. The shipping package list can be found on page 3. The items are numbered in the order of installation.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460-405 Preparation for the radio installation Fitting Instructions Manual _DE_EN_FR

1 Aerial 1
Aerial mast 1
Aerial base 1
Nut M 16 1
Bolt 17 1
2 Earth cable 25 qmm,
1450 long 1
3 Grommet C 10`18 x 30 x 15 1
4 Loud speaker cable 075 qmm,
2700 long 2
Tie wraps 35 x 142 5
5 Radio (optional extra) 1
6 Spring washer 5 1
7 Hex nut M 5 1
8 Loud speaker 2
9 Self tapper St 39 x 16C` `H 8
10 Captive nut D 42 x 18 x 16 8

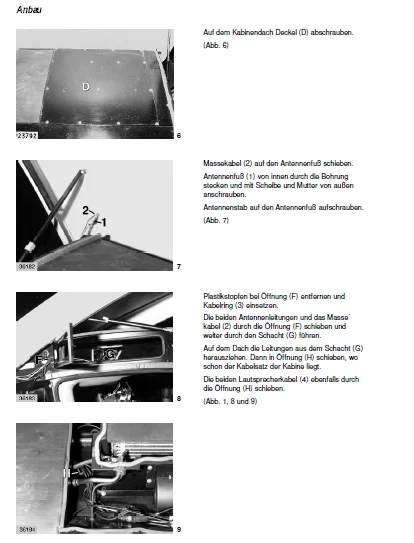

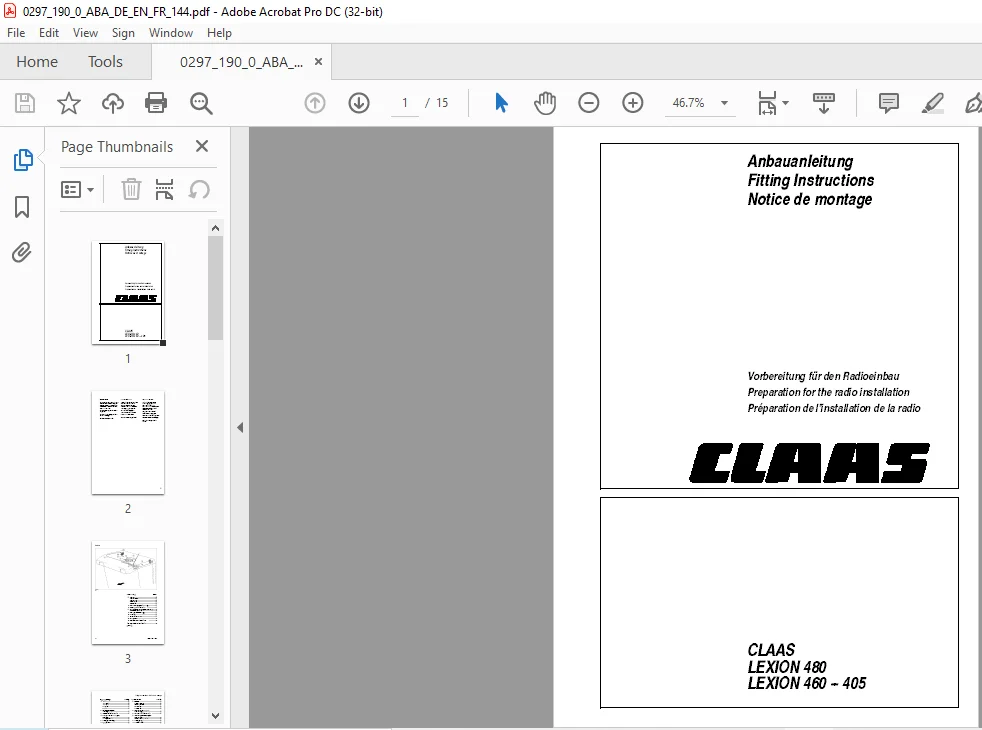

IMAGES PREVIEW OF THE MANUAL:
