DESCRIPTION:

CLAAS LEXION 480 LEXION 460 – 405 Rice to Grain Threshing Grain to Rice Threshing Conversion instructions Manual_DE_EN_FR

INTRODUCTION

These instructions show the conversion of the combine from grain threshing to rice threshing and vice-versa for the combines CLAAS LEXION 480 and CLAAS LEXION 460 —405. The shipping package is listed on page 8. The numbering corresponds to the sequence of installation. Each part is numbered. The definitions of the parts, e.g. of the bolts, can be found in the shipping package list. This list includes the sizes and number of bolts as well as the associated parts, such as nuts and contact washers. The torque settings for the bolts are listed on a separate sheet. The texts and figures have been kept as neutral as possible. Attention is drawn with notes in the text to differences between the various types.

TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 405 Rice to Grain Threshing Grain to Rice Threshing Conversion instructions Manual_DE_EN_FR

Torque settings 5
grain threshing equipment—
shipping package 8
Removing the grain threshing equipment 11
Remove the feeder housing 11
Removing the accelerator 17
Removing the returns elevator 27
Removing the threshing drum 35
Removing the concaves 43
Removing the impeller blades 49
Installing the rice threshing equipment 49
Installing the impeller blades 49
Installing the impeller finger rakes 51
Installing the rice concaves 51
Installing the spike-tooth drum 57
Adjusting the spike-tooth concave
(LEXION 460 —405) 91
Adjusting the spike-tooth concave
(LEXION 480) 93
Attaching the feeder housing 97
Removing axial rotors 101
Installing rice axial rotors 113
Attaching rice straw walker risers 117
Installing the grain threshing equipment 119
Removing the rice threshing equipment 119
Installing the grain threshing equipment 121
Adjusting the concave 131

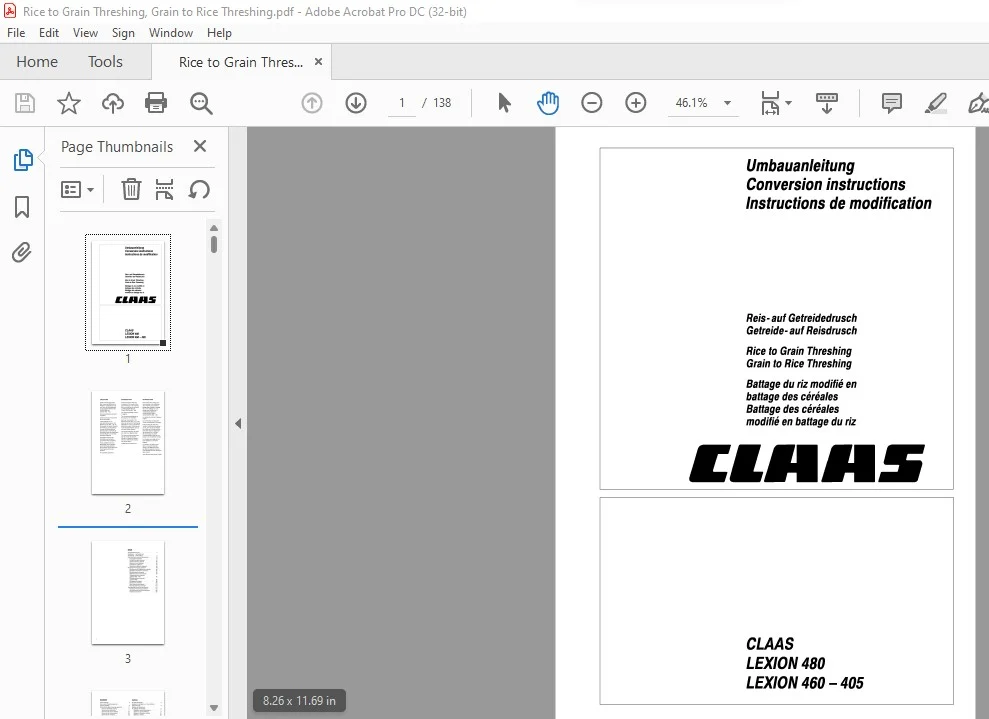

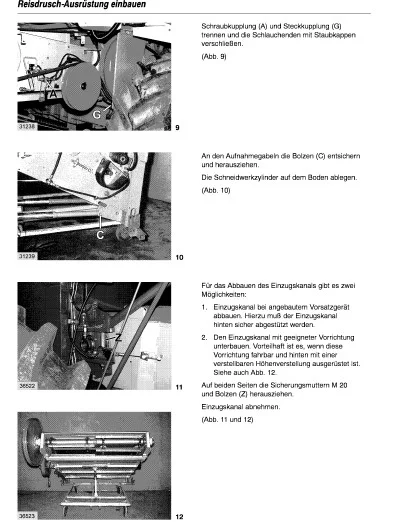

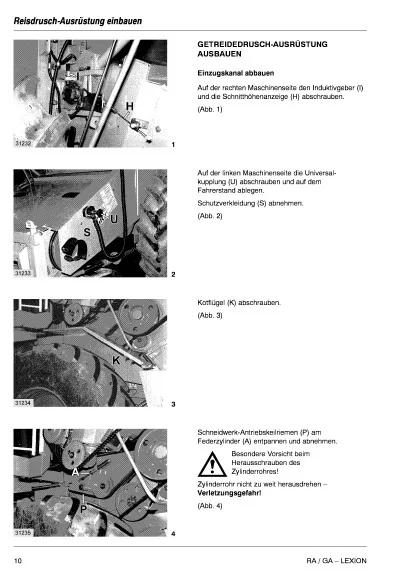

IMAGES PREVIEW OF THE MANUAL:
