CLAAS LEXION 480 LEXION 460 – 405 Schneidwerk 3.90 M – 9,00 M Cutterbar 3.90 M – 9.00 M Tablier de coupe 3,90 M – 9,00 M CLAAS-Auto-Contour FITTING INSTRUCTIONS Manual_DE_EN_FR

Description

CLAAS LEXION 480 LEXION 460 – 405 Schneidwerk 3.90 M – 9.00 M Cutterbar 3.90 M – 9.00 M Tablier de coupe 3.90 M – 9.00 M CLAAS-Auto-Contour FITTING INSTRUCTIONS Manual_DE_EN_FR

DESCRIPTION:

CLAAS LEXION 480 LEXION 460 – 405 Schneidwerk 3.90 M – 9.00 M Cutterbar 3.90 M – 9.00 M Tablier de coupe 3.90 M – 9.00 M CLAAS-Auto-Contour FITTING INSTRUCTIONS Manual_DE_EN_FR

INTRODUCTION

These fitting instructions show the installation of the Auto-Contour equipment to the CLAAS Combine Harvester LEXION 480, LEXION 460-405 and to the cutterbar 3,90-9,00 m. The shipping package is shown on page 4 and 21. Each part has a number. The part specification e.g. for bolts is also stated in the shipping package. The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 405 Schneidwerk 3.90 M – 9.00 M Cutterbar 3.90 M – 9.00 M Tablier de coupe 3.90 M – 9.00 M CLAAS-Auto-Contour FITTING INSTRUCTIONS Manual_DE_EN_FR

Shipping package Quantity
1 Hydraulic cylinder with interceptive pieces 2
Washer43x58x1 2
2 HexagonboItM16x14ODlN931-88 2
ContactwasherA 16 2
Washer17x42x1 1
3 Mountingbracket65x5x133 1
4 4l3wayvalveassembled 1
5 Hexagon boltM8x20 DIN 933-88 4
ContactwasherAB- 4
6 Tube pre-assembled8x1x2495 long 1
7 Tube pre-assembled8x1x2015long 1
8 Tubeholder8/8 1
9 BoltclampBSS2x18x25x3 1
10 Rubberbedding10/1O 1
11 HexagonboltM8x35DIN931-88 1
LocknutVM8 1
12 Tube pre-assembled
LEXION480—4408×1,5x1655long 1
LEXION430—4058×1,5x1730long 1
13 Tube pre—assembled
LEXION480—4408x1x935long 1
LEXION430—4058x1x1050long 1
14 Manifold block DIN 6, 2J2wayvalve 1
15 Tube pre-assembled8x1x345long 1
16 Bracket30x5x230 1
17 Mushroom head boltM8x20x13
DIN603-88 1
ContactwasherAB 1
HexagonnutMaD|N934-8 1
18 HexagonboItM6x50DlN933-88- 1
ContactwasherAS- 1
HexagonnutMGDIN984-8 1
19 DoubleclampB8 2
20 HexagonboltTaptfieM6x20 2
21 EIDOW UHIOI‘IS L 0 DIN 6332
onlyLEXlON430-405 2
22 SingleclampAB 1
23 HexagonboItTaptiteM6x20l 1
24 Hose1SN8N9ON550H– 1
25 Adjustable L—type unionL10 DIN 3954 1
26 Hose1SN8N90N550 1
27 Conical reducerKOR15/10-L-OMS 1
28 Adjustable L-type unionL15 DIN 3954 1
29 Toggleswitch512058 1
30 InsetswingingcutterbarH 1
31 Groundcontrolsticker 1
32 Hydrauliccircuitdiagram 1
(Fig1)

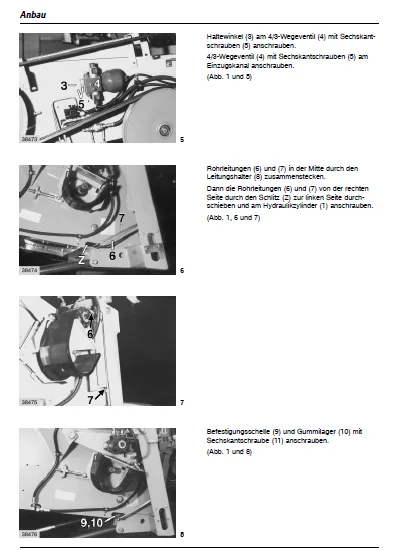

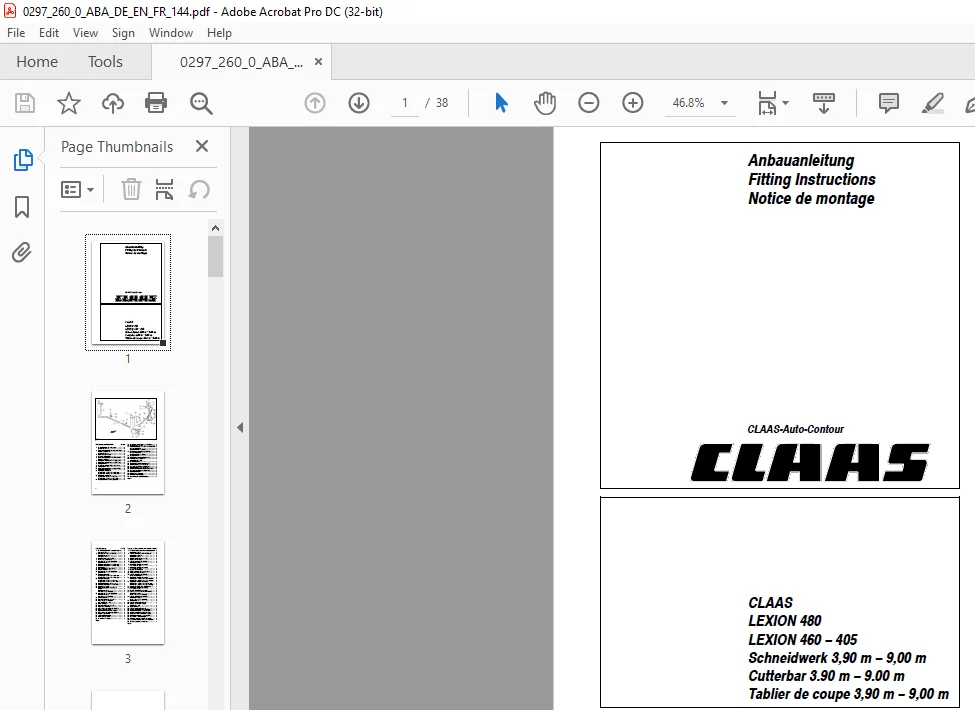

IMAGES PREVIEW OF THE MANUAL:
