DESCRIPTION:

CLAAS LEXION 480 LEXION 460 – 405 Suction fan for the rotary radiator screen FITTING INSTRUCTIONS Manual_DE_EN_FR

INTRODUCTION

These fitting instructions explain the procedure for installing the suction fan for the rotary radiator screen on the LEXION 480 and LEXION 460 – 405. The numbers refer to the quantities required. On page 6 can be found the list of components required for the conversion. To identify a component, e.g. a bolt, look up its relevant number in the »shipping package«, where the dimensions and quantities as well as the respective nuts and contact washers are shown.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 405 Suction fan for the rotary radiator screen FITTING INSTRUCTIONS Manual_DE_EN_FR

Shipping package Quantity
27 Tensioner 1
28 Hex nut
M 10 DIN 934-8 1
29 Spacer 1
30 Compression spring 1
31 Tube 1
32 Washer 1
33 Hex nut
M 10 DIN 934-8 1
34 Mushroom headed bolt
M 8 x 20 x 13 DIN 603-88 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2
35 Suction manifold 1
36 Pipe clamp
AS 130-150/12-C7 DIN 3017 1
37 Plastic pipe 1400 mm long 1
38 Tie wraps min127 x 510 1
39 Support 1
40 Mushroom headed bolt
M 8 x 20 CN 200152 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2
(Fig 1)
IMAGES PREVIEW OF THE MANUAL:

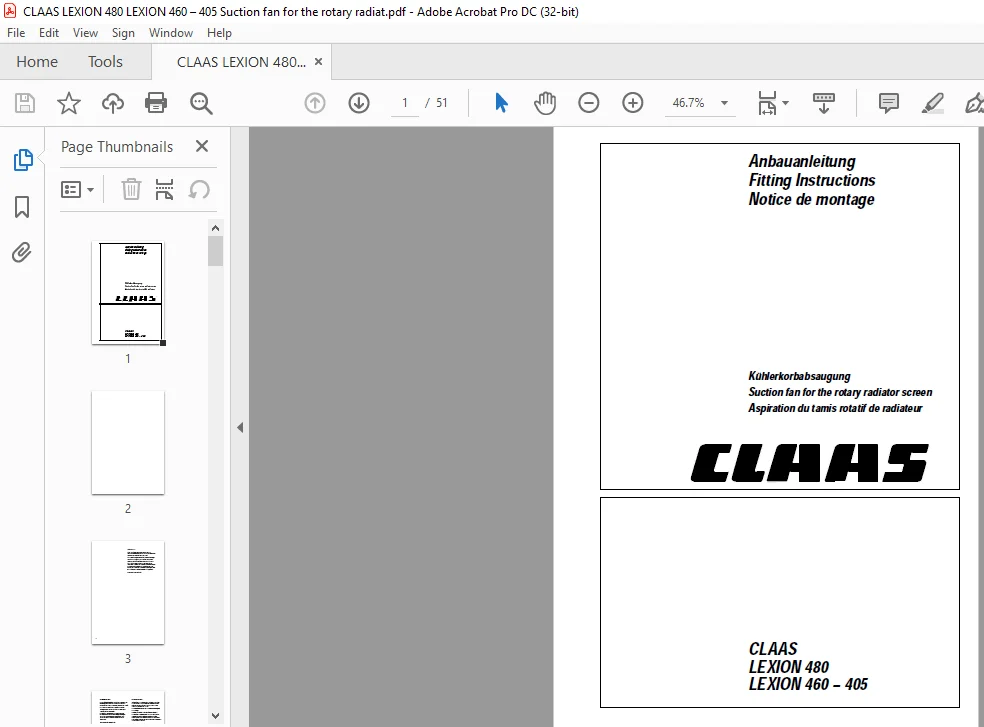

CLAAS LEXION 480 LEXION 460 – 405 SUCTION FAN FOR THE ROTARY RADIATOR SCREEN FITTING INSTRUCTIONS MANUAL_DE_EN_FR:
