CLAAS LEXION 480 LEXION 460 – 415 CLAAS Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR

Description

CLAAS LEXION 480 LEXION 460 – 415 CLAAS Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS LEXION 480 LEXION 460 – 415 CLAAS Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR

INTRODUCTION

This manual is intended to show you how to fit the cutterbar variable speed drive to CLAAS LEXION 480 and LEXION 460 – 415 combineharvesters. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXION 460 – 415 CLAAS Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR

1 Impeller assembled
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
2 Bearing assembly D 60
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
3 Tapered ring D 71 x 18
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
4 Parallel key A18 x 11 x 40
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
5 V-belt pulley D 313 (2 x 17)
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
6 Spacer ring 501 x 761 x 10 1
7 Drive package, assembled 1
8 Thrust washer 1
9 Detent edged ring VsKz 16 1
10 Hex socket head cap screw M 16 x 70 DIN 912-88 1
11 Piston holder 1
12 Variable speed drive cylinder, complete 1
13 Countersunk head bolt M12 x 165 3
14 Grease tube 1
15 Grease nipple DIN 71412 AS 6 x 1 1
16 Variable speed gear bracket 1
17 Hexagon head bolt M 12 x 45 DIN 933-88 2
18 Bearing assembly 1
19 Hexagon head bolt M 16 x 45 DIN 933-88 4
Contact washer A 16 4
20 Male connector DIN 3900 L 14 m 1
21 Grease nipple DIN 71412 Am 8 x 1 1
22 Lubrication line 1
23 Friction washer 1
24 Parallel key DIN 6885 A 12 x 8 x 98 1
25 Output package
26 Thrust assembled 1
27 Hexagon head bolt M 16 x 50 DIN 933-88 1
Contact washer A 16 1
28 Clamping washer D 55 x 10 1
29 Guide roller, pre-assembled 1
30 Washer
31 Hexagon head bolt M 16 x 100 DIN 931-88 1
32 V-belt 2
33 Wide section V-belt 1
34 Valve insert 1
35 Seal ring 2
36 Solenoid 3 mm 12 V 60% 1
37 Valve insert 1
38 Solenoid 3 mm 12 V 60% Spring 1
39 Restrictor assembled 1
40 Hydraulic hose 1SN6 N 45N 1300 1
41 Cable strap 7,6 x 282 3

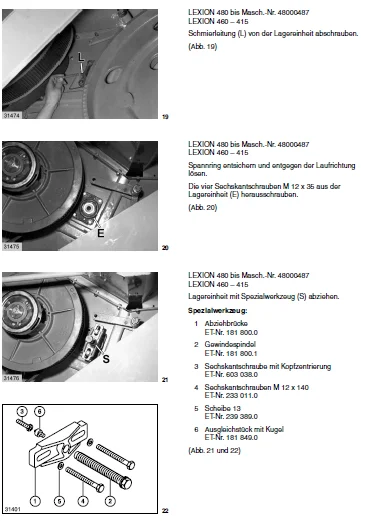

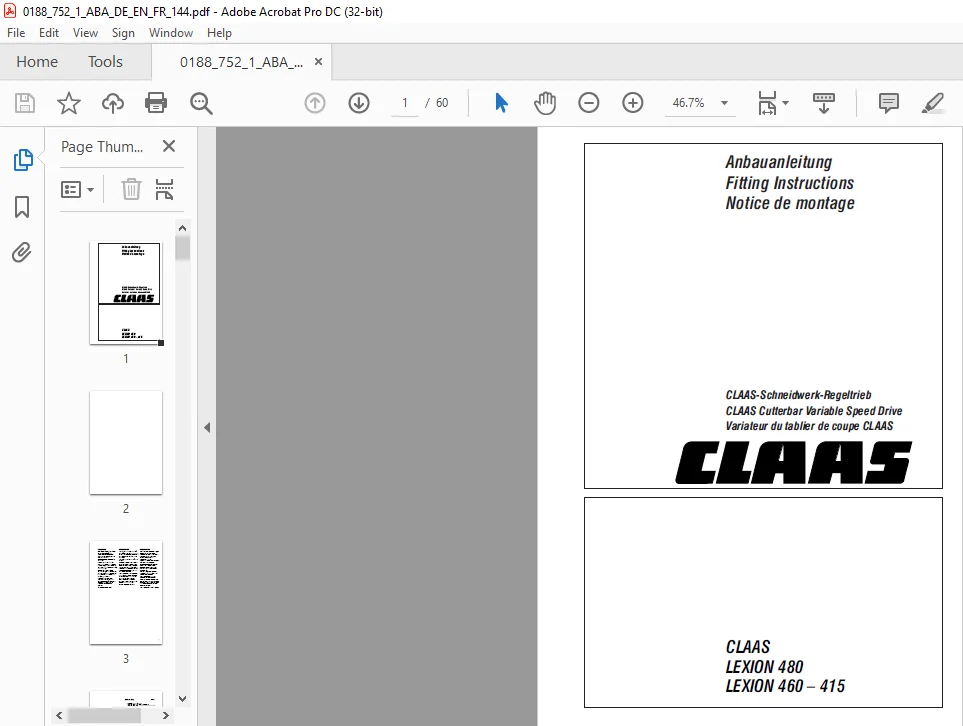

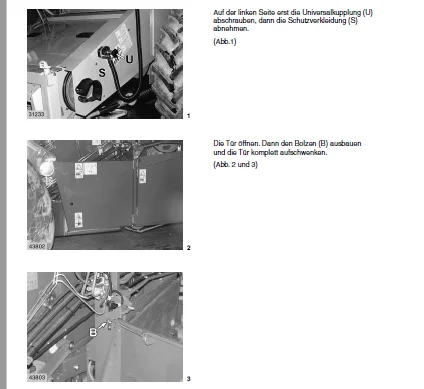

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 480 LEXION 460 – 415 CLAAS CUTTERBAR VARIABLE SPEED DRIVE FITTING INSTRUCTIONS MANUAL_DE_EN_FR:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
