CLAAS LEXION 480 LEXON 460 – 405 CLAAS-Straw spreader Fitting Instructions Manual _DE_EN_FR – PDF DOWNLOAD

Description

CLAAS LEXION 480 LEXON 460 – 405 CLAAS-Straw spreader Fitting Instructions Manual _DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 LEXON 460 – 405 CLAAS-Straw spreader Fitting Instructions Manual _DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

1 These fitting instructions explain the procedure for installing the straw spreader on the LEXION 480 and LEXION 460 – 405. The numbers refer to the quantities required. On page 5 can be found the list of components required for the conversion. Each major component is identified with a number. Each major component such as a bolt should be checked against the list of supplied components in order to determine quantity and relative components such as nuts and washers. The text and pictures are as accurate as possible. To deter­ mine the difference between different types of components, then please refer to the text description.
TABLE OF CONTENTS:

CLAAS LEXION 480 LEXON 460 – 405 CLAAS-Straw spreader Fitting Instructions Manual _DE_EN_FR – PDF DOWNLOAD

Drive for straw spreader:
1 Drive belt 1
2 Hydraulic pump 1
3 Hex bolt
M 29 x 80 DIN 931-88 1
Lock nut VM 20 1
4 Hex bolt
M 10 x 25 DIN 933-88 1
Contact washer A 10 1
5 Bracket 1
6 Hex bolt
M 6 x 35 DIN 931-88 2
Hex nut M 6 2
Contact washer A 6 2
7 Flow control valve 1
8 Hex bolt
M 8 x 20 DIN 933-88 3
Hex nut M 8 3
ontact washer A 8 3
9 Male connector 3
10 Elbow 1
11 L connector 1
12 Hydraulic tap 1
13 Hydraulic line 1450 mm 1
14 Hydraulic pipe 3650 mm 1
15 Pipe clamp 25-40 / 12-C? 2
16 Tube clamp RSGU 138 / 25 1
17 Hex bolt
M 8 x 20 DIN 933-88 2
Hex nut M 8 2
Contact washer A 8 2
18 Male connector 1
19 Hydraulic pipe 3400 mm 1
20 Tube clamp RSGU 128 / 20 1
21 Angle bracket 1
22 Rubber bearing 22 / 22 1
23 Fixing clamp 1
24 Hex bolt
M 8 x 55 DIN 933-88 1
Lock nut VM 8 1
25 Hydraulic pipe 800 mm 1

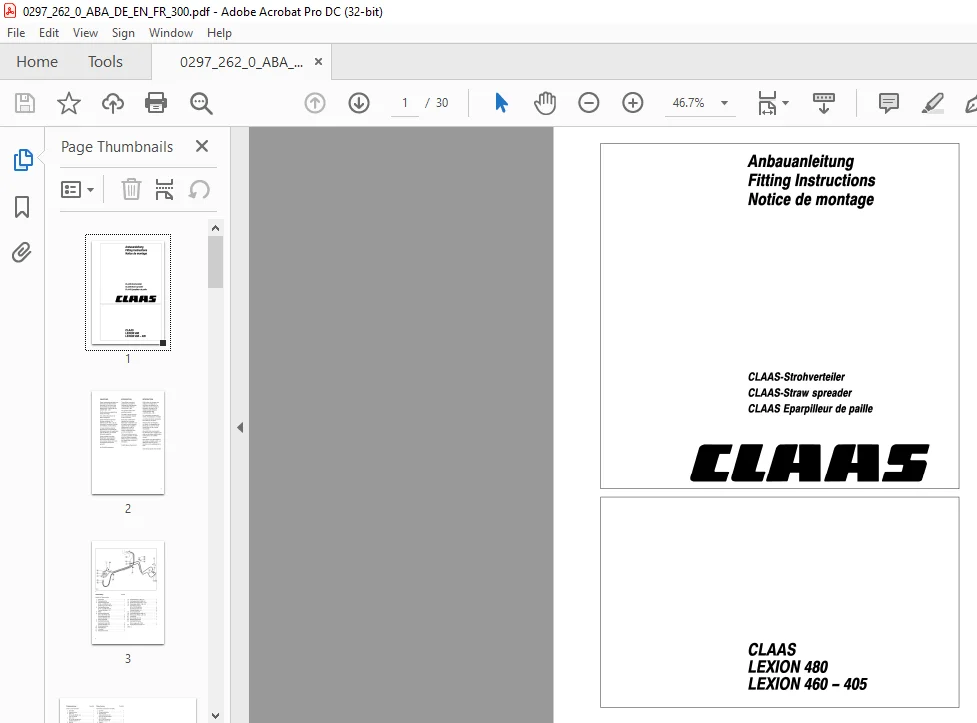

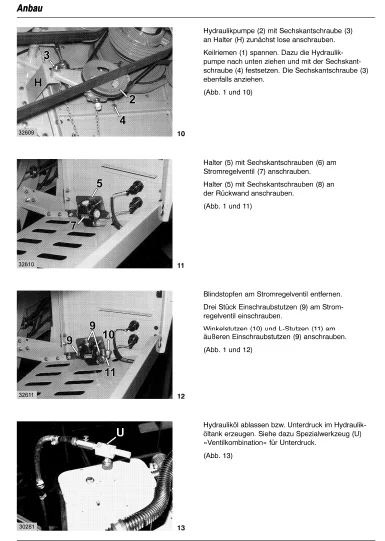

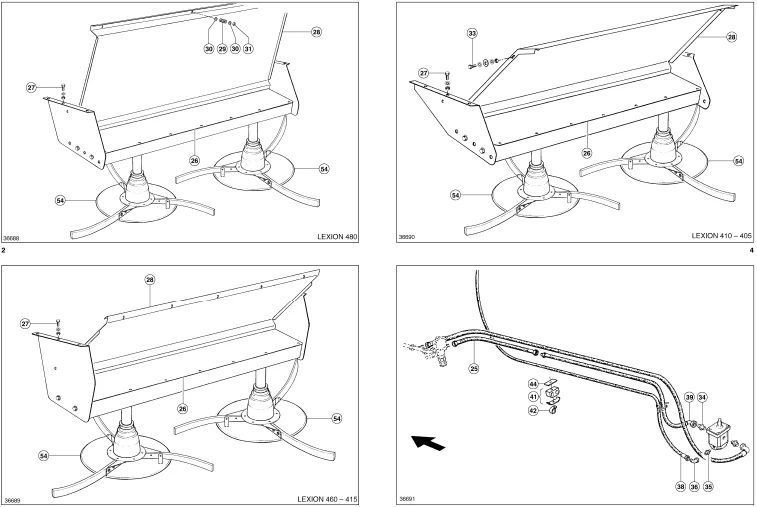

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 480 LEXON 460 – 405 CLAAS-STRAW SPREADER FITTING INSTRUCTIONS MANUAL _DE_EN_FR – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
