CLAAS LEXION 480 Transition Pan Drive Conversion Instruction Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS LEXION 480 Transition Pan Drive Conversion Instruction Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 Transition Pan Drive Conversion Instruction Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

• These instructions describe the safe and timesaving work sequence for conversion of the transition pan drive.
• Benefit of the transition pan drive: Due to the longer stroke of the transition pan, the harvested crop is conveyed better to the uni-spreader even when driving downhill and in wet harvest conditions. Also the sieve frame is relieved.
• Retrofitting of the LEXION 480 combine harvesters, with the conversion kit part no. 174 964.1, is possible from the following machine number ranges: starting from 46600862, starting from 46800011, starting from 54600011, and starting from 54800011.
• The standard mounting time is approx. 9 man hours.

3 General
information
IMPORTANT

• The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.
• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.
• In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number). Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
• Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel.

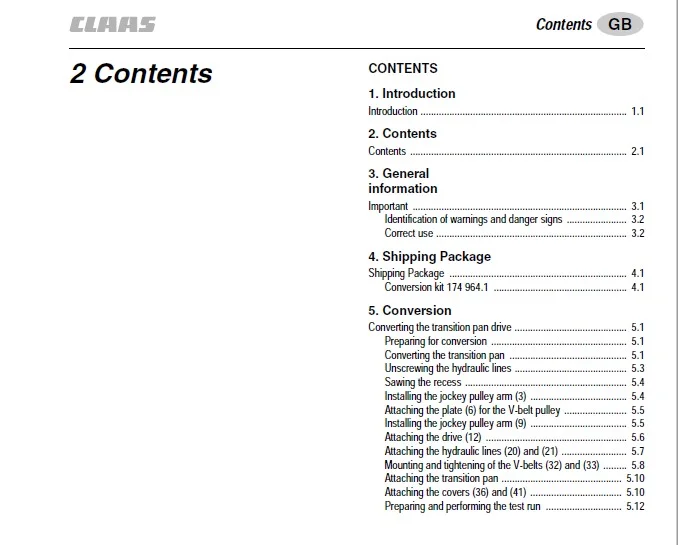

TABLE OF CONTENTS:

CLAAS LEXION 480 Transition Pan Drive Conversion Instruction Manual_DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Conversion kit 174 9641 41
5 Conversion
Converting the transition pan drive 51
Preparing for conversion 51
Converting the transition pan 51
Unscrewing the hydraulic lines 53
Sawing the recess 54
Installing the jockey pulley arm (3) 54
Attaching the plate (6) for the V-belt pulley 55
Installing the jockey pulley arm (9) 55
Attaching the drive (12) 56
Attaching the hydraulic lines (20) and (21) 57
Mounting and tightening of the V-belts (32) and (33) 58
Attaching the transition pan 510
Attaching the covers (36) and (41) 510
Preparing and performing the test run 512

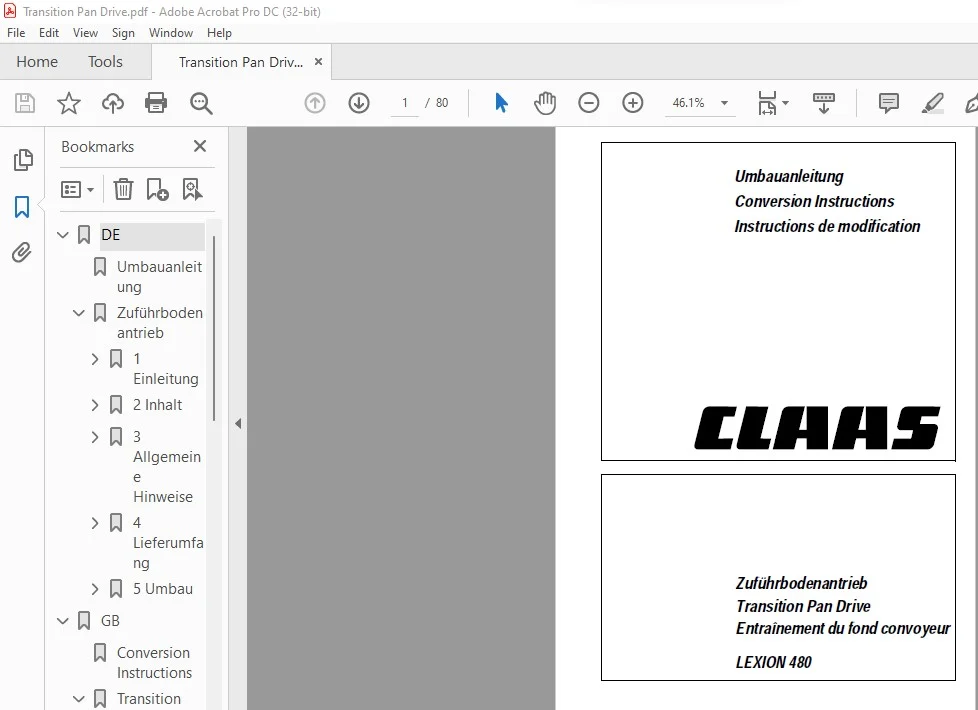

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 480 TRANSITION PAN DRIVE CONVERSION INSTRUCTION MANUAL_DE_EN_FR – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
