CLAAS LEXION 485-405 JAGUAR 900-830 MEDION 340-310 Air conditioning box Conversion instruction Manual

Description

CLAAS LEXION 485-405 JAGUAR 900-830 MEDION 340-310 Air conditioning box Conversion instruction Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 485-405 JAGUAR 900-830 MEDION 340-310 Air conditioning box Conversion instruction Manual

INTRODUCTION
These conversion instructions explain the modification of the air conditioning box, parts number 174 845.1, for the following machine types:

Combine harvester LEXION 485 – 405,
Combine harvester MEDION 340 – 310,
Forage harvester JAGUAR 900 – 830.

• The service time schedule for the modification is approx. 4,00 h. The shipping package is shown on page 5.1. Each part has a number. The part specification e.g. for bolts is also stated in the “shipping package”.
• The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

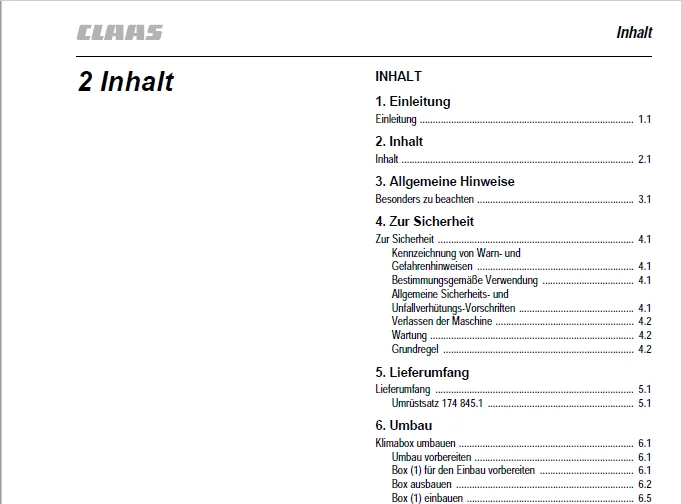

TABLE OF CONTENTS:

CLAAS LEXION 485-405 JAGUAR 900-830 MEDION 340-310 Air conditioning box Conversion instruction Manual

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General information
Important 3 1
4 Safety rules
Safety rules 4 1
Identification of warning and danger signs 4 1
Correct use of combine 4 1
General safety and
accident prevention regulations 4 1
Leaving the machine 4 2
Service 4 2
Basic rule 4 2
5 Shipping Package
Shipping Package 5 1
Converting Kit 174 845 1 5 1
6 Conversion
Converting the Air conditioning box 6 1
Preparing the conversion 6 1
Preparing the box (1) for installation 6 1
Removing the box 6 2
Fitting the box (1) 6 5

CLAAS LEXION 485-405 JAGUAR 900-830 MEDION 340-310 AIR CONDITIONING BOX CONVERSION INSTRUCTION MANUAL:

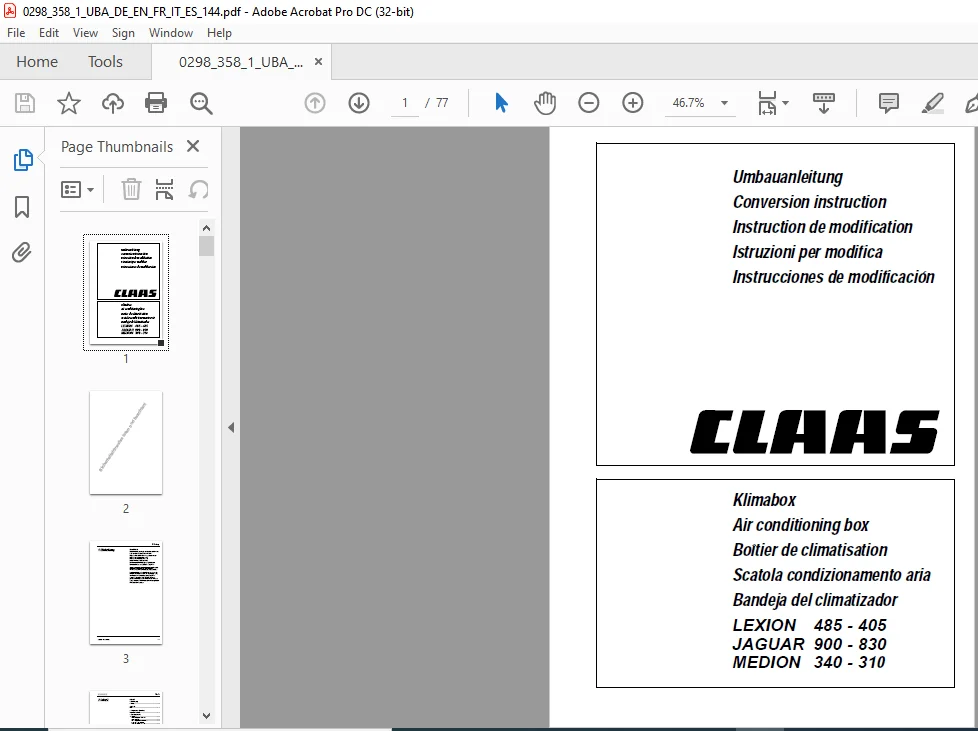

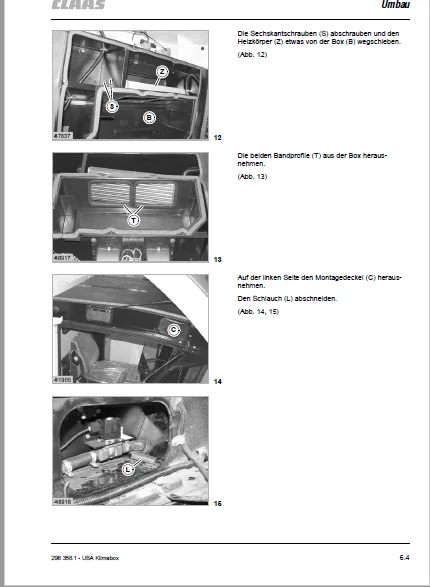

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
