CLAAS LEXION 560 – 510 Maize Straw Chopper Conversion instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 560 – 510 Maize Straw Chopper Conversion instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

INTRODUCTION

This instruction manual is valid for the CLAAS LEXION 560 โ€“ 510 combine harvester. This instruction manual shows you how to mechanically convert the straw chopper for use with corn. The appropriate combine harvester operation manual should be used for operating the machine. See page 4.1 for the shipping package. The instructions under โ€œSafety adviceโ€ from the current instruction manual must be observed.

TABLE OF CONTENTS:

CLAAS LEXION 560 – 510 Maize Straw Chopper Conversion instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General Information
Important information 3 1
Identification of Warning and Danger Signs 3 2
Correct Use 3 2
4 Scope of Delivery
Scope of Delivery 4 1
Scope of Delivery Rubber Blanket 4 1
Scope of Delivery Free Swinging Knives 4 2
5 Conversion Instructions Maize
Straw Chopper
Straw chopper
(LEXION 560 – 510) 5 1
Fitting the Rubber Blanket to the Straw Chopper 5 1
Removing the Rubber Blanket from the Straw Chopper 5 3
Straw Chopper Settings
(LEXION 560 – 510) 5 4
Adjusting the Cross Blade 5 5
Adjusting Knife Carriers 5 6
Removing each Counter Knife 5 6
Removing every second Counter Knife 5 6
Changing the Free Swinging Knives 5 7
Attaching the Free Swinging Knives (Corn)
(LEXION 560 – 510) 5 7
Stick on the Decals for the Tightening Torque for the
Free Swinging Knives 5 7
Mounting the Free Swinging Knives for Grain
(LEXION 560 – 510) 5 7
Adjusting the Rasp Bar
(ancillary equipment) 5 8

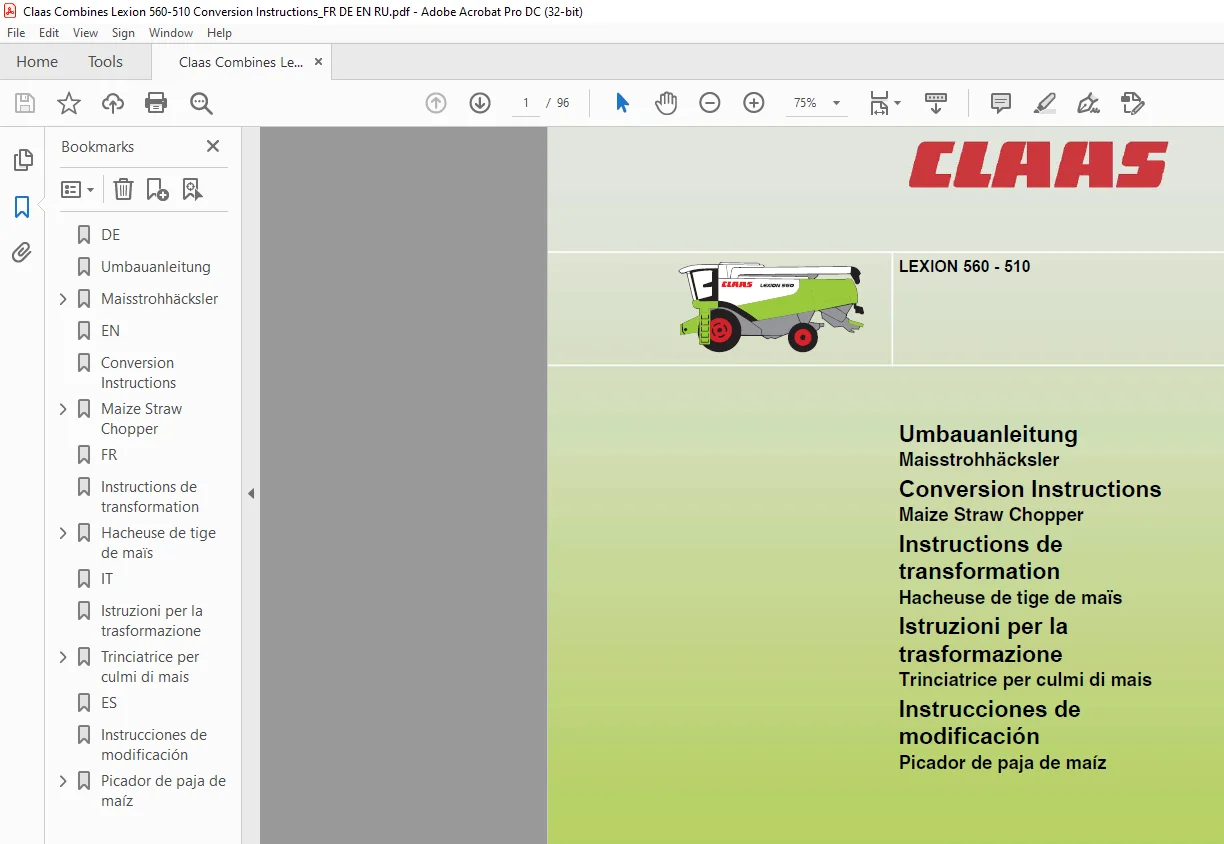

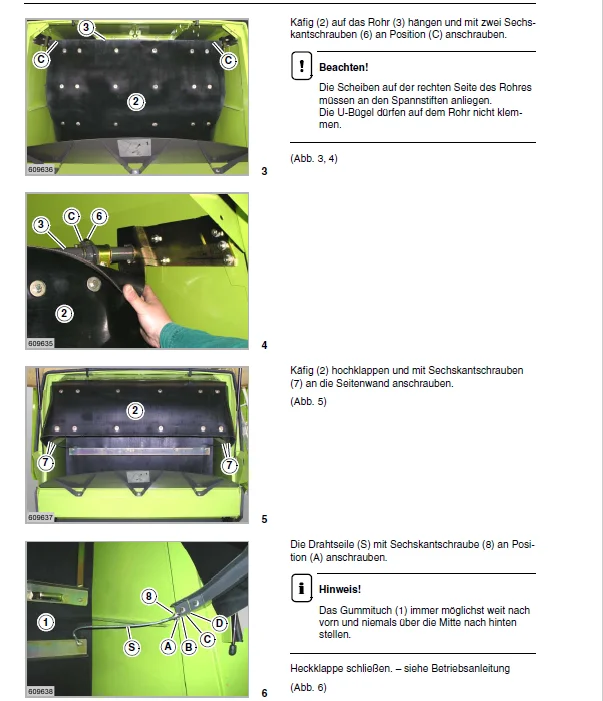

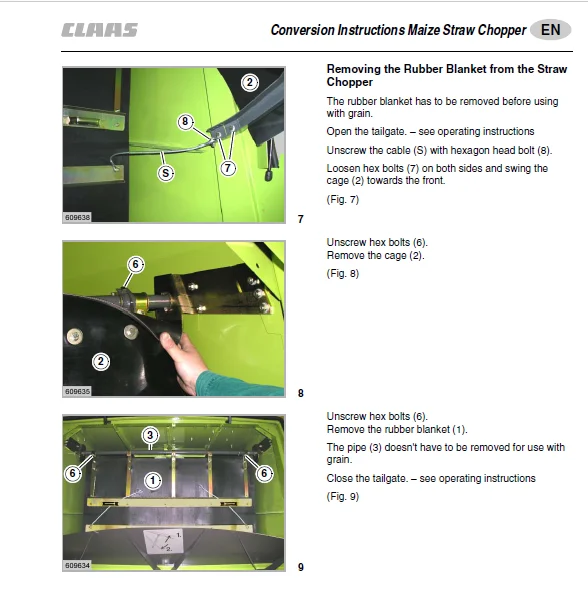

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 560 – 510 MAIZE STRAW CHOPPER CONVERSION INSTRUCTIONS MANUAL_DE_EN_FR_IT_ES – PDF DOWNLOAD:

PLEASE NOTE:

  • This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
  • You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
  • Need any other service / repair / parts manual, please feel free to contactย [email protected]ย . We still have 50,000 manuals unlisted
