CLAAS LEXION 580 – 510 Front Attachment Quick Stop FITTING INSTRUCTIONS Manual_DE_EN_FR

Description

CLAAS LEXION 580 – 510 Front Attachment Quick Stop FITTING INSTRUCTIONS Manual_DE_EN_FR

DESCRIPTION:

CLAAS LEXION 580 – 510 Front Attachment Quick Stop FITTING INSTRUCTIONS Manual_DE_EN_FR

Introduction
1.1 General Information
1.1.1 How to use this manual

This manual shows you how to assembly the parts listed in the Package List section. In the following chapters, the cutterbar is referred to as a front attachment. The combine harvester / forage harvester is referred to as the machine. Text and pictures are kept neutral if possible. Differences are indicated using picture headings or text notes. In the assembly descriptions, for better clarification, existing parts are designated using letters and new parts are designated using numbers. Directions such as front, back, right and left are always relative to the direction of travel. Technical data, dimensions and weights are given as an indication only. We reserve the right to make changes in response to technical development and errors.

Safety precautions
2.1 Important
2.1.1 Operational safety

In order to avert danger, the instructions in this manual must be read and heeded by all persons who carry out or check this assembly. In particular, read the “Safety Rules” sections in the Operator’s Manual of the machine and of the front attachment. The use of spare parts, accessories and auxiliary equipment that are not original CLAAS products and have not specifically been tested and approved by CLAAS, can change the specified design characteristics of the CLAAS combine or detract from its functional performance, with a possible adverse effect on the active and/or passive operational safety and on its occupational safety standards (accident prevention). CLAAS is in no way liable for any damage or personal injury caused as a result of the use of other than original or approved CLAAS parts, accessories and auxiliary equipment

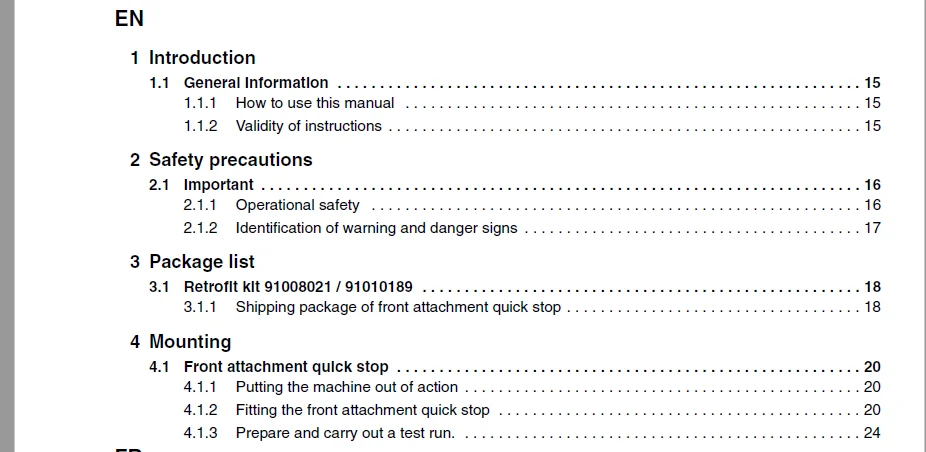

TABLE OF CONTENTS:

CLAAS LEXION 580 – 510 Front Attachment Quick Stop FITTING INSTRUCTIONS Manual_DE_EN_FR

1 Introduction
11 General Information 15
111 How to use this manual 15
112 Validity of instructions 15
2 Safety precautions
21 Important 16
211 Operational safety 16
212 Identification of warning and danger signs 17
3 Package list
31 Retrofit kit 91008021 / 91010189 18
311 Shipping package of front attachment quick stop 18
4 Mounting
41 Front attachment quick stop 20
411 Putting the machine out of action 20
412 Fitting the front attachment quick stop 20
413 Prepare and carry out a test run 24

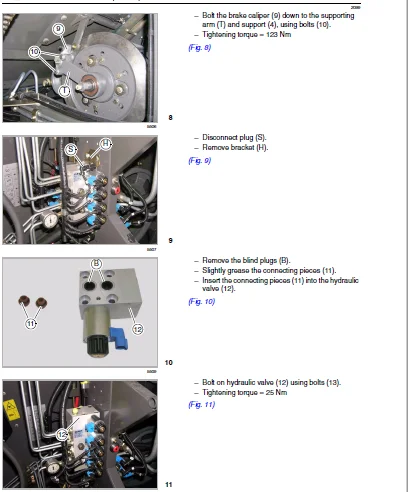

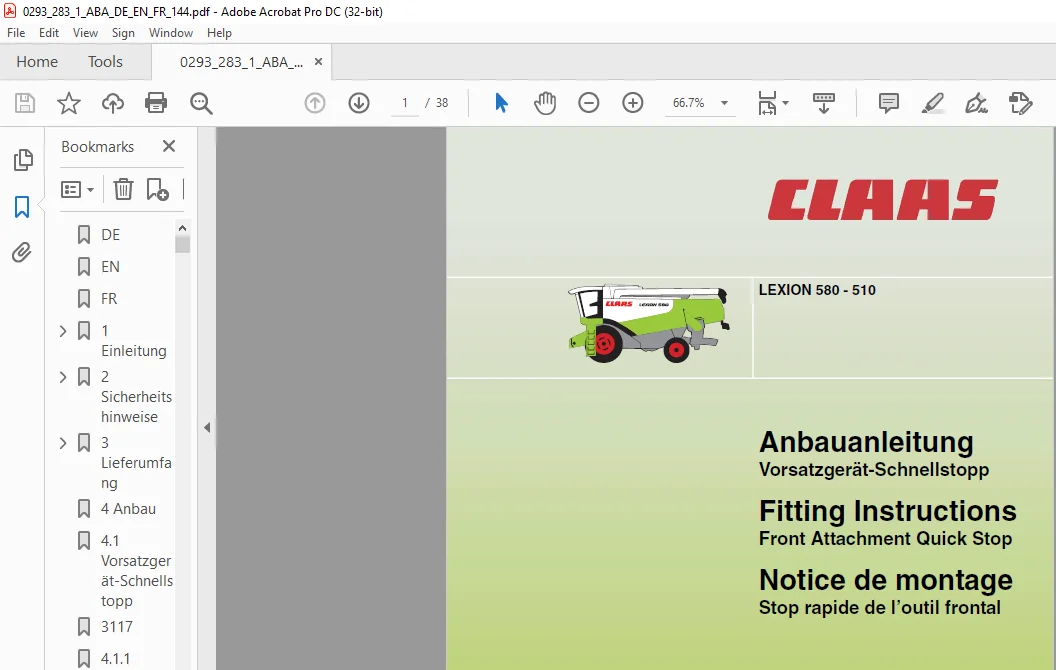

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 580 – 510 FRONT ATTACHMENT QUICK STOP FITTING INSTRUCTIONS MANUAL_DE_EN_FR:
