CLAAS LEXION 580 570 LEXION 560 550 LEXION 540 530 520 510 Autopilot Fitting Instructions Manual

Description

CLAAS LEXION 580 570 LEXION 560 550 LEXION 540 530 520 510 Autopilot Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 580 570 LEXION 560 550 LEXION 540 530 520 510 Autopilot Fitting Instructions Manual – PDF DOWNLOAD

General Information
IMPORTANT INFORMATION :
The instructions contained in this manual should be read carefully and observed by all persons who are concerned with the operation, maintenance and inspection of this machine in order to prevent accidents.The “Safety Rules” in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. Before starting work, make sure that you have all necessary tools and materials. Compare existing machine type/front attachment type with the list in the chapter “Shipping Package” and the parts kit supplied.
• The specification of the components, e.g. bolts, is shown on the shipping package. Every part listed here has a Part Number. Parts such as nuts and contact washers do not have part numbers.
• These parts are listed under the part number for the screws with which they are fitted. Additional part specifications are the parts no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLAAS LEXION 580 570 LEXION 560 550 LEXION 540 530 520 510 Autopilot Fitting Instructions Manual – PDF DOWNLOAD

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General Information
Important information 3 1
Identification of warning and danger signs 3 2
Correct use 3 2

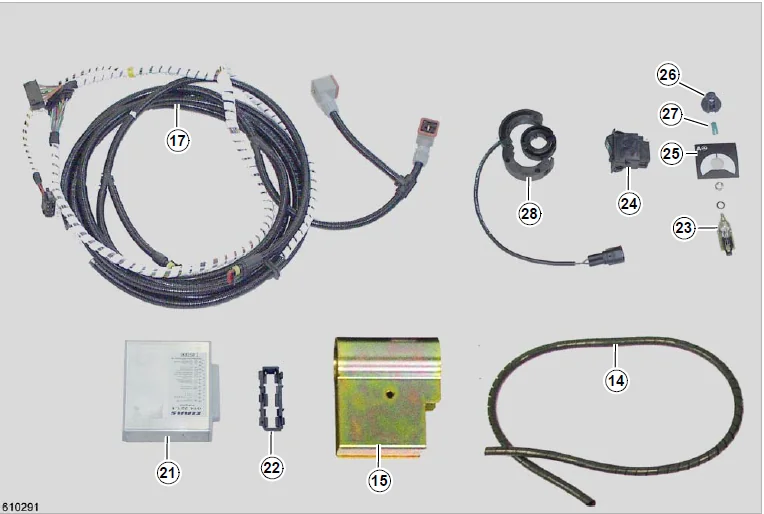

4 Shipping Package
Shipping Package 4 1
Supplementary Kit 4 1
5 Installation
Installing the Autopilot 5 1
Preparing the installation 5 1
Installing the Autopilot valve (1) 5 1
Installing the steering cylinder (12) with the
wiring loom (13) 5 4
Routing and connecting the Autopilot wiring loom (17) 5 5
Installing and connecting the module (21) in
the central terminal compartment 5 8
Fitting the nominal value sender (23) and the
rocker switch (24) 5 9
Installing the overrider switch (28) 5 10
Preparing and performing the test run 5 11

CLAAS LEXION 580 570 LEXION 560 550 LEXION 540 530 520 510 AUTOPILOT FITTING INSTRUCTIONS MANUAL:

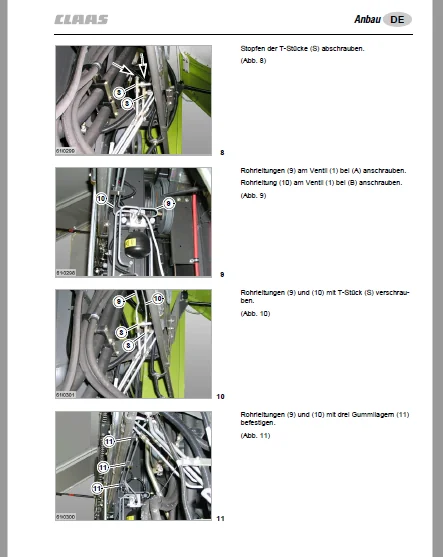

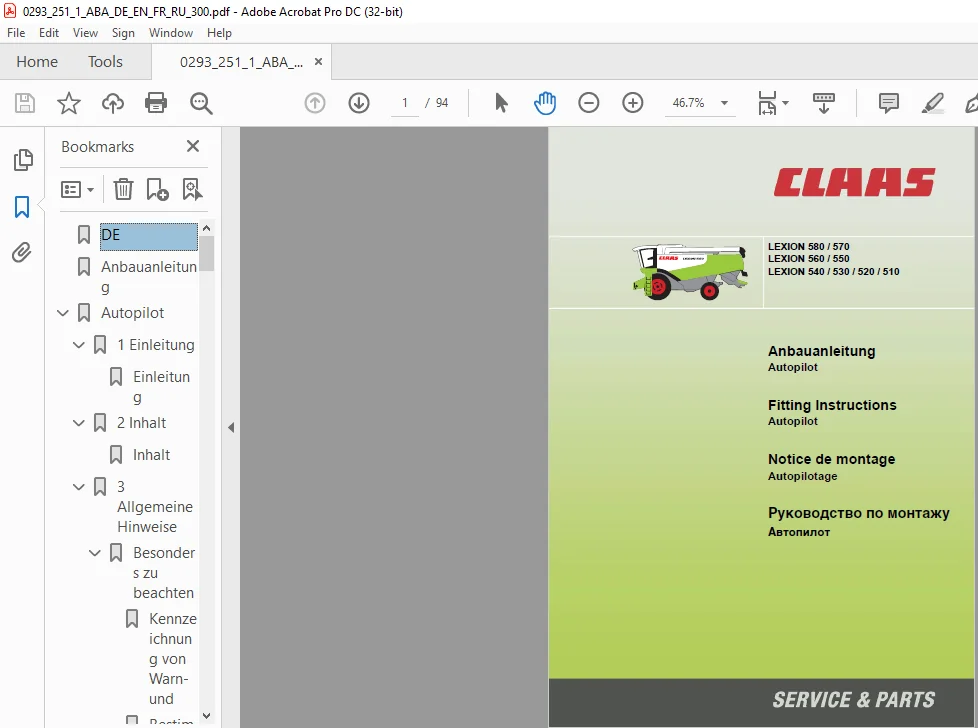

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
