CLAAS LEXION Autopilote CLAAS Fitting Instructions Manual – PDF DOWNLOAD
$78.00 Original price was: $78.00.$19.95Current price is: $19.95.
CLAAS LEXION Autopilote CLAAS Fitting Instructions Manual – PDF DOWNLOAD
Description
CLAAS LEXION Autopilote CLAAS Fitting Instructions Manual – PDF DOWNLOAD
DESCRIPTION:
CLAAS LEXION Autopilote CLAAS Fitting Instructions Manual – PDF DOWNLOAD
INTRODUCTION This manual is intended to provide information on the installation of the Autopilot to the range of CLAAS LEXION combines. The parts are numbered in the order in which they are to be assembled. The shipping package is shown on page 5. Installation of the Autopilot to front attachments is covered by an extra manual. CLAAS Service Department
TABLE OF CONTENTS:
CLAAS LEXION Autopilote CLAAS Fitting Instructions Manual – PDF DOWNLOAD
1 Angle bracket 1
2 Hexagonal bolt M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
3 4/3-way directional control valve 1
4 Elbow 2
5 Hydraulic hose 1300 mm long 1
6 Hydraulic hose 1300 mm long 1
7 Hydraulic hose 900 mm long 1
8 Hydraulic hose 800 mm long 1
9 Hexagonal bolt M 8 x 16 DIN 933-88 2
Contact washer 2
10 T-piece 2
11 Reducer 2
12 T-piece 1
13 T-piece 1
14 Reducer 1
15 Reducer 1
16 Angle bracket 1
17 Hexagonal bolt M 8 x 20 DIN 933-88 1
Hexagonal nut M 8 1
Contact washer A 8 1
18 Rubber damper 2
Mounting bracket 2
19 Hexagonal bolt M 8 x 45 DIN 931-88 2
Self-locking nut VM 8 2
20 Cable strap 76 x 290 1
21 Wiring loom 1
22 Cable strap 150 x 36 4
23 Hose clamp 1
24 Module 1
Bracket 1
25 Foot-operated switch 1
26 Spacer tube 2
27 Hexagonal bolt M 6 x 45 DIN 931-88 2
Washer 64 2
28 Contact switch for operatorβs seat
with pneumatic adjustment 1
Contact switch for operatorβs seat
with mechanical adjustment 1
29 Centralizing switch 1
30 Rocker switch 1
31 Bulb 1
32 Lock collar 1
33 Overrider switch 1
34 Back-up washer 1
35 Steering cylinder 1
36 Wiring loom 1
37 Spiral hose 1

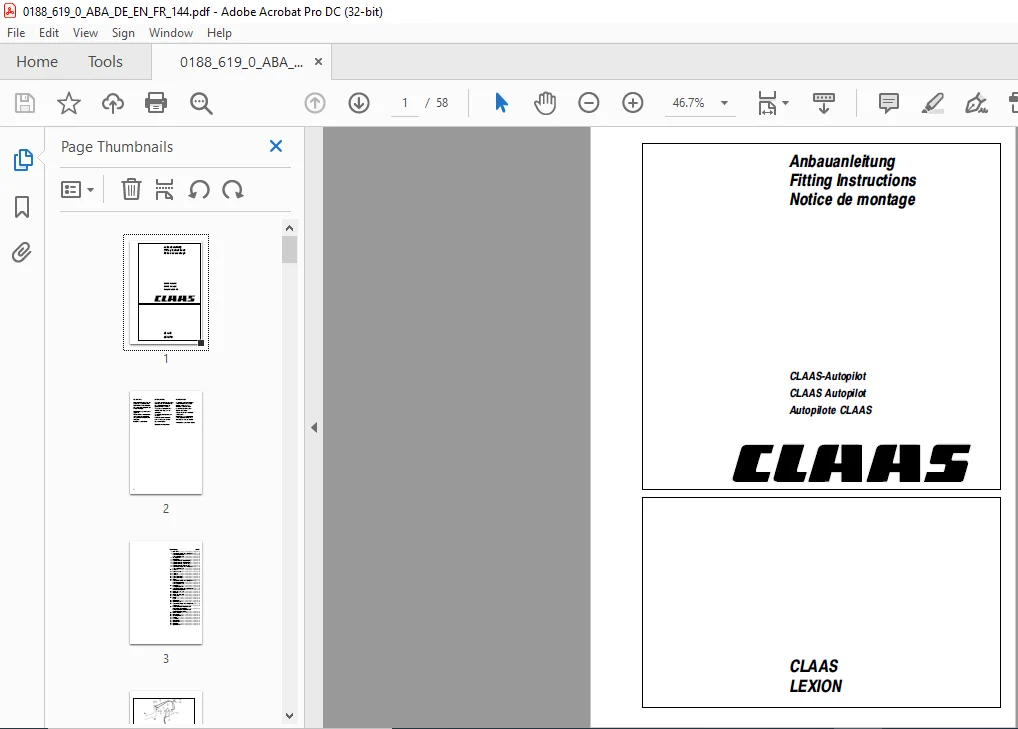

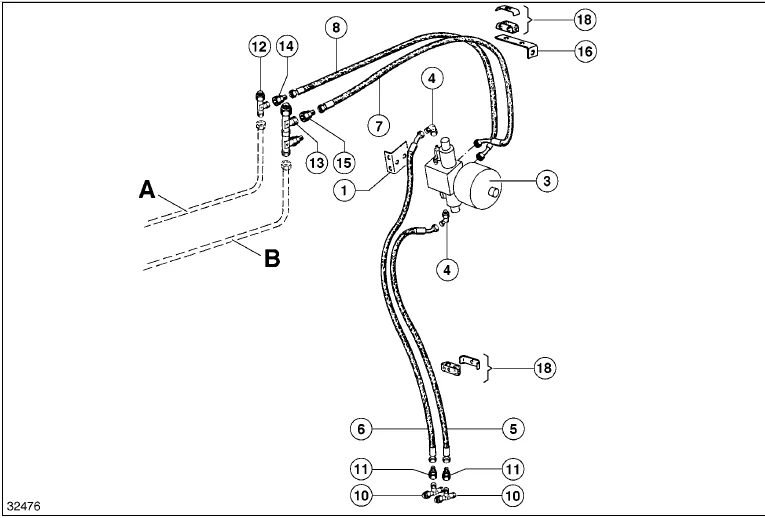

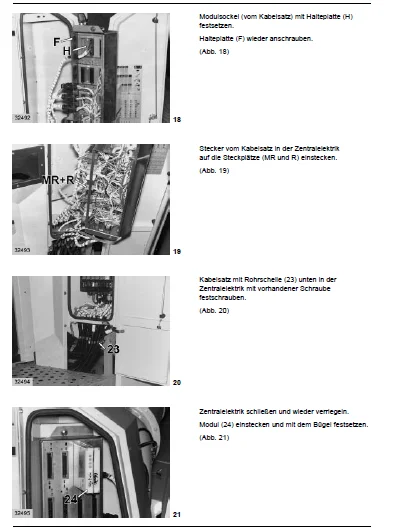

IMAGES PREVIEW OF THE MANUAL:
