CLaas LEXION CLAAS СаЬ Heater Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLaas LEXION CLAAS СаЬ Heater Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

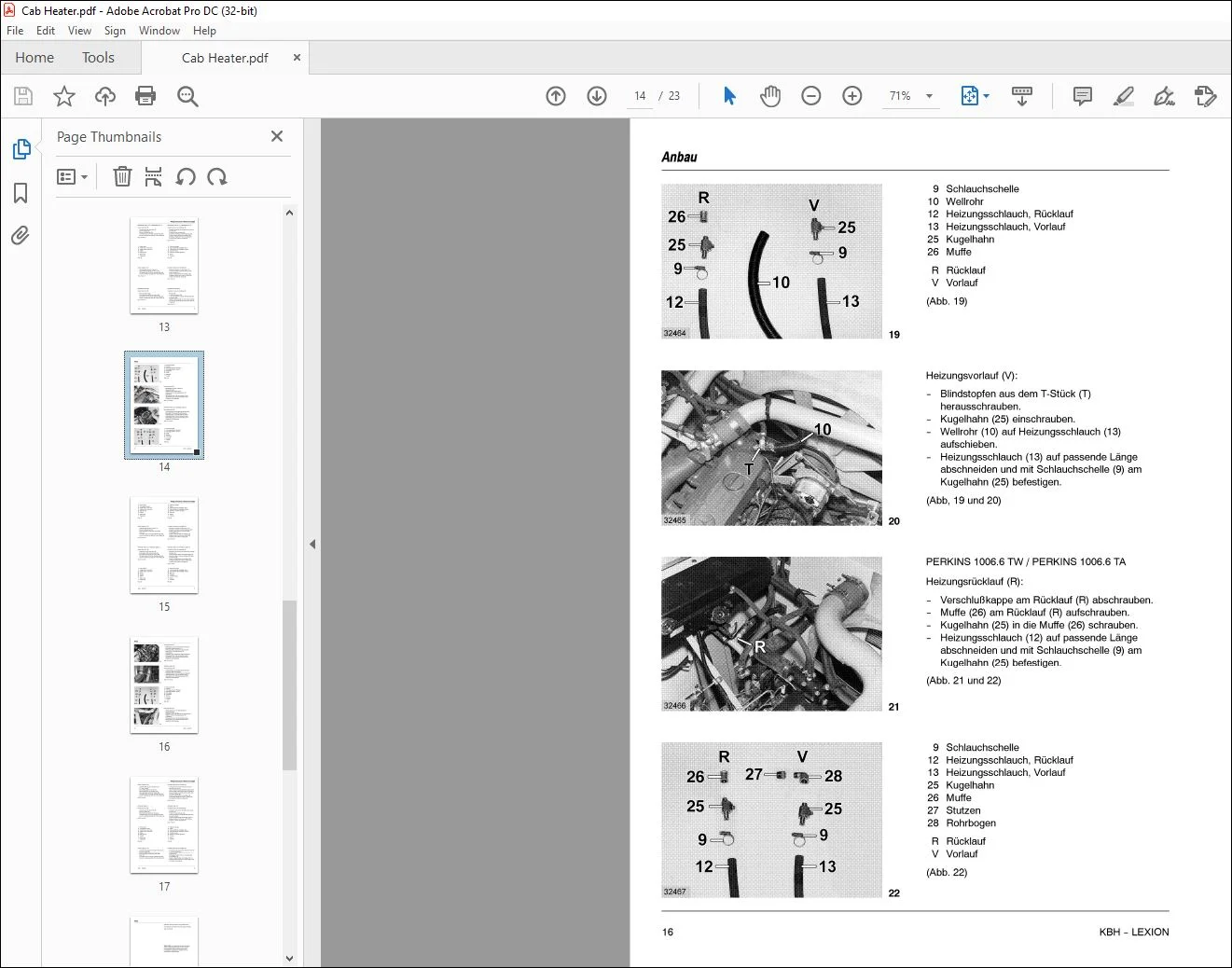

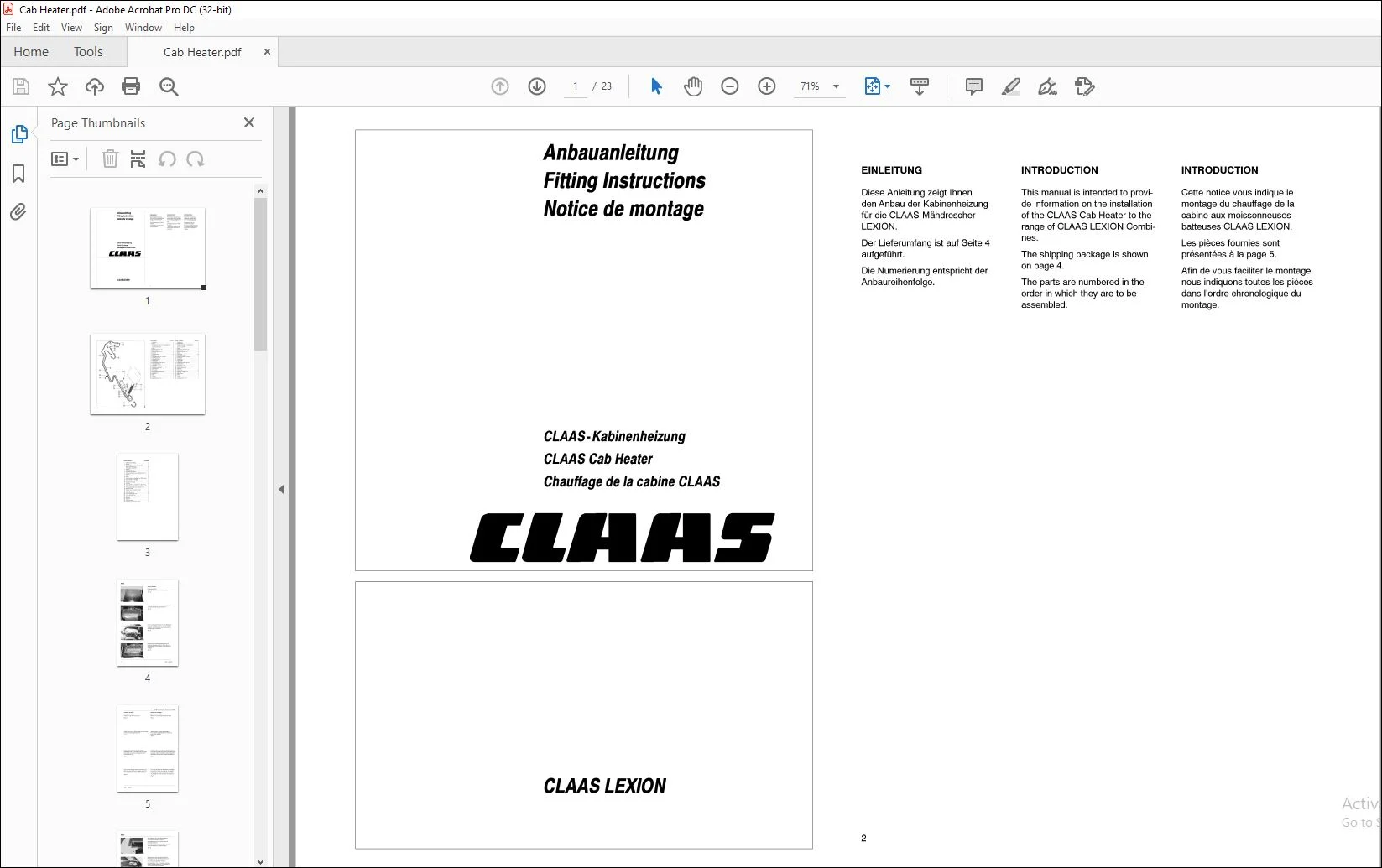

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLaas LEXION CLAAS СаЬ Heater Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

This manual is intended to provide information оп the installation of the CLAAS СаЬ Heater to the range of CLAAS LEXION ComЬines. The shipping package is shown оп page 4. The parts are numbered in the order in which they are to Ье assemЫed.

TABLE OF CONTENTS:

CLaas LEXION CLAAS СаЬ Heater Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Lieferumfang Anzahl
1 Heizkбrper 1
2 Winkel 1
3 Sechskantschraube М 6 х 12 DIN 933-88 2
Sechskantmutter М 6 2
Contact-Scheibe В 6 2
4 Halter 1
5 Blechschraube 4,8 х 16 1
6 Kantenschutz 1
7 Kabelring 28 х 38 х 1,5 8
8 Krummer 1
9 Schlauchschelle 1 О
1 О Wellrohr 2
11 Heizungsschlauch са 700 lang 1
12 Heizungsschlauch 1
13 Heizungsschlauch 1
14 Regulierventil 1
15 Rohrstutzen 2
16 Heizungsschlauch са 60 lang 1
17 Heizungsbetatigung 1
18 Kabelring8x11 х1 1
19 Drehknopf 1
20 Einleger fur Drehknopf 1
21 Federklammer 1
22 Rohrschelle 13
23 Sechskantschraube М 8 х 25 6
24 Rohrbogen 3/s’ 1
25 Kugelhahn 2
26 Muffe 1
27 Stutzen 1
28 Rohrbogen 1
29 Kabelband 51 Ох 12, 7 2
Scope of Supply Quantity
1 Heater саге 1
2 Angle bracket 1
3 Hexagonal bolt М 6 х 12 DIN 933-88 2
Hexagonal nut М 6 2
Contact washer В 6 2
4 Support 1
5 Self-tapping screw 48 х 16 1
6 Beading 1
7 Grommet 28 х 38 х 15 8
8 Elbow 1
9 Hose clamp 1 О
1 О Corrugated conduit 2
11 Heater hose approx 700 long 1
12 Heater hose 1
13 Heater hose 1
14 Control valve 1
15 Pipe fitting 2
16 Heater hose approx 60 long 1
17 Heater control 1
18 Grommet8x11 х1 1
19 Rotary knob 1
20 1 nsert for rotary knob 1
21 Spring clip 1
22 Pipe clamp 13
23 Hexagonal bolt М 8 х 25 6
24 Elbow З/s” 1
25 Ball-type tap 2
26 Sleeve 1
27 Socket 1
28 Elbow 1
29 СаЫе band 510 х 127 2Pieces fournies Quantite
1 Element de chauffage 1
2 Equerre 1
3 Vis а six pans М 6 х 12 DIN 933-88 2
Ecrou а six pans М 6 2
Rondelle de contact В 6 2
4 Support 1
5 Vis а tбle 4,8 х 16 1
6 Protection des aretes 1
7 Anneau protecteur pour саЫеs 28 х 38 х 1,5 8
8 Coude 1
9 Collier de serrage 1 О
10 Gaine 2
11 Tuyau flexiЫe de chauffage env 700 de long 1
12 Tuyau flexiЫe de chauffage 1
13 Tuyau flexiЫe de chauffage 1
14 Soupape de reglage 1
15 Tubulure 2
16 Tuyau flexiЫe de chauffage env 60 de long 1
17 Segment d’actionnement du chauffage 1
18 Anneau protecteur pour саЫеs 8 х 11 х 1 1
19 Bouton tournant 1
20 lnsertion pour le bouton tournant 1
21 Ressort 1
22 Collier de serrage 13
23 Vis а six pans М 8 х 25 6
24 Coude de tuyau 3/ 8′ 1
25 Robinet а tournant spherique 2
26 Manchon 1
27 Tubulure 1
28 Coude de tuyau 1
29 Fixation pour саЫеs 51 О х 12, 7 2

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
