INTRODUCTION

These instructions show the installation of the CLAAS 4-TRAC SYSTEM for the CLAAS LEXION combines. The numbering corresponds to the order of installation. The shipping package is shown on page 3.
TABLE OF CONTENTS:

CLAAS LEXION CLAAS 4-Trac-System (Sauer Hydrostatic Ground Drive) Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

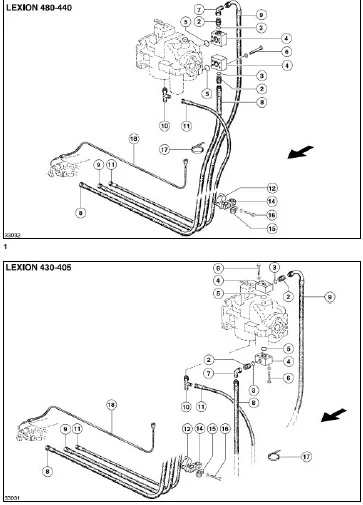

1 Hydrostatic driven
rear axle 1
2 Male connector 2
3 O-ring 2
4 Intermediate flange 2
5 O-ring 2
6 Hexagonal bolt 8
Lexion 480 – 440
1/2-13 x 4”
Lexion 430 – 405
7/16-14 x 3 3/4”
Spring washer 8
Lexion 480 – 440
13 (1/2”)
Lexion 430 – 405
11.3 x 19.3 x 2.1
7 Elbow fitting 1
8 Hose 1
9 Hose 1
10 T-piece 1
11 Hose 1
12 Angle plate 1
13 Hexagonal bolt
M 8 x 20 DIN 933-8.8 2
Hexagonal nut M 8 2
Contact washer A 8 2
14 Double clamp 2
15 Pipe clamp 2
16 Hexagonal bolt
M 8 x 90 DIN 931-8.8 2
Hexagonal nut M 8 2
Contact washer A 8 2
17 Cable strap 2
18 Wiring loom 1
19 Rocker switch 1

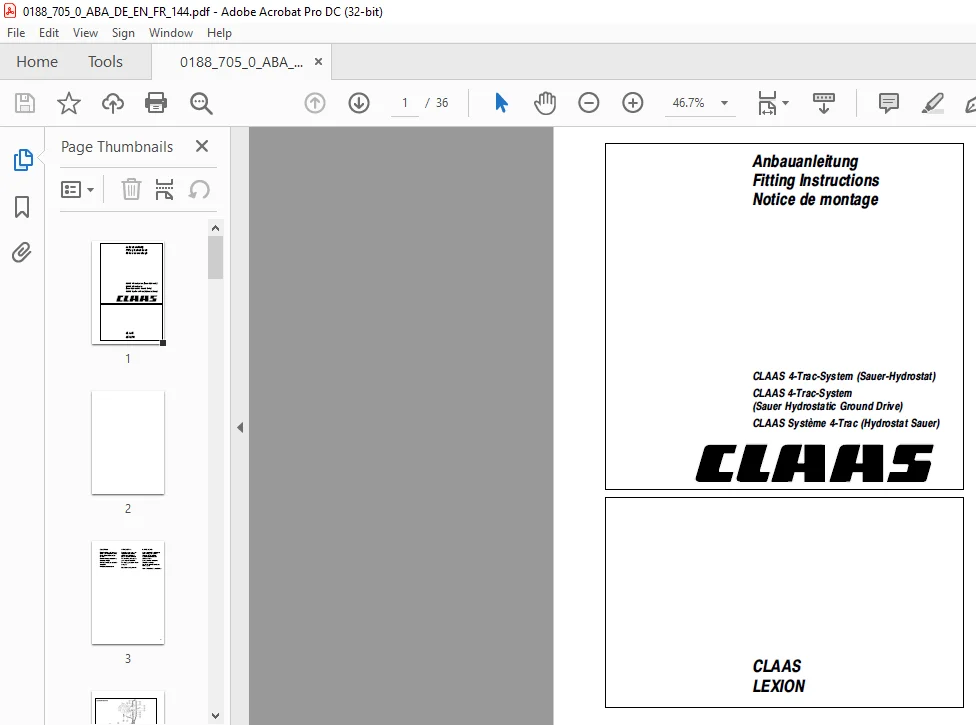

IMAGES PREVIEW OF THE MANUAL:
