INTRODUCTION

This manual is intended to provide information on the installation of the Autopilot to the range of CLAAS LEXION combines. The parts are numbered in the order in which they are to be assembled. The shipping package is shown on page 5. Installation of the Autopilot to front attachments is covered by an extra manual
TABLE OF CONTENTS:

CLAAS LEXION CLAAS Autopilot Fitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Angle bracket 1
2 Hexagonal bolt M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
3 4/3-way directional control valve 1
4 Elbow 2
5 Hydraulic hose 1300 mm long 1
6 Hydraulic hose 1300 mm long 1
7 Hydraulic hose 900 mm long 1
8 Hydraulic hose 800 mm long 1
9 Hexagonal bolt M 8 x 16 DIN 933-88 2
Contact washer 2
10 T-piece 2
11 Reducer 2
12 T-piece 1
13 T-piece 1
14 Reducer 1
15 Reducer 1
16 Angle bracket 1
17 Hexagonal bolt M 8 x 20 DIN 933-88 1
Hexagonal nut M 8 1
Contact washer A 8 1
18 Rubber damper 2
Mounting bracket 2
19 Hexagonal bolt M 8 x 45 DIN 931-88 2
Self-locking nut VM 8 2
20 Cable strap 76 x 290 1
21 Wiring loom 1
22 Cable strap 150 x 36 4
23 Hose clamp 1
24 Module 1
Bracket 1
25 Foot-operated switch 1
26 Spacer tube 2
27 Hexagonal bolt M 6 x 45 DIN 931-88 2
Washer 64 2
28 Contact switch for operator’s seat
with pneumatic adjustment 1
Contact switch for operator’s seat
with mechanical adjustment 1
29 Centralizing switch 1
30 Rocker switch 1
31 Bulb 1
32 Lock collar 1
33 Overrider switch 1
34 Back-up washer 1
35 Steering cylinder 1
36 Wiring loom 1
37 Spiral hose 1

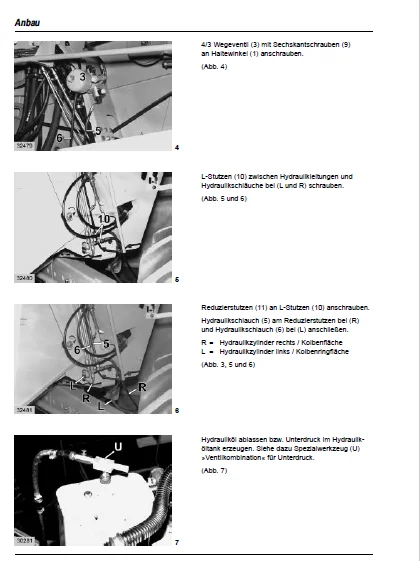

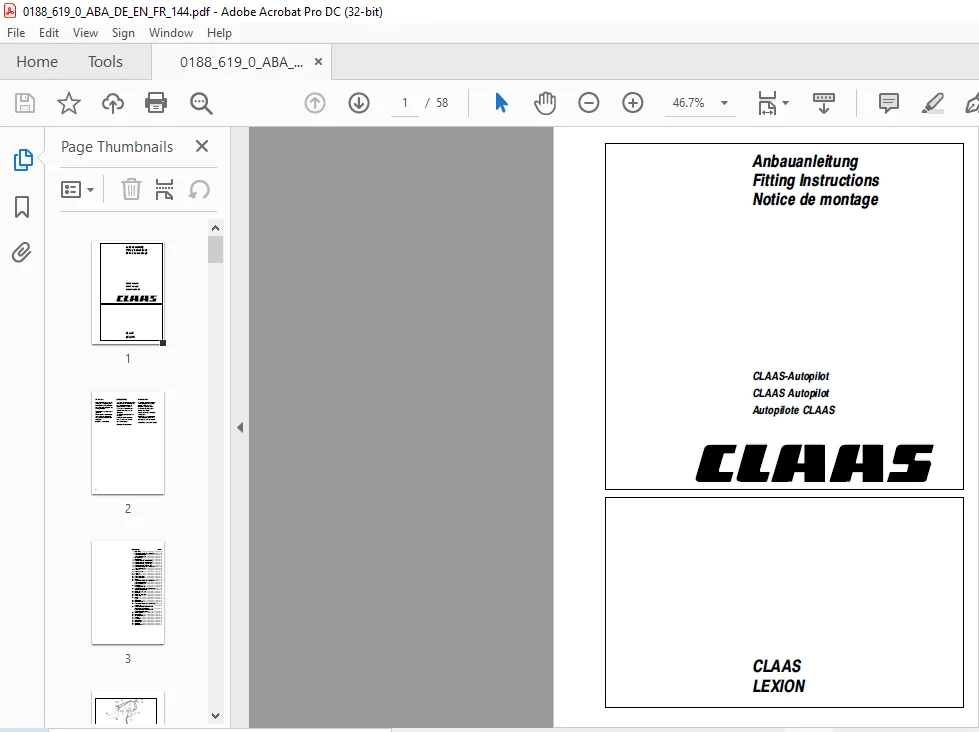

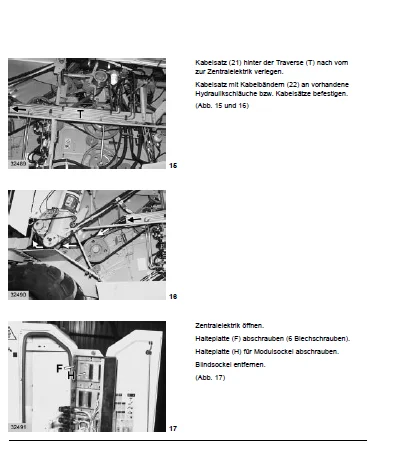

IMAGES PREVIEW OF THE MANUAL:
