INTRODUCTION

This manual is intended to provide information on the installation of the CLAAS Cab Heater to the range of CLAAS LEXION Combines. The shipping package is shown on page 4. The parts are numbered in the order in which they are to be assembled.
TABLE OF CONTENTS:

CLAAS LEXION CLAAS Cab Heater Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Scope of Supply Quantity
1 Heater core 1
2 Angle bracket 1
3 Hexagonal bolt M 6 x 12 DIN 933-88 2
Hexagonal nut M 6 2
Contact washer B 6 2
4 Support 1
5 Self-tapping screw 48 x 16 1
6 Beading 1
7 Grommet 28 x 38 x 15 8
8 Elbow 1
9 Hose clamp 10
10 Corrugated conduit 2
11 Heater hose approx 700 long 1
12 Heater hose 1
13 Heater hose 1
14 Control valve 1
15 Pipe fitting 2
16 Heater hose approx 60 long 1
17 Heater control 1
18 Grommet 8 x 11 x 1 1
19 Rotary knob 1
20 Insert for rotary knob 1
21 Spring clip 1
22 Pipe clamp 13
23 Hexagonal bolt M 8 x 25 6
24 Elbow #/8” 1
25 Ball-type tap 2
26 Sleeve 1
27 Socket 1
28 Elbow 1
29 Cable band 510 x 127 2

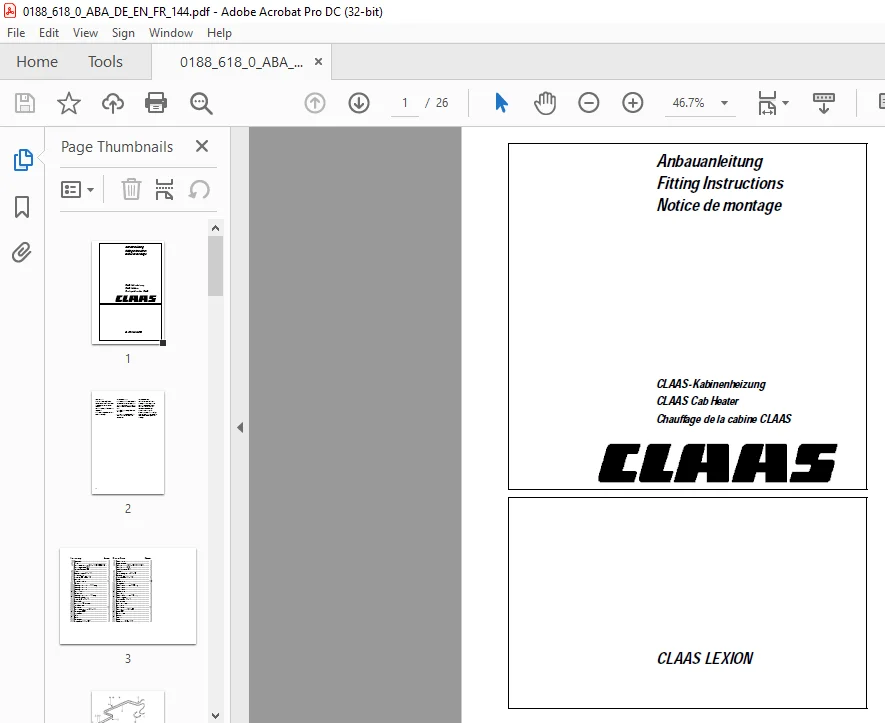

IMAGES PREVIEW OF THE MANUAL:
