CLAAS LEXION Grain Tank Unloading Aid Installation Manual (DE/EN/FR)

Original price was: $78.00.Current price is: $12.95.

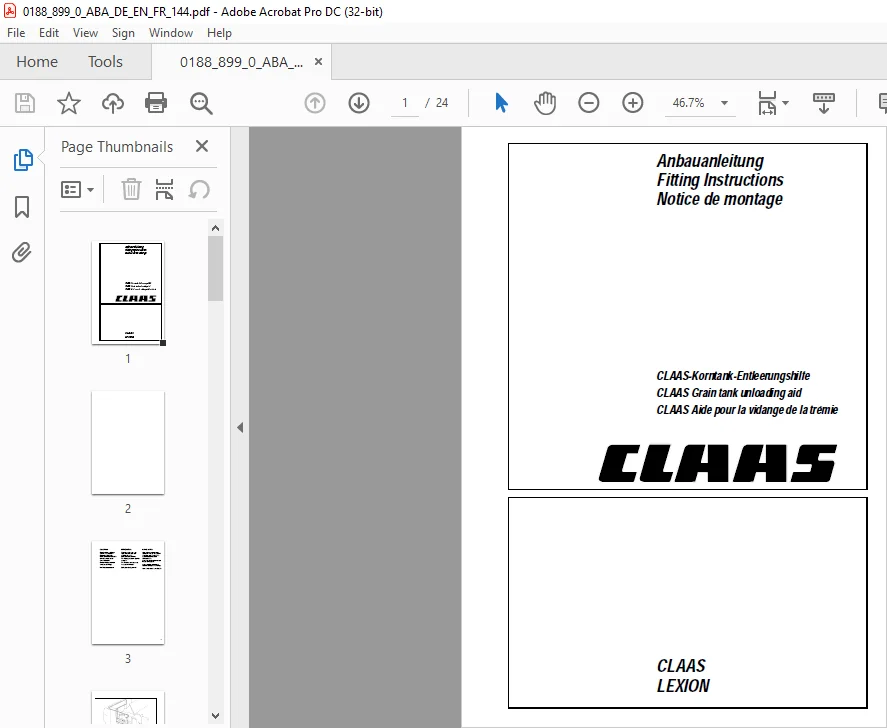

CLAAS LEXION CLAAS Grain tank unloading aid Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

⚑
Instant PDF Download
Available immediately
πŸ’Ύ
Save to Your Device
Download & keep forever
πŸ›‘οΈ
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

CLAAS LEXION CLAAS Grain tank unloading aid Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION CLAAS Grain tank unloading aid Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions show the installation of the grain tank unloading aid to the CLAAS LEXION combines. The shipping package is specified on page 4. The numbering corresponds to the order of installation
TABLE OF CONTENTS:

CLAAS LEXION CLAAS Grain tank unloading aid Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Front unloading auger:
11 Support 2
12 Hex bolt M 8 x 16 5
Hex nut M 8 5
Contact washer A 8 5
13 Rivet nut 2
14 Rubber-metal buffer 6
15 Hex nut M 8 6
Contact washer A 8 6
16 Hex bolt M 8 x 16 2
Contact washer A 8 2
17 Angle 1
18 Cover 1
19 Vibration motor 1
20 Hex bolt M 6 x 12 4
Contact washer A 6 4
11 Hex bolt M 8 x 10 4
Contact washer A 8 4
13 Wiring loom (KT) 1
14 Cable conduit 1
15 Pipe clamp RSGU 19 / 20 3
16 Mushroom head screw M 8 x 20 3
Hex nut M 8 3
Contact washer A 8 3
17 Pipe clamp 12 / 20 9
18 Heat shrink 1
19 Cable band 47 x 188 20
20 Grommet 18 x 30 x 15 1
21 Wiring loom (CE) 1
22 Pipe clamp 85 x 15 x 165 1
23 Relay support plate 1
24 Hex bolt M 6 x 12 2
Hex nut M 6 2
Contact washer A 6 2
25 Hex bolt M 5 x 12 1
Hex nut M 5 1
Washer 53 1
Spring washer 5 1
26 Pipe clamp 19 / 15 1
27 Relay 1
Rear unloading auger:
2 Hex bolt M 8 x 16 4
Hex nut M 8 4
Contact washer A 8 4
3 Rivet nut 2
4 Rubber buffer 6
5 Hex nut M 8 6
Contact washer A 8 6
6 Hex bolt M 8 x 16 2
Contact washer A 8 2
7 Angle 3
9 Vibration motor 1
10 Hex bolt M 6 x 12 4
Contact washer A 6 4
11 Hex bolt M 8 x 10 4
Contact washer A 8 4
12 Cover shield 1

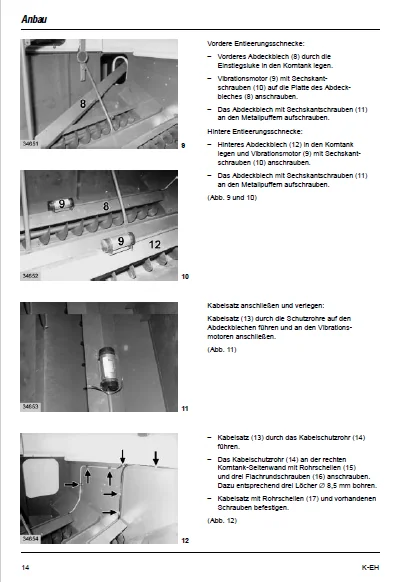

IMAGES PREVIEW OF THE MANUAL:
