INTRODUCTION

This supplement describes the fitting of the Quantimeter system onto the CLAAS LEXION range of combine harvesters. The shipping package is shown on page 6. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS LEXION CLAAS Quantimeter Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

1 Transmitter – pre-assembled 1
2 Hex bolt M 10 x 16 DIN 933-88 1
Contact washer B 10 1
Washer 18,5 x 28 x 3 1
Washer 18,5 x 28 x 1 1
3 Spring 2 x 25 x 58 DIN 2098 1
4 Receiver – pre-assembled 1
5 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
6 Moisture sensor assembled 1
7 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
8 Protective strip 1
9 Hydraulic pipe 11 x 1,5 x 5340 2
10 L union L10 2
11 Double clamp B 10 12
12 Hex bolt M 6 x 25 DIN 933-88 2
Hex nut M6 DIN 934-8 2
Contact washer A6 2
13 Hex bolt M 6 x 20 DIN 933-88 5
Contact washer A6 5
14 Mushroom headed bolt M 6 x 25 -88 4
Hex nut M6 DIN 934-8 4
Contact washer A6 4
15 Hex screw Taptite M6 x 20 1
16 Connection supports 2
17 Hex nut M 10 DIN 934-8 2
Contact washer A 10 2
18 Two ear clamp 2
19 Hollow screw D 8 / M14 x 1,5 2
Seal D 14 x 20 DIN 7603 6
20 Union section D 14 x 20 DIN 7603 1
Seal D 14 x 20 DIN 7603 2
21 Inclinometer 1
22 Hex bolt M 6 x 16 DIN 933-88 3
Hex nut M 6 DIN 934-8 3
Contact washer A6 3
23 Console 1
24 Cable clamp NW 8,5 7
25 Cable clamp NW 10 3
26 Wiring loom 1
27 Pipe clamp RS 112 / 20 16
28 Hex bolt M 6 x 20 DIN 933-88 6
Hex nut M 6 DIN 934-8 6
Contact washer A6 12
29 Hex bolt M 8 x 20 DIN 933-88 10
Hex nut M 8 DIN 934-8 10
Contact washer A8 10
30 Mushroom headed bolt M 8 x 20 DIN 933-88 4
Hex nut M 8 DIN 934-8 4
Contact washer A8 4
31 Flange 30 x 5 x 100 3
32 Angle 20 x 3 x 79 2
33 Pipe clamp RS 125 / 20 2
34 Cable tie min 4,7 x 188 4
35 Pipe clamp RS 116 / 20 1
Lieferumfang Anzahl
36 Hex nut M 8 DIN 934-8 1
Contact washer A8 1
37 Pipe clamp RSGU 115 / 20 1
38 LEM module 1
Strap D3 1

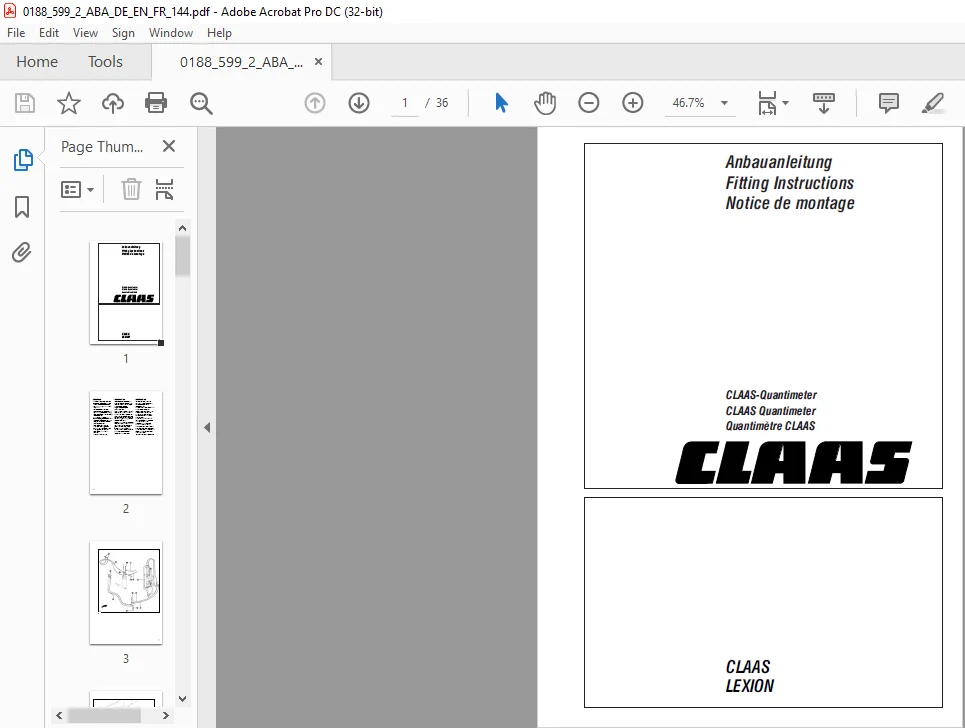

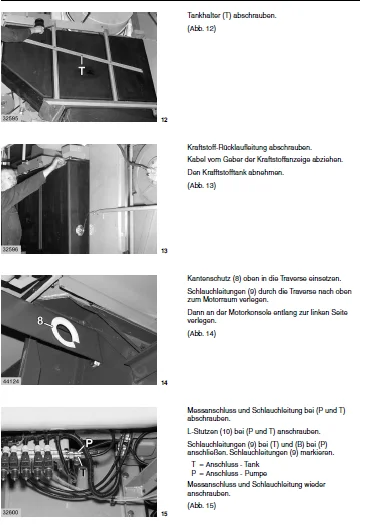

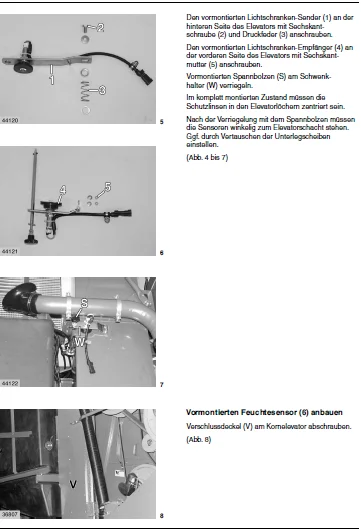

IMAGES PREVIEW OF THE MANUAL:
