CLAAS LEXION CONSPEED 8-75 FC CONSPEED 6-75 FC ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL

Description

CLAAS LEXION CONSPEED 8-75 FC CONSPEED 6-75 FC ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL DE_EN_FR_IT

DESCRIPTION:

CLAAS LEXION CONSPEED 8-75 FC CONSPEED 6-75 FC ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

General recommandation for repair

1. Locate the seat of the trouble, note all defective parts and take all precautions to prevent accidents.

2. Use genuine CLAAS spares and suitable CLAAS special service tools.

3. Drain off oil before removing the transmission cases. Use a plastic or soft metal hammer to separate parts tightly fitted into each other.

4. Correct tension of steel roller chains Find the center point in the slack span between sprockets. With the tight span slightly under load, push in the center point of the slack span with the thumb. The tension of the chain is correct when its slack span deflects about 2 % of the center distance between shafts. Tension of new chains should be checked at short intervals. Example: If the distance between the centers of the shafts is 500 mm, the slack span of the chain should deflect about 10 mm.

5. Self-locking bolts (with adhesive-filled micro capsules) Renew self-locking bolts, e.g. Verbus-Plus / Imbus- Plus or similar bolts whenever they have been disturbed. In exceptional cases, self-locking bolts may be reused up to three times. Always be sure to tighten the self-locking bolts to the specified torque. Self-locking bolts with adhesive-filled micro capsules must always be quickly tightened to the specified torque. When removing these bolts, screw them quickly all the way out. These selflocking bolts with adhesive-filled micro capsules must not come in contact with sealant or jointing compound (e.g. Epple 33 or similar products). Instead of self-locking bolts, regular bolts with liquid locking compound may be used if need be. However, this must not become common practice. However, care must be taken to use bolts and liquid locking compound only in places where it is possible to heat the fasteners to about 200 °C (392 °F) for removal. Ensure that the regular bolts conform to the specified grades (8.8/10.9 or similar property classes). Self locking bolts with adhesive filled micro capsules can only be used where the operating temperature will not exceed +90 °C (194 °F). After 24 hours of curing at +20 °C (68 °F) these fasteners can be subjected to full stress. To speed up curing time, the bonded parts can be heated, e.g. at +70 °C (158 °F) total hardening time is reduced to 15 minutes.

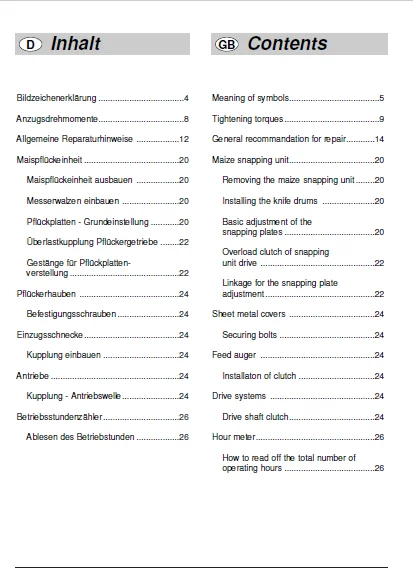

TABLE OF CONTENTS:

CLAAS LEXION CONSPEED 8-75 FC CONSPEED 6-75 FC ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

Meaning of symbols5
Tightening torques9
General recommandation for repair14
Maize snapping unit20
Removing the maize snapping unit 20
Installing the knife drums 20
Basic adjustment of the
snapping plates 20
Overload clutch of snapping
unit drive 22
Linkage for the snapping plate
adjustment22
Sheet metal covers 24
Securing bolts 24
Feed auger 24
Installaton of clutch 24
Drive systems 24
Drive shaft clutch24
Hour meter26
How to read off the total number of
operating hours 26

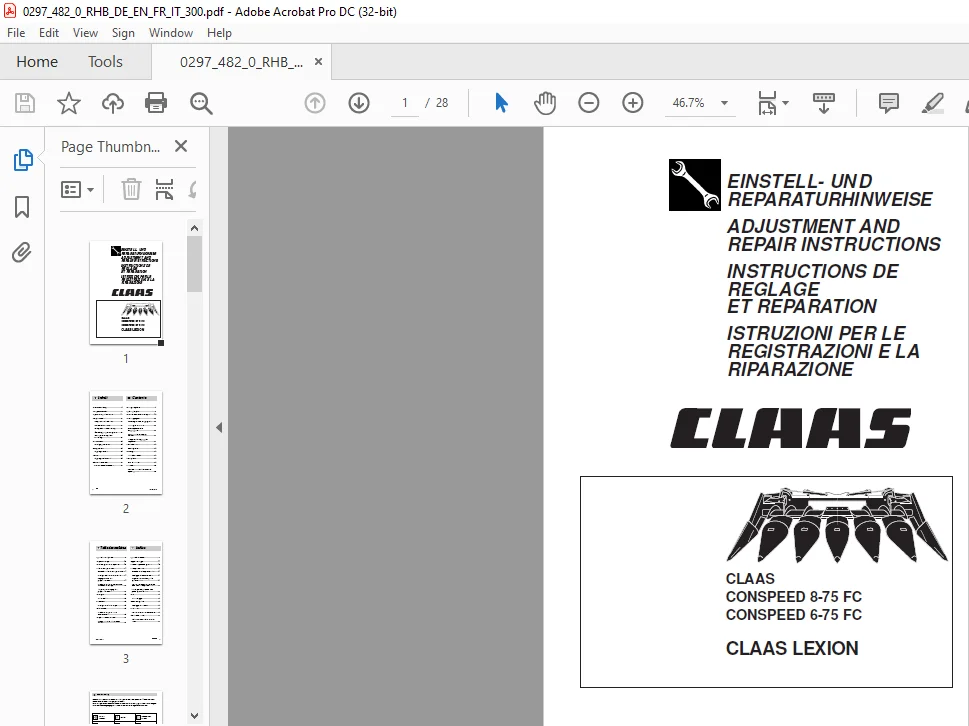

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
