CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual – PDF DOWNLOAD

Description

CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION :

These Fitting Instructions show you the installation of the cutterbar or maize picker head variable speed drive for the CLAAS LEXION combine harvesters. The numbering corresponds to the order of installation. The contents of the shipping package is listed on page 4.

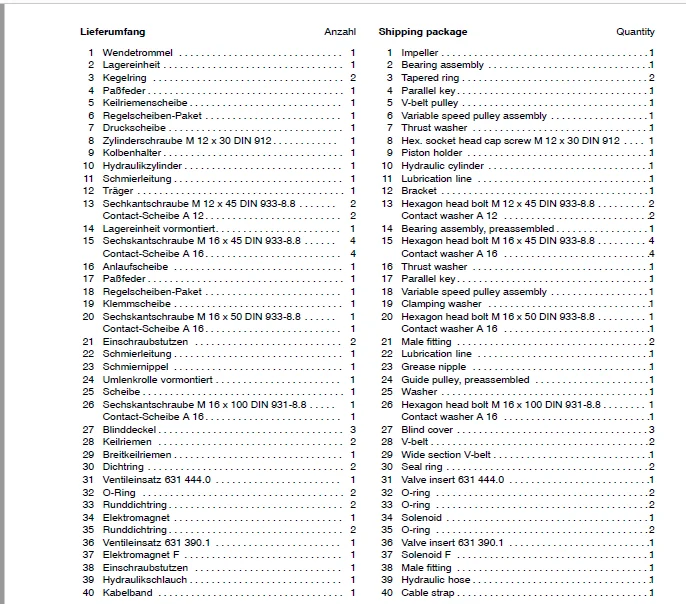

TABLE OF CONTENTS:

CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual – PDF DOWNLOAD

1 Impeller 1
2 Bearing assembly 1
3 Tapered ring 2
4 Parallel key 1
5 V-belt pulley 1
6 Variable speed pulley assembly 1
7 Thrust washer 1
8 Hex socket head cap screw M 12 x 30 DIN 912 1
9 Piston holder 1
10 Hydraulic cylinder 1
11 Lubrication line 1
12 Bracket 1
13 Hexagon head bolt M 12 x 45 DIN 933-8 8 2
Contact washer A 12 2
14 Bearing assembly, preassembled 1
15 Hexagon head bolt M 16 x 45 DIN 933-8 8 4
Contact washer A 16 4
16 Thrust washer 1
17 Parallel key 1
18 Variable speed pulley assembly 1
19 Clamping washer 1
20 Hexagon head bolt M 16 x 50 DIN 933-8 8 1
Contact washer A 16 1
21 Male fitting 2
22 Lubrication line 1
23 Grease nipple 1
24 Guide pulley, preassembled 1
25 Washer 1
26 Hexagon head bolt M 16 x 100 DIN 931-8 8 1
Contact washer A 16 1
27 Blind cover 3
28 V-belt 2
29 Wide section V-belt 1
30 Seal ring 2
31 Valve insert 631 444 0 1
32 O-ring 2
33 O-ring 2
34 Solenoid 1
35 O-ring 2
36 Valve insert 631 390 1 1
37 Solenoid F 1
38 Male fitting 1
39 Hydraulic hose 1
40 Cable strap 1

CLAAS LEXION CUTTERBAR VARIABLE SPEED DRIVE FITTING INSTRUCTIONS MANUAL – PDF DOWNLOAD:

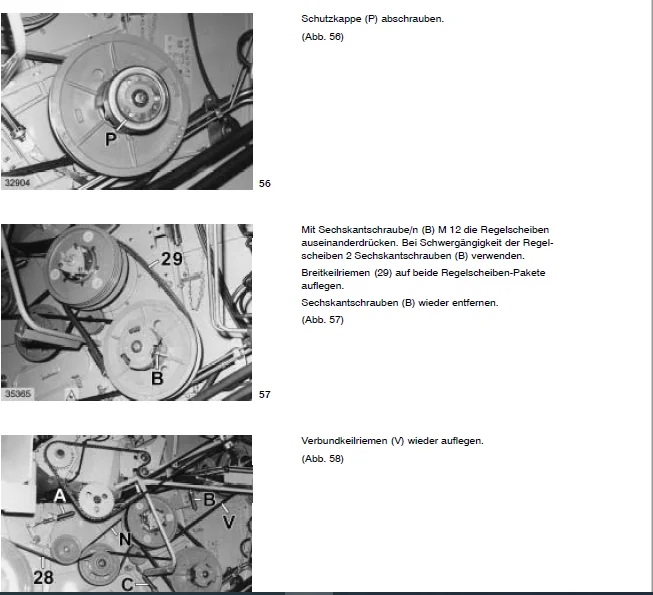

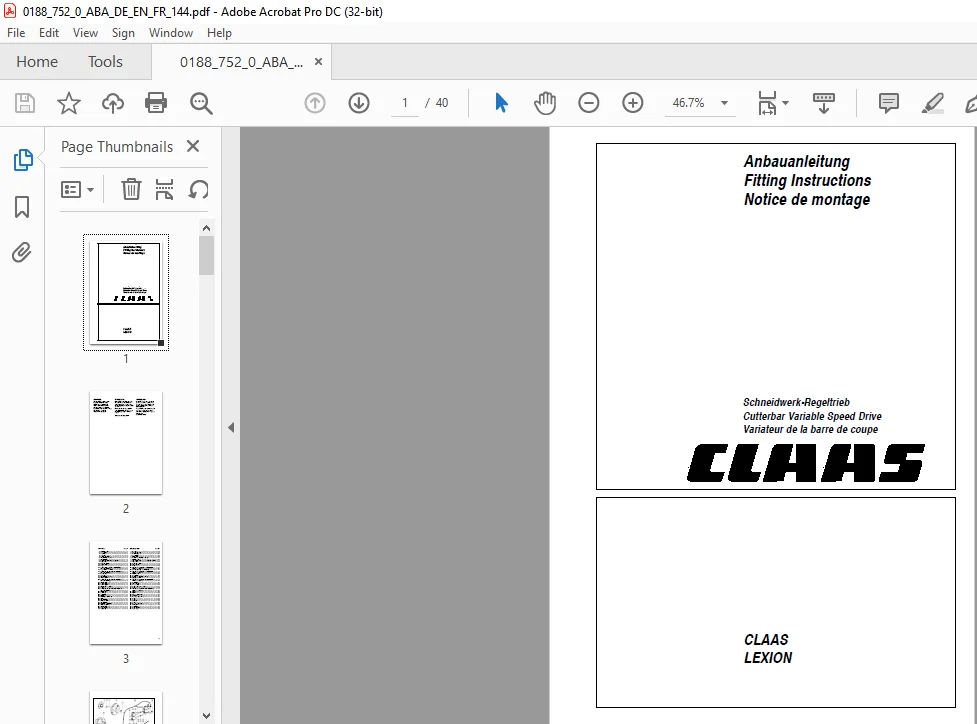

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
