Description
DESCRIPTION:
CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD
INTRODUCTION These Fitting Instructions show you the installation of the cutterbar or maize picker head variable speed drive for the CLAAS LEXION combine harvesters. The numbering corresponds to the order of installation. The contents of the shipping package is listed on page 4.
TABLE OF CONTENTS:
CLAAS LEXION Cutterbar Variable Speed Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

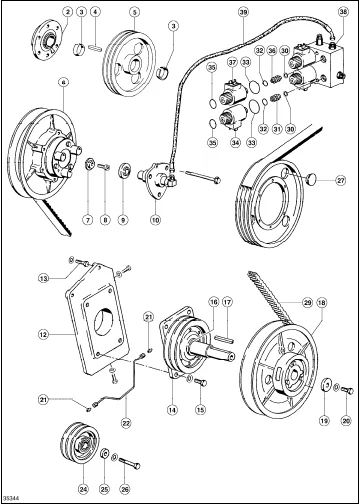

1 Impeller 1
2 Bearing assembly 1
3 Tapered ring 2
4 Parallel key 1
5 V-belt pulley 1
6 Variable speed pulley assembly 1
7 Thrust washer 1
8 Hex socket head cap screw M 12 x 30 DIN 912 1
9 Piston holder 1
10 Hydraulic cylinder 1
11 Lubrication line 1
12 Bracket 1
13 Hexagon head bolt M 12 x 45 DIN 933-88 2
Contact washer A 12 2
14 Bearing assembly, preassembled 1
15 Hexagon head bolt M 16 x 45 DIN 933-88 4
Contact washer A 16 4
16 Thrust washer 1
17 Parallel key 1
18 Variable speed pulley assembly 1
19 Clamping washer 1
20 Hexagon head bolt M 16 x 50 DIN 933-88 1
Contact washer A 16 1
21 Male fitting 2
22 Lubrication line 1
23 Grease nipple 1
24 Guide pulley, preassembled 1
25 Washer 1
26 Hexagon head bolt M 16 x 100 DIN 931-88 1
Contact washer A 16 1
27 Blind cover 3
28 V-belt 2
29 Wide section V-belt 1
30 Seal ring 2
31 Valve insert 631 4440 1
32 O-ring 2
33 O-ring 2
34 Solenoid 1
35 O-ring 2
36 Valve insert 631 3901 1
37 Solenoid F 1
38 Male fitting 1
39 Hydraulic hose 1
40 Cable strap 1

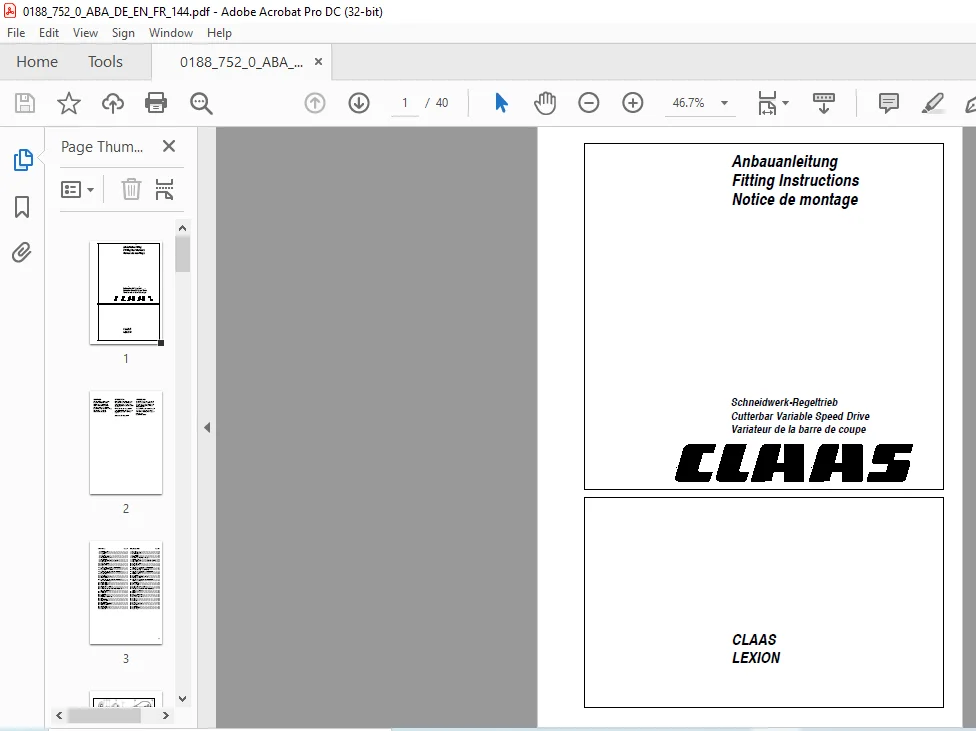

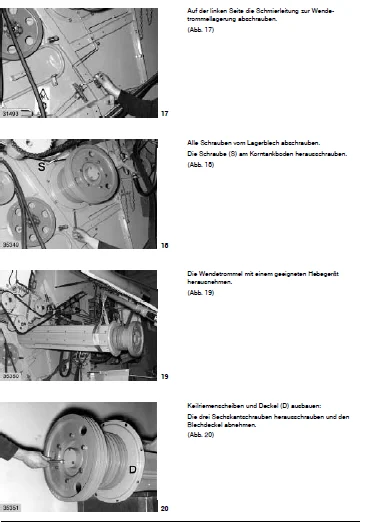

IMAGES PREVIEW OF THE MANUAL:
CLAAS LEXION CUTTERBAR VARIABLE SPEED DRIVE FITTING INSTRUCTIONS MANUAL_DE_EN_FR – PDF DOWNLOAD:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
