CLAAS LEXION Electric Sieve Adjustment System Fitting Instructions Manual DE_EN_FR

Description

CLAAS LEXION Electric Sieve Adjustment System Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION Electric Sieve Adjustment System Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

These instructions show the installation of the electric sieve adjustment system for the CLAAS LEXIONco mbines. The numbering corresponds to the order of installation. The parts of the shipping package are listed on page 5.

TABLE OF CONTENTS:

CLAAS LEXION Electric Sieve Adjustment System Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Mounting bracket 1
2 Hexagonal bolt M 8 x 20 DIN 933-8 8 2
Hexagonal nut M 8 2
Contact washer A 8 2
3 Adjustment motors, preassembled 1
4 Hexagonal bolt M 8 x 20 DIN 933-8 8 4
Hexagonal nut M 8 4
Contact washer A 8 4
5 Wiring loom 1
6 Switch 2
7 Cable clamps6
8 Plug-in module 1
9 Rubber grommet 2
10 Bowden cable 1
11 Bowden cable 1
12 Bracket for Lexion 480 1
Bracket for Lexion 460 — 440 1
Bracket for 430 — 405 1
13 Hexagonal bolt M 8 x 16 DIN 933-8 8 3
Contact washer A 8 3
14 Rubber pad 15/10 3
15 Clamp 4
16 Tube 3
17 Hexagonal bolt M 8 x 45 DIN 933-8 8 4
18 Bracket 1
19 Hexagonal bolt M 6 x 20 DIN 933-8 8 2
Hexagonal nut M 6 2
Contact washer A 6 2
20 Rubber pad 15/15 1
21 Plate 1
Hexagonal nut M6 2
Contact washer A 6 2
22 Sticker 1

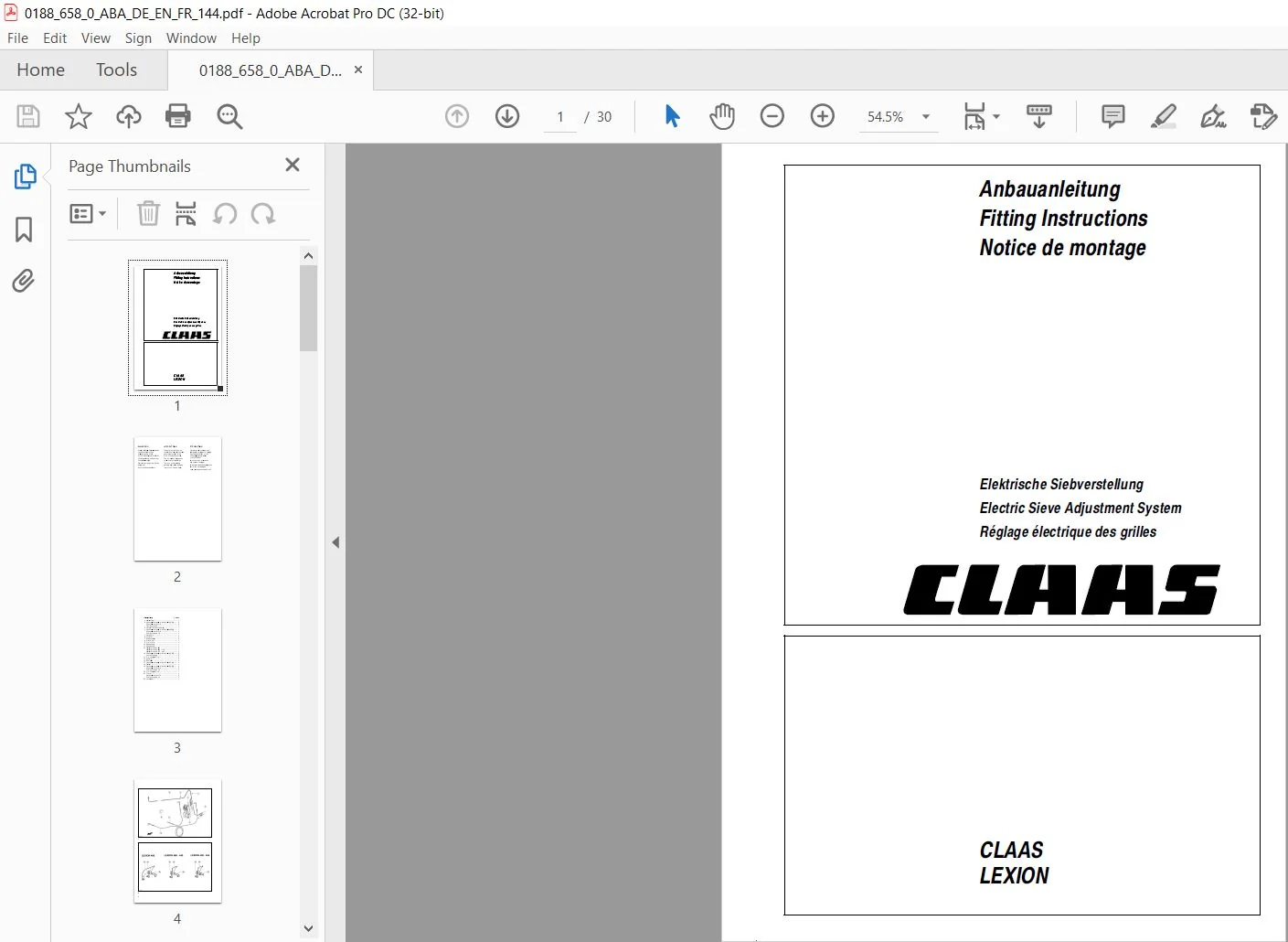

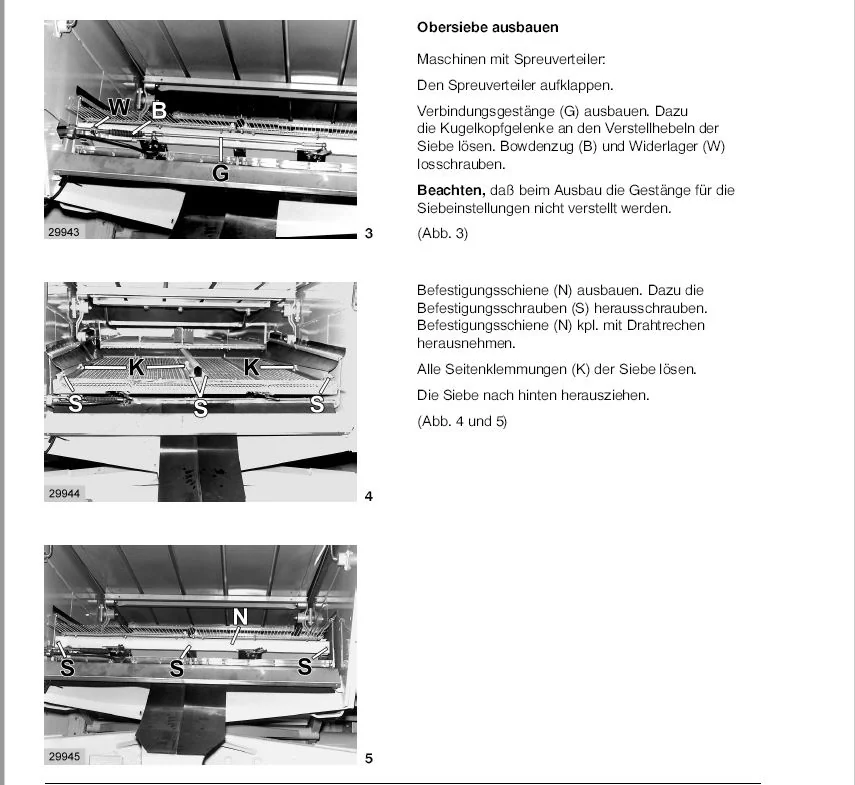

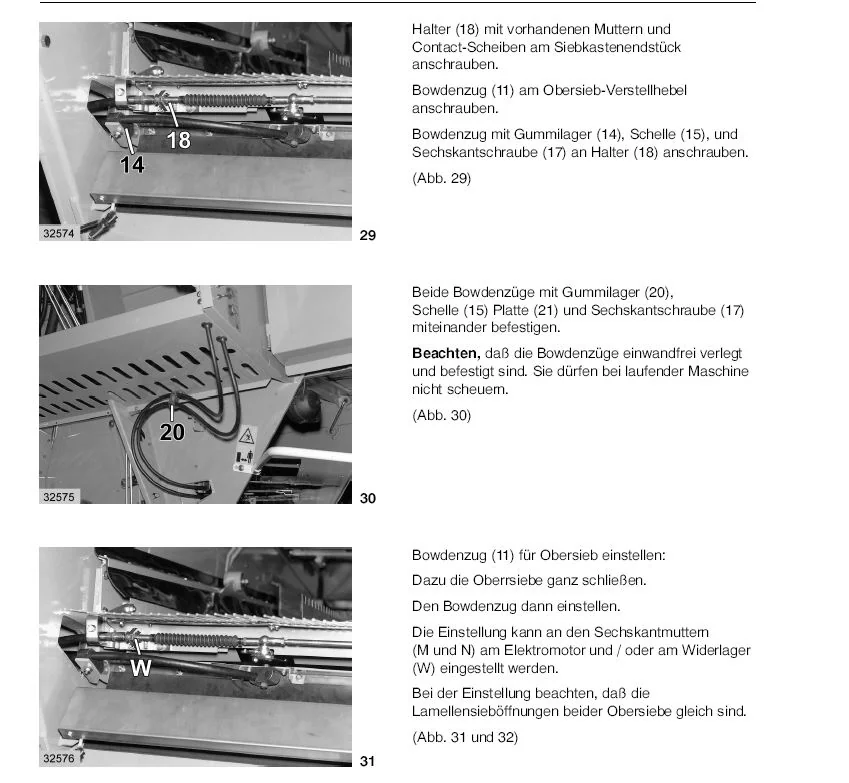

IMAGES PREVIEW OF THE MANUAL:
