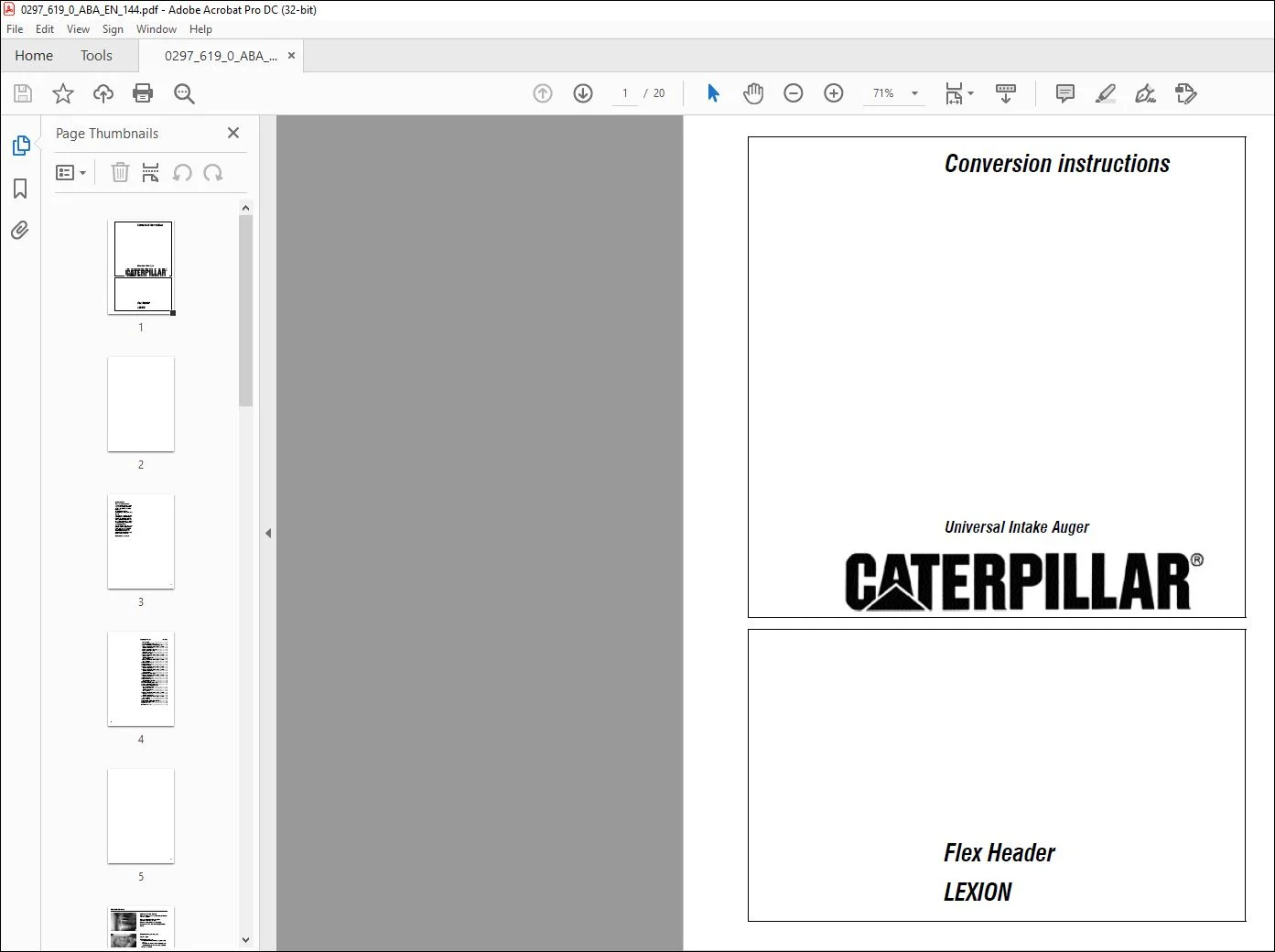

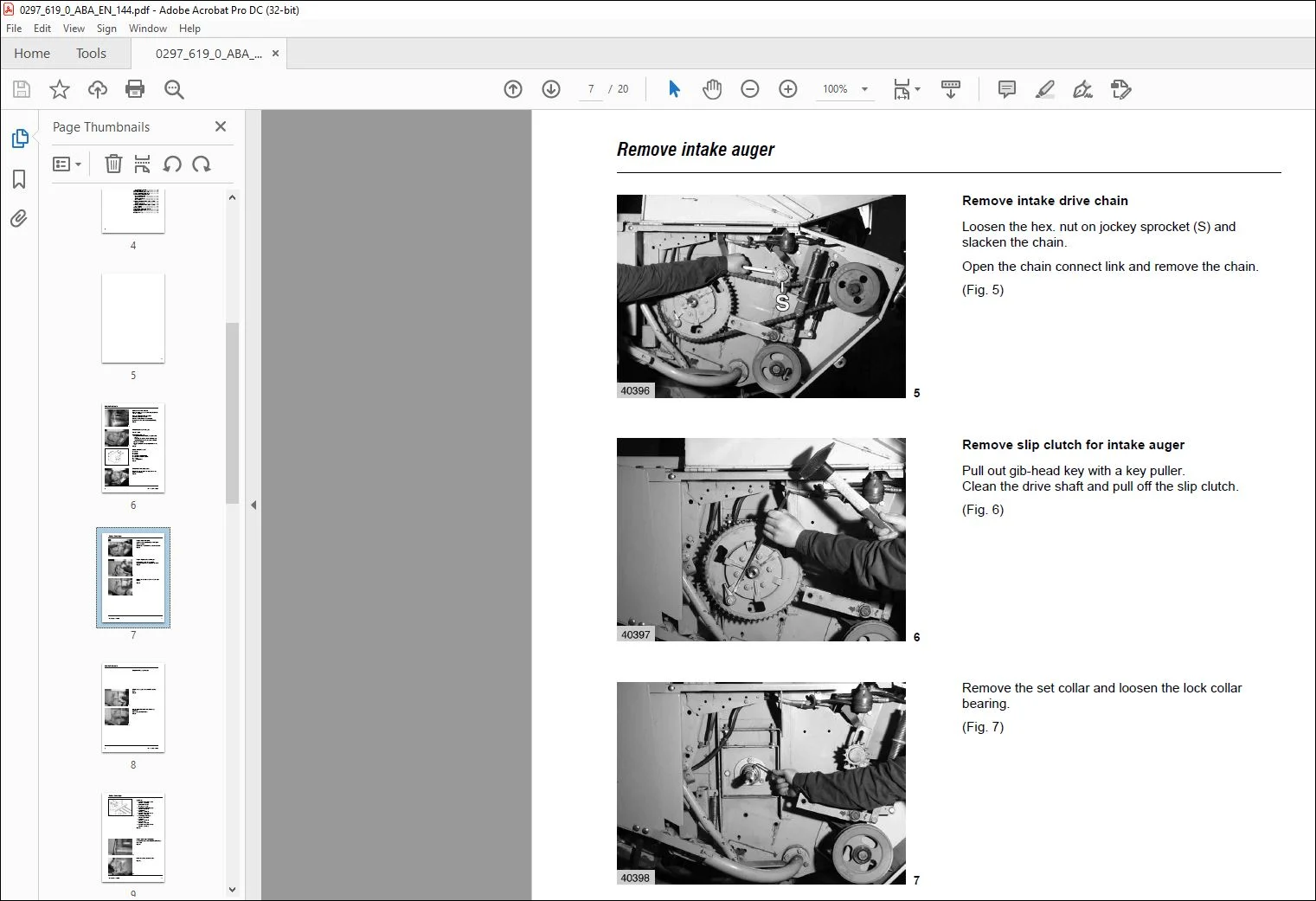

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS LEXION Flex Header Universal Intake Auger Conversion instructions Manual – PDF DOWNLOAD

INTRODUCTION
These instructions show the
conversion to the universal intake
auger on the soybean cutterbar
5.40 m – 9.00 m for the combine
harvesters
CATERPILLAR LEXION.
The shipping package is shown on
page 5.
Each part has a number. The part
specification e.g. for bolts is also
stated in the «shipping package».
The list gives the dimensions and
the quantity of the bolts as well as
the parts belonging to it, like nuts
and Contact washers.
Text and pictures apply, in general
to all the machine types covered
by this book and the information
given applies equally, except
where reference is made to a
particular model in captions to the
pictures or in the main text

TABLE OF CONTENTS:

CLAAS LEXION Flex Header Universal Intake Auger Conversion instructions Manual – PDF DOWNLOAD

1 Intake auger 1
2 Sheet metal flange RB Y 206 2
3 Lock collar bearing RAE30NPPBFA140 1
4 Hexagon head bolt M 10 x 30 DIN 933-88 3
Contact washer A 10 3
5 Adjustment shaft D 30 x 180 1
6 Lock collar 30 FA 125/171 1
Grub screw M 8 x 1 x 8 1
7 Bearing plate right 1
8 Hexagon head bolt M 10 x 20 DIN 933-88 4
Washer 105 4
Contact washer A 10 4
Hex nut M 10 4
9 Hexagon head bolt M 10 x 80 DIN 933-88 2
Hex nut M 10 6
10 Washer 305 x 42 x 2 2
11 Washer 305 x 42 x 1 1
12 Adjustment lever 1
13 Hexagon head bolt M 12 x 40 DIN 933-88 1
Contact washer B 12 1
14 Hexagon head bolt M 10 x 65 DIN 933-88 1
Contact washer A 10 1
Lock nut VM 10 1
15 Drive shaft D 150 x 1822 1
16 Hexagon head bolt M 12 x 30 DIN 933-88 6
Contact washer A 12 6
17 Washer 46 x 62 x 3 1
18 Washer 403 x 51 x 1 3
Stützscheibe S 40 x 50 3
19 Bearing plate left 1
20 Sheet metal flange RB Y 208 2
21 Lock collar bearing YEN 208-S 1
22 Slotted mushroom head screw
M 12 x 45 DIN603-88 4
Washer 13 x 26 x 6 4
Contact washer A 12 4
Hex nut M 12 4
23 Hexagon head bolt M 10 x 25 DIN 933-88 2
Washer 11 x 21 x 3 4
Contact washer A 10 2
24 Hexagon head bolt M 10 x 80 DIN 933-88 2
Hex nut M 10 6
25 Lock collar 40 1
26 Set collar A 40 E8 x 55 x 15/M 10 1
27 Hub GGG-40 DIN 5480 1
29 Shim 40 x 55 x 1 6
30 Circlip 40 x 175 2
4
