CLAAS LEXION Grain cutterbars CLAAS Laser Autopilot Fitting and Operating Instructions Manual

Description

CLAAS LEXION Grain cutterbars CLAAS Laser Autopilot Fitting and Operating Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION Grain cutterbars CLAAS Laser Autopilot Fitting and Operating Instructions Manual – PDF DOWNLOAD

INTRODUCTION

These fitting and operating instructions are intended to provide information on the installation of the Laser Autopilot to the range of CLAAS LEXION combines. The parts are numbered in the order in which they are to be assembled. The shipping package is shown on page 6. A number identifies each component. Please refer to the shipping package for specifications of parts, e. g. bolts. This overview also lists the number of bolts supplied and the nuts and contact washers that must be fitted with the bolts. This manual is only valid in connection with the Operator’s Manual for the CLAAS LEXION combine. IMPORTANT! The CLAAS Laser Autopilot is not dangerous for the eyes. The Laser Autopilot corresponds to protection class

TABLE OF CONTENTS:

CLAAS LEXION Grain cutterbars CLAAS Laser Autopilot Fitting and Operating Instructions Manual – PDF DOWNLOAD

Shipping package Quantity
(Retrofit parts to basic combine)
1 Angle bracket 1
2 Hexagonal bolt M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
3 4/3-way directional control valve 1
4 Elbow 2
5 Hydraulic hose 1300 mm long 1
6 Hydraulic hose 1300 mm long 1
7 Hydraulic hose 900 mm long 1
8 Hydraulic hose 800 mm long 1
9 Hexagonal bolt M 8 x 16 DIN 933-88 2
Contact washer 2
10 T-piece 2
11 Reducer 2
12 T-piece 1
13 T-piece 1
14 Reducer 1
15 Reducer 1
16 Angle bracket 1
17 Hexagonal bolt M 8 x 20 DIN 933-88 1
Hexagonal nut M 8 1
Contact washer A 8 1
18 Rubber damper 2
Mounting bracket 2
19 Hexagonal bolt M 8 x 45 DIN 931-88 2
Self-locking nut VM 8 2
20 Cable strap 76 x 290 1
21 Wiring loom 1
22 Cable strap 150 x 36 4
23 Hose clamp 1
24 Module, for use on maize header 1
Bracket 1
25 Foot-operated switch 1
26 Spacer tube 2
27 Hexagonal bolt M 6 x 45 DIN 931-88 2
Washer 64 2
28 Contact switch for operator’s seat
with pneumatic adjustment 1
Contact switch for operator’s seat
with mechanical adjustment 1
29 Centralizing switch 1
30 Rocker switch 1
31 Bulb 1
32 Lock collar 1
33 Overrider switch 1
34 Back-up washer 1
35 Steering cylinder 1
36 Wiring loom 1
37 Spiral hose 1
Shipping package Quantity
(Retrofit parts to cutterbar)
38 Bracket 1
39 Brace 1
40 Brace 1
41 Hex bolt M 8 x 25 DIN 933-88 6
Hex nut M 8 6
Contact washer A 8 6
42 Support assembly 1
43 Hex bolt M 10 x 30 DIN 933-88 1
44 Laser-sensor 1
45 Hex bolt M 6 x 16 DIN 933-88 6
Contact washer B 6 6
46 Brace (only Vario) 1
47 Wiring loom 1
48 Module, for use on grain cutterbar 1
49 Distance spacer for rape
with L/H side cutter 1
IMAGES PREVIEW OF THE MANUAL:

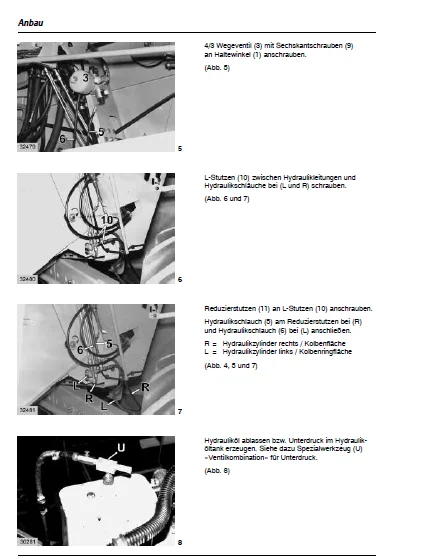

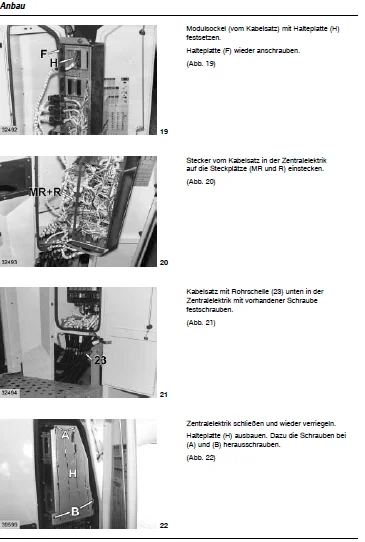

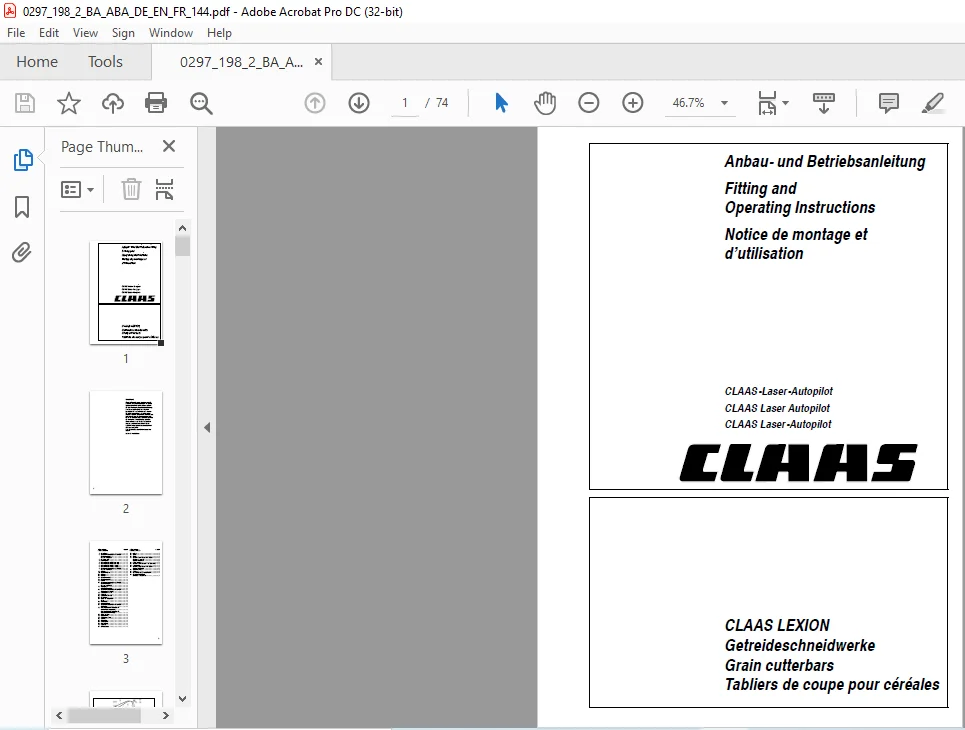

CLAAS LEXION GRAIN CUTTERBARS CLAAS LASER AUTOPILOT FITTING AND OPERATING INSTRUCTIONS MANUAL:
