Claas LEXION Threshing Drum Speed Reduction Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

Claas LEXION Threshing Drum Speed Reduction Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

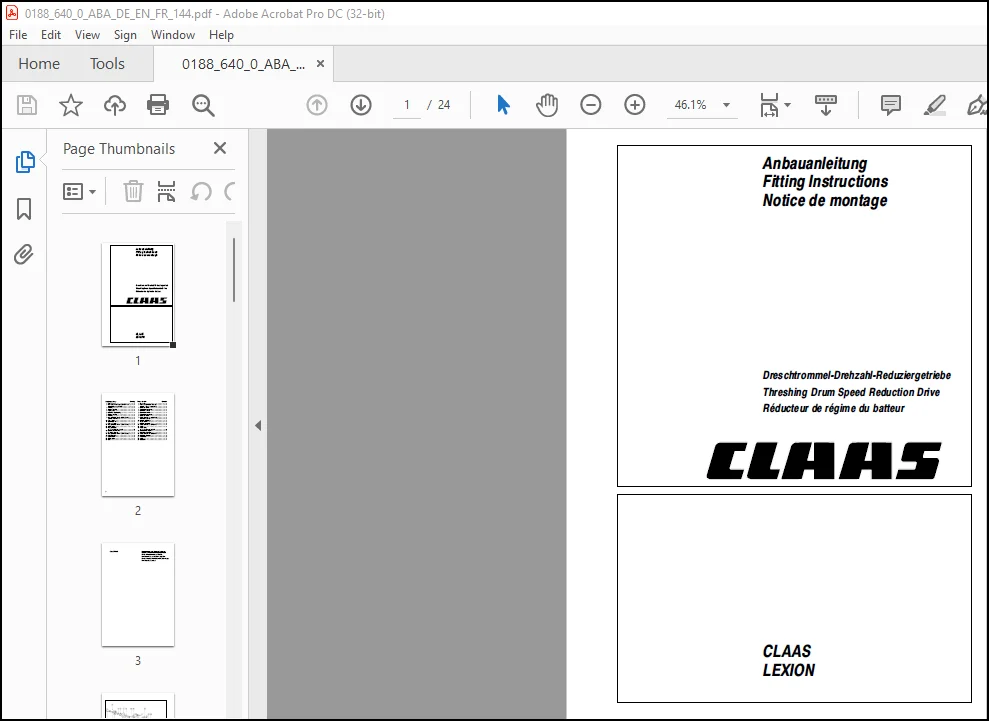

IMAGES OF MANUAL :

DESCRIPTION:

Claas LEXION Threshing Drum Speed Reduction Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION
These instructions show the installation of the
threshing drum speed reduction drive for the
CLAAS LEXION combines.
The parts of the shipping package are listed
on page 4.
The numbering corresponds to the order of
installation

TABLE OF CONTENTS:

Claas LEXION Threshing Drum Speed Reduction Drive Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Flanged shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Hex. socket head cap screw M 8 x 25 . . . . . . . 1
Detent edged ring VSKZ 8 . . . . . . . . . . . . . . . . . 1
3 Felt ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
4 Bearing housing . . . . . . . . . . . . . . . . . . . . . . . . . . 1
5 Taper sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6 Spherical roller bearing . . . . . . . . . . . . . . . . . . . . 1
7 Bearing housing . . . . . . . . . . . . . . . . . . . . . . . . . . 1
8 Felt ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
9 Hexagonal bolt M 12 x 45 DIN 931-8.8 . . . . . . . 1
Contact washer A 12 . . . . . . . . . . . . . . . . . . . . . . 1
10 Tab washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
11 Castellated nut . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
12 Torque support . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
13 Hexagonal bolt M 12 x 20 DIN 933-8.8 . . . . . . . 4
14 V-belt pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
15 Hexagonal bolt
M 12 x 35 DIN 933-10.9 VP . . . . . . . . . . . . . . . 18
16 Speed reduction drive . . . . . . . . . . . . . . . . . . . . . 1
17 Clamping washer . . . . . . . . . . . . . . . . . . . . . . . . . 1
18 Hexagonal bolt M 16 x 50 DIN 933-8.8 . . . . . . . 1
19 Plastic bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
20 Conical bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
21 V-belt pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
22 Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
