DESCRIPTION:

Claas Liner 770 Operator’s Manual – PDF DOWNLOAD

General safety and accident prevention regulations
Basic rule
Always check the operating and road safety of tractor and machine before starting up.
General:
In addition to the instructions contained in this operator’s manual, also observe the general safety and accident preventive regulations. The warning and instruction decals placed on the machine provide important recommendations for safe operation. These instructions involve your safety – oberve them at all times.

• Always comply with local traffic regulations when driving on public roads. Before starting work, familiarize yourself with all the controls and instruments and theirfunctions. Duringworkorroadtravel it is too late. Clothing worn by the operator must be close-fitting.
• Avoid wearing loose jackets, shirts or ties. Prevent fires by keeping the machine clean. Before moving away, always check the immediatevicinityof the machine (e.g. for children).
• Ensure adequate visibility. No riders are allowed on the machine during operation and during transport. Always connect the implement correctly to the tractor and connect and secure the machine to the prescribed couplings. Always place the jack in the appropriate position when hitching and unhitching the machine (stability).

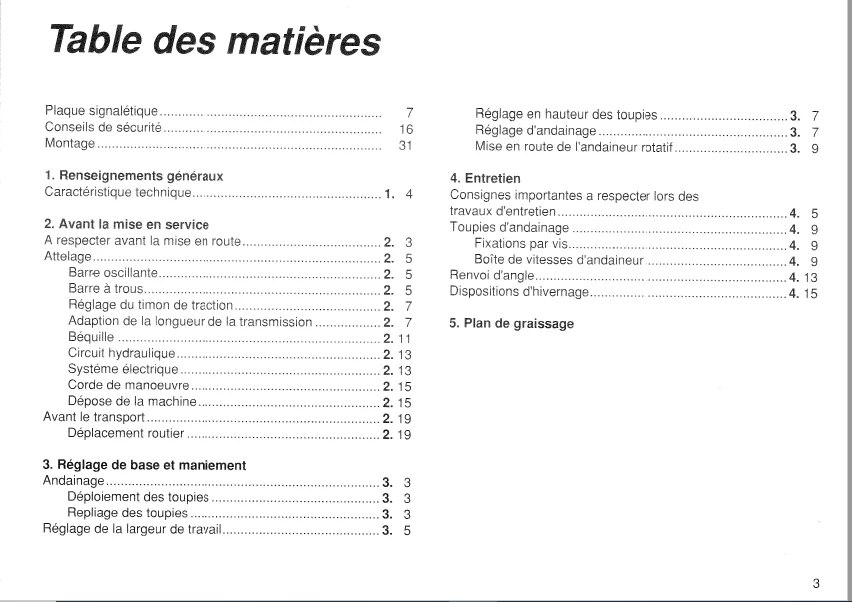

TABLE OF CONTENTS:

Claas Liner 770 Operator’s Manual – PDF DOWNLOAD

Identification plate 6
Safety advice 12
Assembly 30
1 General information
Specifications 1 3
2 Before operation
Pre-operation checks 2 2
Attachment to the tractor 2 4
Swinging drawbar 2 4
Linkage drawbar 2 4
Adjusting drawbar 2 6
Modifying the PTO shaft length to suit the tractor 2 6
Stand 2 1 O
Hydraulics 2 12
Electric system 2 12
Pull rope 2 14
Storing the machine 2 14
Prior to road transport 2 18
Road transport 2 18
3 Basic adjustements and operation
Swathing 3 2
Unfolding the rotors 3 2
Raising the rotors 3 2
Adjusting the working width 3 4
Rotor height adjustment 3 6
Swath forming adjustment 3 6
Putting the swather to work 3 8
4 Maintenance
Important maintenance instructions 4 4
Swathing rotors 4 8
Bolt fasteners 4 8
Swather gear box 4 8
Angle drive 4 12
Winter storage instructions 4 14
5 lubrication chart
