Claas Maize Picker 8 rows 75 cm Operator’s Manual FR_DE_EN_NL_IT – PDF DOWNLOAD

Description

Claas Maize Picker 8 rows 75 cm Operator’s Manual FR_DE_EN_NL_IT – PDF DOWNLOAD

DESCRIPTION:

Claas Maize Picker 8 rows 75 cm Operator’s Manual FR_DE_EN_NL_IT – PDF DOWNLOAD

INTRODUCTION :

• This manual provides information on the use, setting and servicing of the CLAAS Maize picker. The advice on the care and servicing should be followed in order to obtain maximum performance and long service. The assembly and the regular inspection of your machine should be performed by your special ist workshop.
• Neglect in maintenance and service and incorrect use will result in poor machine efficiency and lass of valuable time. By correct operation and servicing you can make full use of the technical knowledge and experience with which your machine has been designed.

Important:

The instructions contained in this manual should be read carefully and observed by all persons concerned with the operation, maintenance and inspection of this machine in order to prevent accidents. Especially the »Safety Rules« and the »Pior to Operation« sections should be read with the utmost care and adhered to, in the operators manual CLAAS LEXION.

• The use of spare parts, accessories and ancillary equipment which are not originally manufactured or not checked and approved by CLAAS, can change the specified design characteristics of the CLAAS machine or can detract from its functional performance with a possible adverse effect on the active and/or passive safety of the machine and its occupational safety standards (accident prevention).
• CLAAS are in no way liable for any damage or personal injury caused through the use of other than original or approved CLAAS parts, accessories and ancillary equipment.

TABLE OF CONTENTS:

Claas Maize Picker 8 rows 75 cm Operator’s Manual FR_DE_EN_NL_IT – PDF DOWNLOAD

Identification Plate .. 7
Decals with Warning Symbols .. 8
1. Technical Data
TechnicalData ,. 1. 2
2. Before Operation
Coupling the maize picker 2. 2
Connecting the quick coupler 2. 2
Connecting the universal drive shafts 2. 4
Detaching the maize picker 2. 6
Straßentransport 2. 8
Ballast weights 2. 8
Installing and adjusting the gathering points 2. 8
Transporting the picker head on a trailer 2.10
Raising the contre sheet metal covers ,. 2.12
Adjusting row spacings of snapping units 2.1
Sheet metal covers and gathering points 2.16
3. Operation
Adjusting tension of gathering chains 3. 2
Hydraulic snapping roll adjustment. 3. 2
Correcting the basic adjustment of teh snapping
plates .. 3. 2
Adjusting snapping roll spacing 3. 6
Adjusting stripper knives . 3. 6
Adjusting guide plates 3. 6
Drives ,. 3. 8
Changing speed of snapping rolls and gathering
chains ,. ,. …3. 8
Feed auger . .. 3.10
Torque overload c1utch of snapping unit drive 3.10
Feed auger slip clutch……… .. .. 3.1 0
4. Maintenance
Important Maintenance Instructions ,. ..4. 2
Tensioning teh gathering chains 4. 6
Setting the spring-loaded cylinder and tensioning
the chain ,….. .. ..4. 6
Adusting the stripper knives . 4. 6
Oil level Oil change .4. 8
5. lubrication Chart

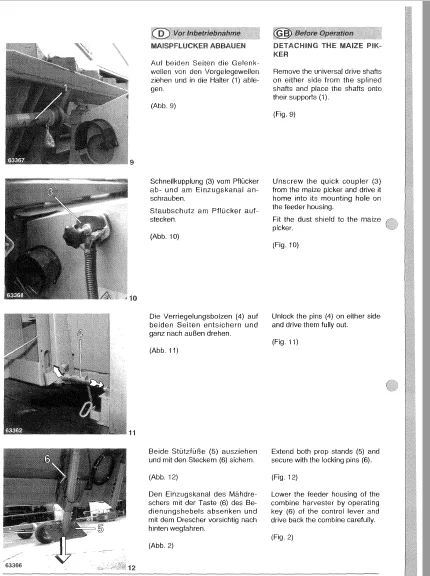

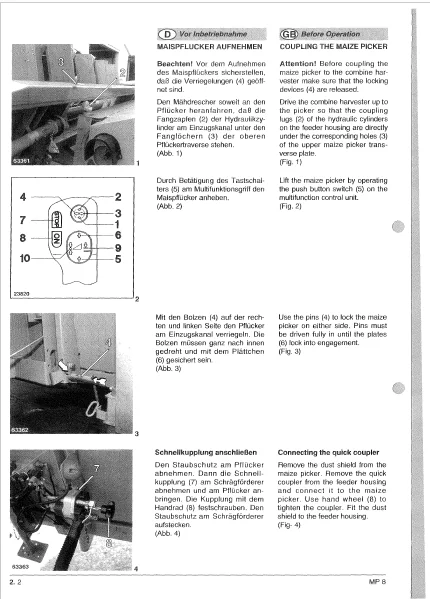

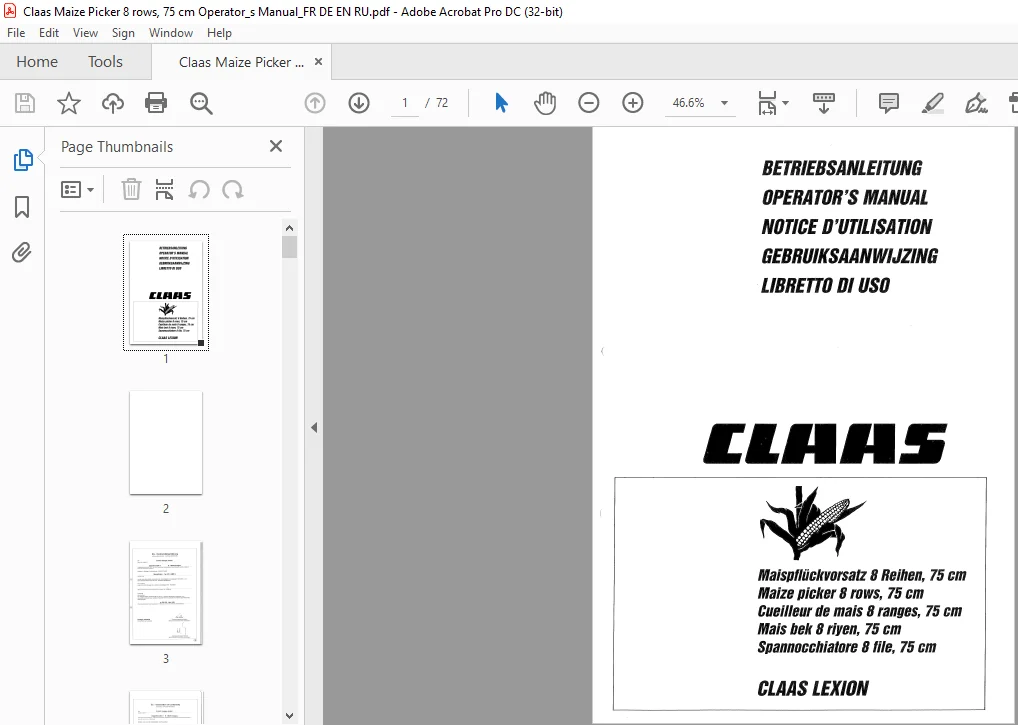

IMAGES PREVIEW OF THE MANUAL:
