Claas Markant 65 Assembly Manual – PDF DOWNLOAD

Description

Claas Markant 65 Assembly Manual – PDF DOWNLOAD

DESCRIPTION:

Claas Markant 65 Assembly Manual – PDF DOWNLOAD

Forward :

This manual shows how to assemble the baler from the packing status which you take out from container. Please read carefully and follow the instruction. Please be careful that the method of assembly and parts are different based on Option code.

TABLE OF CONTENTS:

Claas Markant 65 Assembly Manual – PDF DOWNLOAD

1. Dissembled parts position 3
2. Assembly
Description Option code Page

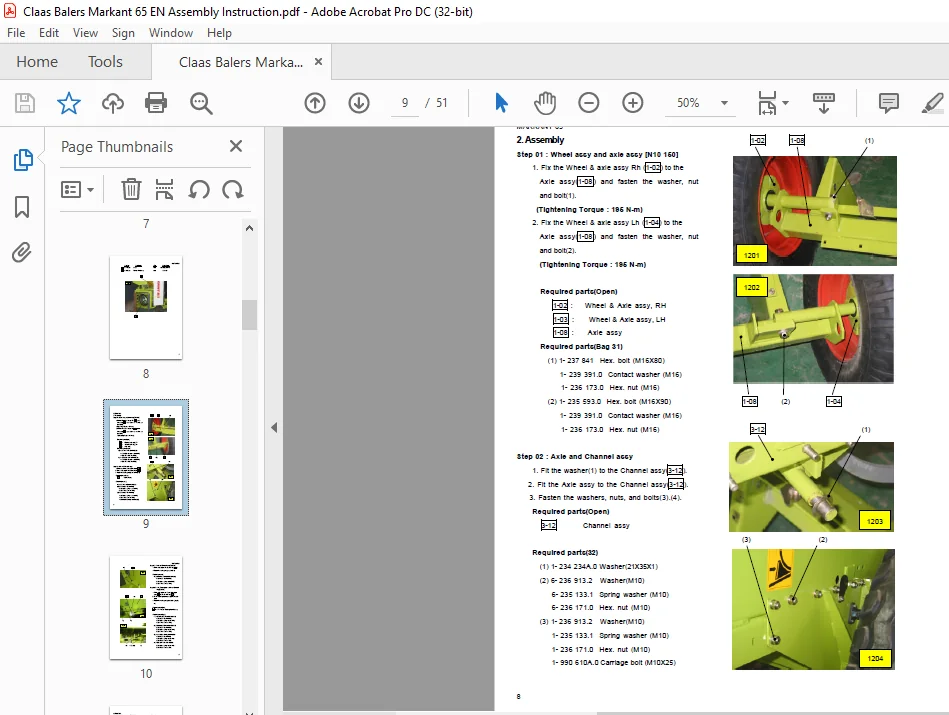

Step 01.: Wheel assy and axle assy [N10 150] 8
Step 02 : Axle and Channel assy 8
Step 03A : Axle and Channel assy [H02 010] 9
Step 03B : Axle, Return guide roller and Channel assy [H02 040] 9
Step 04 : Drawbar shaft assy [M02 060] 10
Step 05 : Pull rod 10
Step 06 : Move the bolt and nut 11
Step 07 : Pressure plate and Point Lh, Rh 11
Step 08 : Housing assy 12
Step 09 : Leveling rake 14
Step 10-1 : Guard plate [H02 010] 15
Step 10-2 : Guard plate [H02 040] 15
Step 10-3 : Front & rear side of Guard plate 16
Step 11 : Spring of Hay dog(top) 16
Step 12 : Drive shaft 16
Step 13 : Tension rod 18

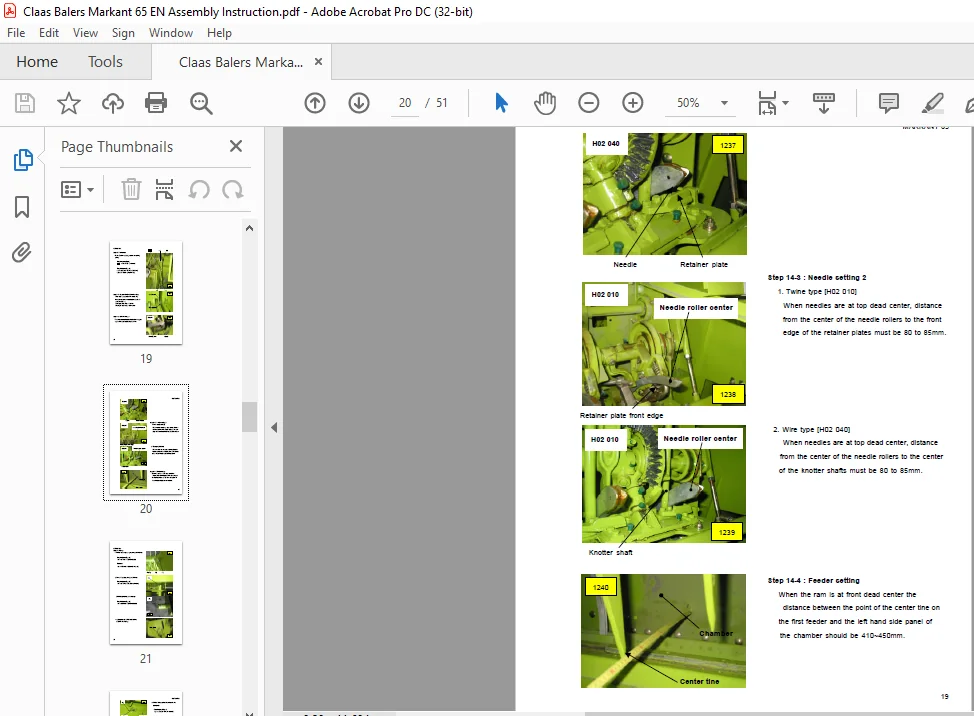

Step 14-1 : Knotter shaft and Needle setting 18
Step 14-2 : Needle setting 1 18
Step 14-3 : Needle setting 2 19
Step 14-4 : Feeder setting 19
Step 15 : Pick-up 20
Step 16 : Mech’ pick-up lift [B04 010] 22
Step 17 : Pick-up wheel [B03 110] 24
Step 18A: Needle guard & Cover [H06 010] 25
Step 18B: Needle guard & Cover [H06 020] 26
Description Option code Page
Step 19: Side panel 27
Step 20 : Bar(Lh) and Bar(Rh) 27
Step 21 : Lever bearing assy 28
Step 22 : Straw wheel assy 29
Step 23A : Brace [H02 010] 29
Step 23B : Brace and Wire box [H02 040] 30
Step 24 : Needle brake assy 31
Step 25 : Support bracket 31
Step 26 : Cross beam 31
Step 27 : Angle assy and Plate, Shim 32
Step 28 : Pressure plate, Flat spring and Crank assy 32
Step 29 : Cover(upper) 33
Step 30 : Spring adapter assy and Crank assy 33
Step 31 : Bale chute [G04 020] 34
Step 32 : Angle and Guard plate 34
Step 33 : Cover [H02 040], [S02 010] 35
Step 34 : Knotter cover bracket 36
Step 35 : Spring assy [H02 010] 36
Step 36 : Slip resist. Strip [H02 010] 37
Step 37 : Hood 37
Step 38 : Tool box 38
Step 39-1 : Flywheel Pulley [S02 010, S02 120] 39
Step 39-2 : Flywheel 39
Step 40 : Drive shaft [M02 060] 40
Step 41 : Hanger 43
Step 42 : Hyd’ Drawbar adjust [M01 050] 43
Step 43 : Hyd’ pick-up lift [B04 020] 44
Step 44 : Legal equipment, Standard [S02 010] 45
Step 45 : Legal equipment, Overseas [S02 120] 47
Step 46 : Road light [S03 010] 47
1. Dissembled parts position
Part No. Description Q’ty Option Code
1-01 : 814 109.1 Hood assy 1 pcs
1-02 : Wheel & axle assy, Rh 1 pcs N10 150
1-03 : 814 282.0 Cover 1 pcs
1-04 : Wheel & axle assy, Lh 1 pcs N10 150
1-05 : 814 182.0 Needle guard 1 pcs H06 010
813 478.1 Needle guard 1 pcs H06 020
1-06 : 814 088.0 Side panel, Lh 1 pcs
1-07 : 814 090.0 Side panel, Lh 1 pcs
1-08 : Axle assy 1 pcs
1-09 : 814 494.0 Drawbar shaft assy 1 pcs M02

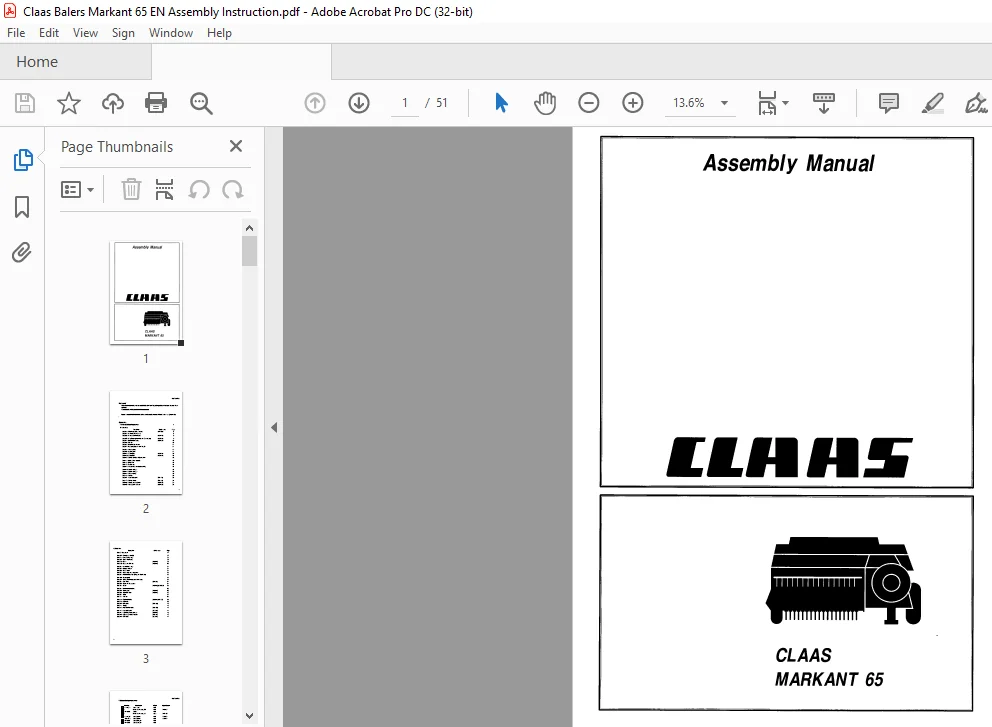

IMAGES PREVIEW OF THE MANUAL:
