CLAAS MEDION 340-310 radiator chaff suction Fitting Instructions Manual

Description

CLAAS MEDION 340-310 radiator chaff suction Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS MEDION 340-310 radiator chaff suction Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION :

• These instructions describe the safe and time saving work sequence for retrofitting the radiator chaff suction. Retrofitting of the MEDION 330 / 310 combine harvesters, with the supplementary kit part no. 545 635.0, is possible from the following machine number ranges: 93200011.
• Retrofitting of the MEDION 340 combine harvesters, with the supplementary kit part no. 545 637.0, is possible from the following machine number ranges: 93400011.

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied.
• The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components.
• Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the parts no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLAAS MEDION 340-310 radiator chaff suction Fitting Instructions Manual – PDF DOWNLOAD

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General
information
Important 3 1
Identification of warnings and danger signs 3 2
Correct use 3 2
4 Shipping Package
Shipping Package 4 1
Supplementary kit 545 635 0 – MEDION 330/310
Supplementary kit 545 637 0* – MEDION 340 4 1
5 Installation
Radiator chaff suction 5 1
Preparing the installation 5 1
Mounting the suction blower (3) 5 2
Mounting and tightening of the V-belt (12) 5 4
Mounting the deflector plate (16) 5 5
Installing the suction hose (21) 5 8
Preparing and performing the test run 5 9

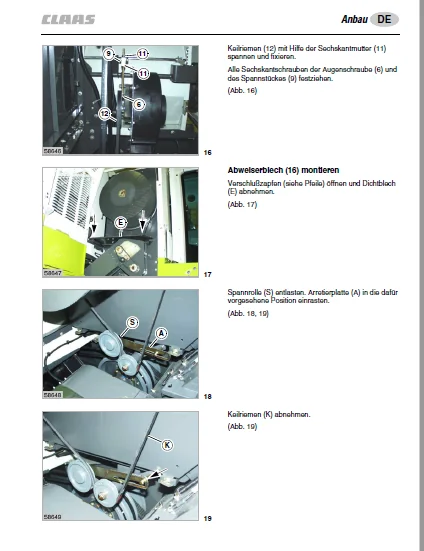

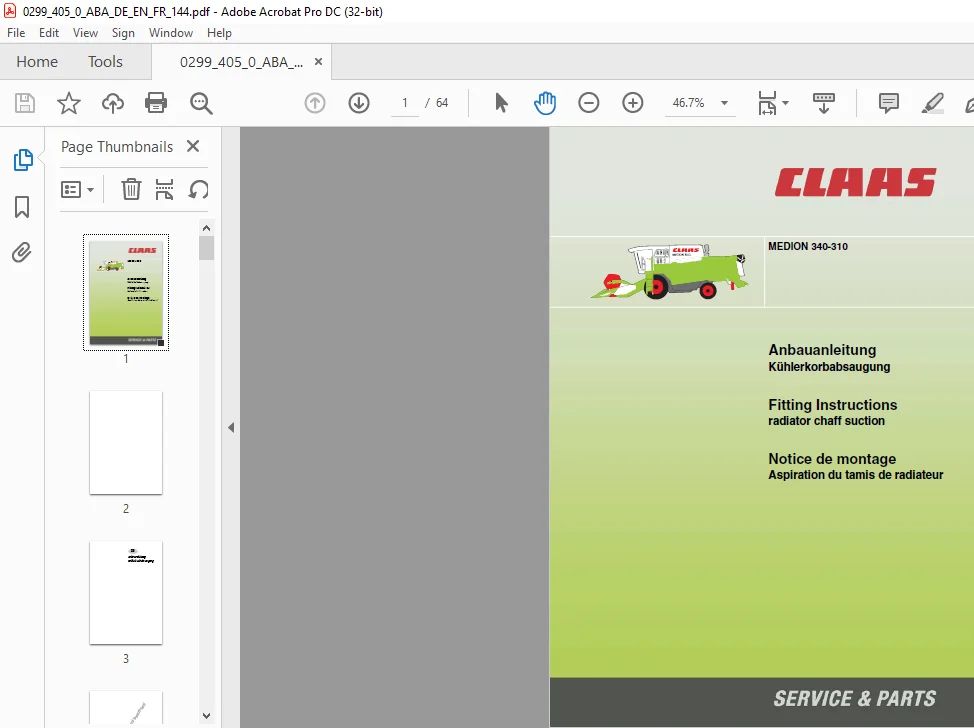

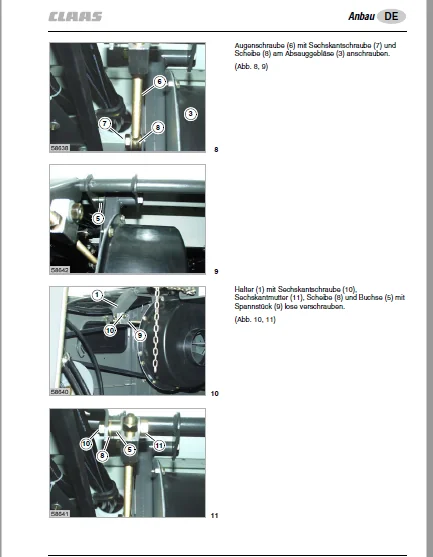

IMAGES PREVIEW OF THE MANUAL:
