CLAAS MEDION 340/330/310 3-D-Control Unit for Sieve Pan FITTING INSTRUCTIONS MANUAL_DE_EN_FR

Description

CLAAS MEDION 340/330/310 3-D-Control Unit for Sieve Pan FITTING INSTRUCTIONS MANUAL_DE_EN_FR

DESCRIPTION:

CLAAS MEDION 340/330/310 3-D-Control Unit for Sieve Pan FITTING INSTRUCTIONS MANUAL_DE_EN_FR

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the 3-D control unit for the sieve pan. Retrofitting of the MEDION 340 and MEDION 330/310 combine harvesters, with the supplementary kit part no. 759 704.0, is possible from the following machine number ranges: 93400011 and 93200011. The standard mounting time is approx. 3 man hour. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.

General
information
IMPORTANT

• The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.
• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied.
• The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number.
• Additional part specifications are the part no., description, measurements, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number).
• Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel.

TABLE OF CONTENTS:

CLAAS MEDION 340/330/310 3-D-Control Unit for Sieve Pan FITTING INSTRUCTIONS MANUAL_DE_EN_FR

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 759 7040 41
5 Installation
Fitting the 3-D control for the sieve pan 51
Preparing the installation 51
Removing the rocker arm 51
Fitting the holder with accessories 52
Fitting the pendulum control unit with accessories 55
Creating vacuum in the hydraulic lines 57
Removing the cab rear panel 58
Setting the sieve pan to the middle position 511
Setting the 3-D control for the sieve pan 513
Setting the pivot arm 515
Bleeding the pendulum control (30) 516
Removing the guiding plates 516
Preparing and performing the test run 516

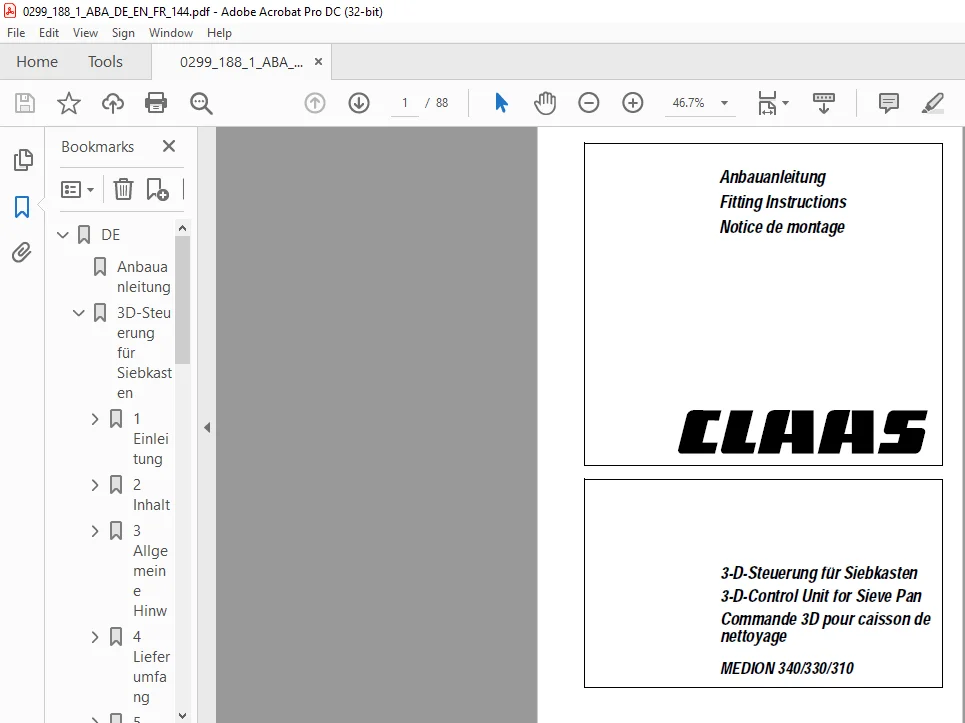

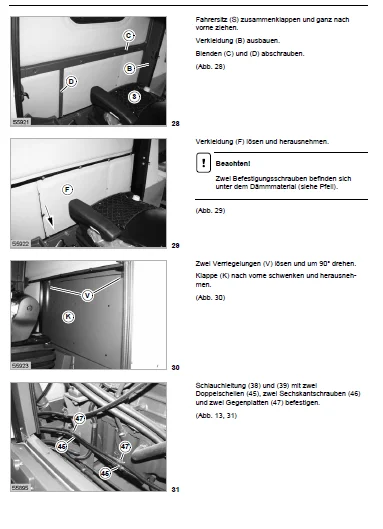

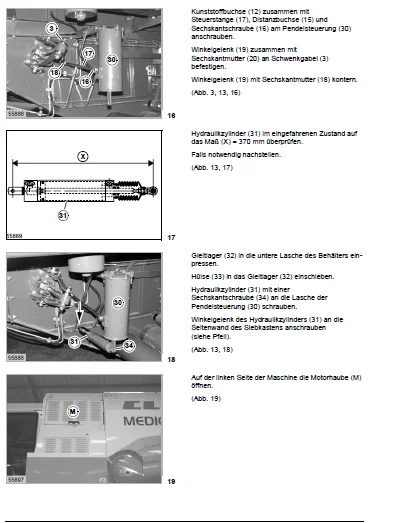

IMAGES PREVIEW OF THE MANUAL:

CLAAS MEDION 340/330/310 3-D-CONTROL UNIT FOR SIEVE PAN FITTING INSTRUCTIONS MANUAL_DE_EN_FR:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
