CLAAS MEDION 340/330/310 MEGA 208/204 Auto-Contour Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS MEDION 340/330/310 MEGA 208/204 Auto-Contour Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS MEDION 340/330/310 MEGA 208/204 Auto-Contour Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the Auto-Contour. Retrofitting of the MEDION 340 and MEGA 208 combine harvesters, with the supplementary kit part no 058 064.2, is possible from the following machine number ranges: from 93400011 and from 94500011. Retrofitting of the MEDION 330/310 and MEGA 204 combine harvesters, with the supplementary kit part no. 058 082.2, is possible from the following machine number ranges: from 93200011, from 93500011 and up to 93600011. The standard mounting time is approx. 3.5 man hours for MEDION 340 and MEGA 208 and approx. 4.5 man hours for MEDION 330/310 and MEGA 204. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.
TABLE OF CONTENTS:

CLAAS MEDION 340/330/310 MEGA 208/204 Auto-Contour Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

CONTENTS
1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 058 0642 for MEDION 340
and MEGA 208 41
Supplementary kit 058 0822 for MEDION 330/310
and MEGA 204 41
5 Installation
Installing Auto-Contour 51
Preparing the installation 51
Fitting the hydraulic cylinder 51
Fitting the hydraulic lines under the feeder housing 56
Fitting the lock-up valve unit 56
Fitting the side hydraulic lines 57
Fitting the solenoid valve 59
Changing the module 512
Fitting the nominal value sender and the toggle switch 513
Putting on and adjusting the cutterbar drive belt 516
Bleeding the CLAAS Auto-Contour hydraulic cylinder 517
Checking hydraulic oil filling level 519
Preparing and performing the test run 520

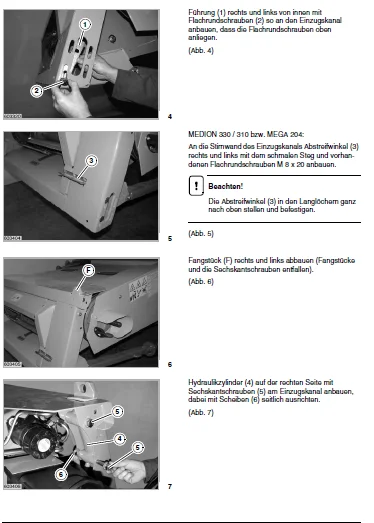

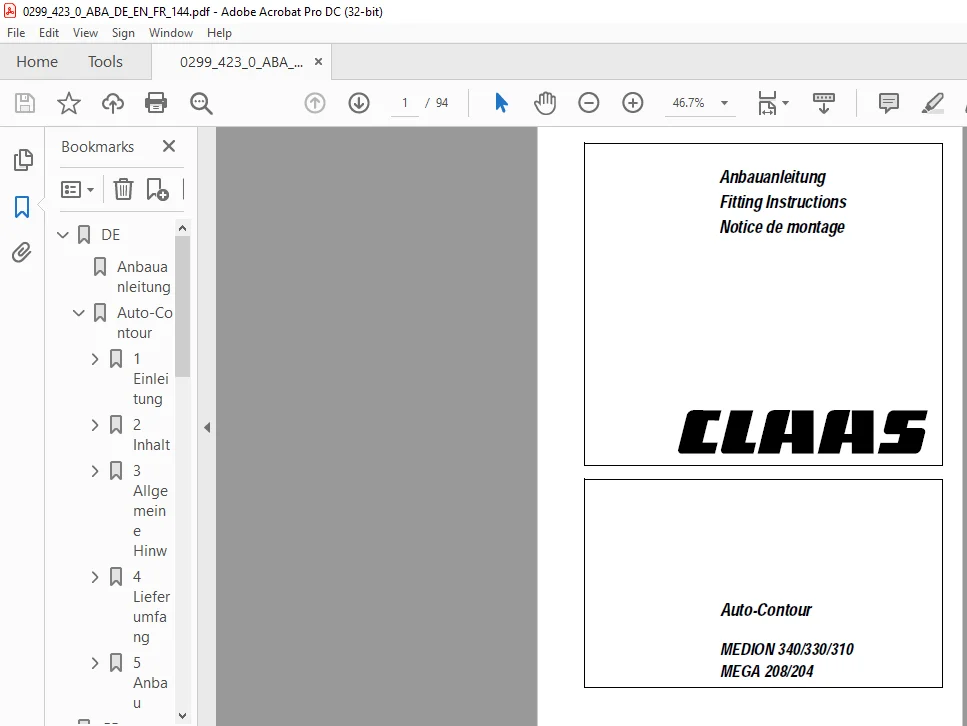

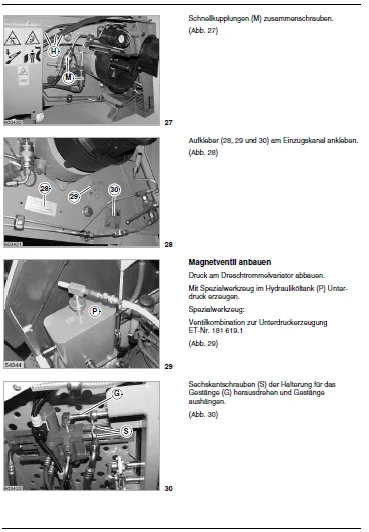

IMAGES PREVIEW OF THE MANUAL:
