CLAAS MEDION 340/330/310 MEGA 208/204 Hydraulic Reverse Drive Fitting instructions Manual_DE_EN_FR

Description

CLAAS MEDION 340/330/310 MEGA 208/204 Hydraulic Reverse Drive Fitting instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS MEDION 340/330/310 MEGA 208/204 Hydraulic Reverse Drive Fitting instructions Manual_DE_EN_FR

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the hydraulic reverse drive. Retrofitting of the MEDION 340 and MEGA 208 combine harvesters, with the supplementary kit part no. 517 344.2, is possible from the following machine number ranges: up to 93400324 and up to 94503251. Retrofitting of the MEDION 330/310 and MEGA 204 combine harvesters, with the supplementary kit part no. 517 343.2, is possible from the following machine number ranges: up to 93201207, up to 93503271 and up to 93600166. The standard mounting time is approx. 6 man hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.
TABLE OF CONTENTS:

CLAAS MEDION 340/330/310 MEGA 208/204 Hydraulic Reverse Drive Fitting instructions Manual_DE_EN_FR

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 517 3442 for MEDION 340
and MEGA 208 41
Supplementary kit 517 3432 for MEDION 330/310
and MEGA 204 41
5 Fitting
Installing the hydraulic reverse drive 51
Preparing the fitting 51
Dismounting the electrical reverse drive 51
Dismounting wiring loom for electrical reverse drive 53
Removing the cutterbar drive belt (A) 54
Removing intermediate drive shaft 56
Installing the new intermediate drive shaft (1) 58
Pre-assembling the hydraulic reverse drive 510
Installing the hydraulic reverse drive 511
Adjusting hydraulic cylinder (2) 516
Installing 4/2 way valve (3) 517
Connecting hydraulic oil hoses (5) and (7) 518
Removing valve block 519
Installing wiring loom (21) 522
Putting on and adjusting the cutterbar drive belt 525
Checking hydraulic oil filling level 527
Preparing and performing the test run 527

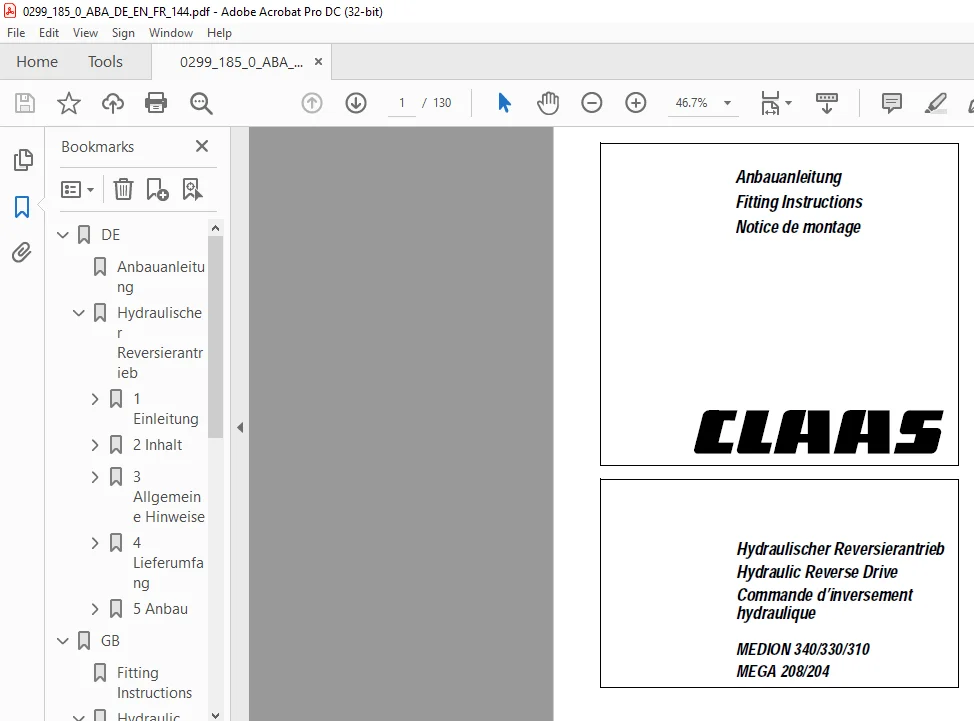

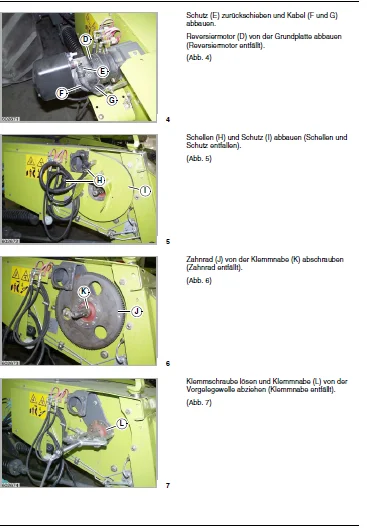

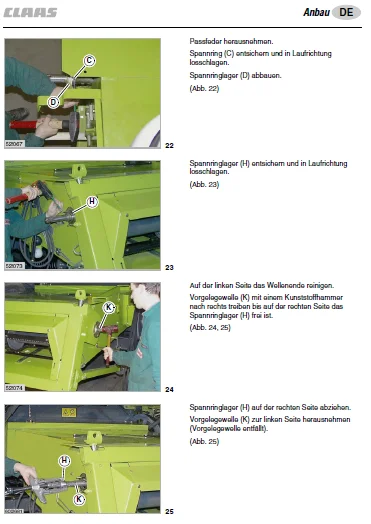

IMAGES PREVIEW OF THE MANUAL:

CLAAS MEDION 340/330/310 MEGA 208/204 HYDRAULIC REVERSE DRIVE FITTING INSTRUCTIONS MANUAL_DE_EN_FR:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
