DESCRIPTION:

CLAAS MEDION CONSPEED 6-75 C CONSPEED 6-70 C Lock-up Valve Unit Retrofitting Kit Conversion Instructio Manual _EN_DE

INTRODUCTION

These instructions describe a safe and timesaving procedure for the retrofitting kit ET-No. 496 166.0 (Lock-up valve unit). Please read this manual thoroughly before starting work! Pay particular attention to the section »General instructions«. The following machines can be converted:

CLAAS maize picker:
on MEDION
CONSPEED 6-75 C
CONSPEED 6-70 C

The shipping package is listed on page 4.2. Before starting with the work, ensure that all parts of the retrofitting kit have been supplied. The “Shipping package” list is also considered a supplement to the spare parts list. Components, which are not needed for the retrofit, must be disposed of in an environmentally compatible manner.

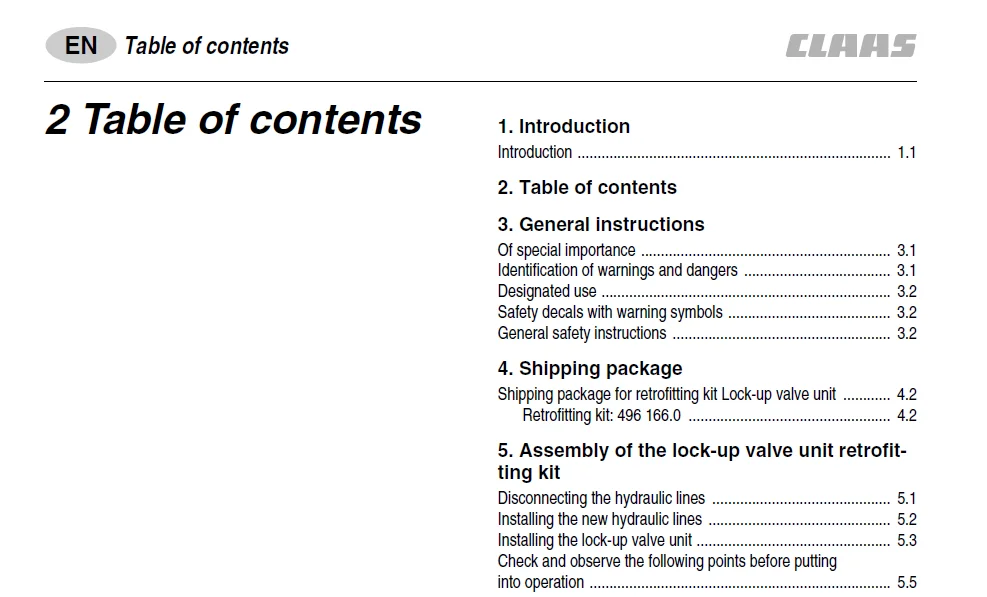

TABLE OF CONTENTS:

CLAAS MEDION CONSPEED 6-75 C CONSPEED 6-70 C Lock-up Valve Unit Retrofitting Kit Conversion Instructio Manual _EN_DE

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping package for retrofitting kit Lock-up valve unit 42
Retrofitting kit: 496 1660 42
5 Assembly of the lock-up valve unit retrofitting
kit
Disconnecting the hydraulic lines 51
Installing the new hydraulic lines 52
Installing the lock-up valve unit 53
Check and observe the following points before putting
into operation 55

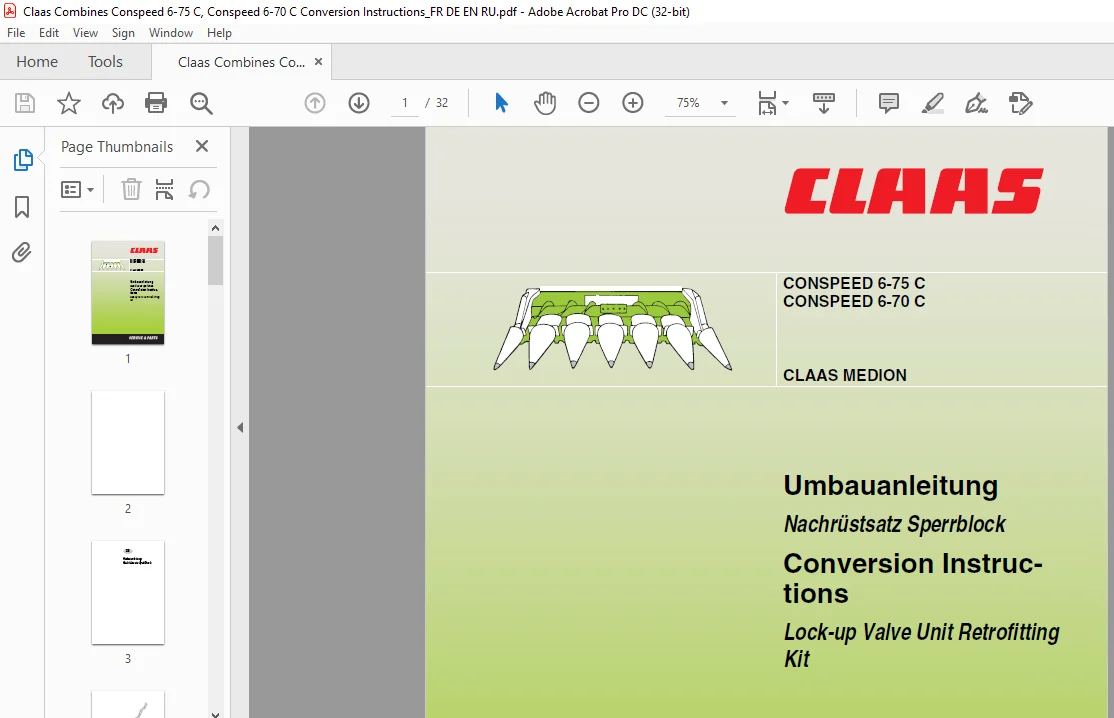

IMAGES PREVIEW OF THE MANUAL:
