CLAAS MEDION DOMINATOR Fan Blast Reduction Fitting Instructions Manual_DE_EN_FR

Description

CLAAS MEDION DOMINATOR Fan Blast Reduction Fitting Instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS MEDION DOMINATOR Fan Blast Reduction Fitting Instructions Manual_DE_EN_FR

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the blast reduction kit for the MEDION and DOMINATOR combine harvesters. Range of machine numbers: From 94500011, from 93400011 and from 09400011 for the supplementary kit parts no. 304 989.1. From 93500011 (not MEGA 203) for the supplementary kit parts no. 304 988.1. From 93500011 (not MEGA 204), from 93200011 and from 09200011 for the supplementary kit parts no. 058 062.0. Service time schedule: Approx. 1.5 man-hour for parts no.parts no. 304 989.1. Approx. 1.3 man-hour for parts no. 304 988.1. Approx. 0.3 man-hour for parts no. 058 062.0. See page 4.1 for the shipping package. Observe the »Safety rules« in the applicable operator’s manual
TABLE OF CONTENTS:

CLAAS MEDION DOMINATOR Fan Blast Reduction Fitting Instructions Manual_DE_EN_FR

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use of combine 32

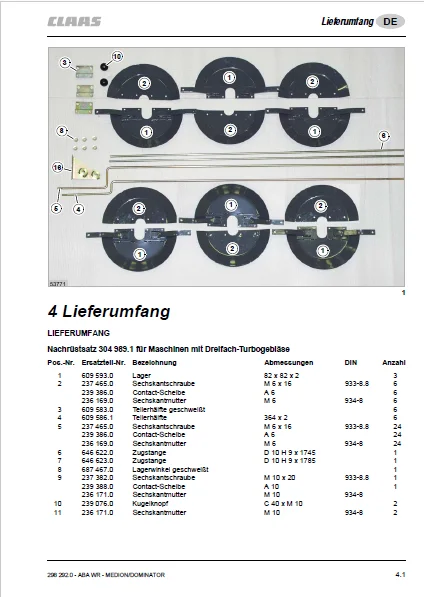

4 Shipping package
Shipping Package 41
Supplementary kit 304 9891 for machines
with triple-turbo fans 41
Supplementary kit 304 9881 for machines
with dual-turbo fans 42
Supplementary kit 304 9891 for machines
with barrel type fans 43
5 Installation
Fitting blast reduction for machines with turbo fans 51
Preparing the installation 51
Setting up blast reduction 54
Fitting safety features ready for operation 54
Adjusting blast reduction 55
Fitting blast reduction for machines with barrel type fans 56
Preparing the installation 56
Fitting safety features ready for operation 57
Adjusting blast reduction 58

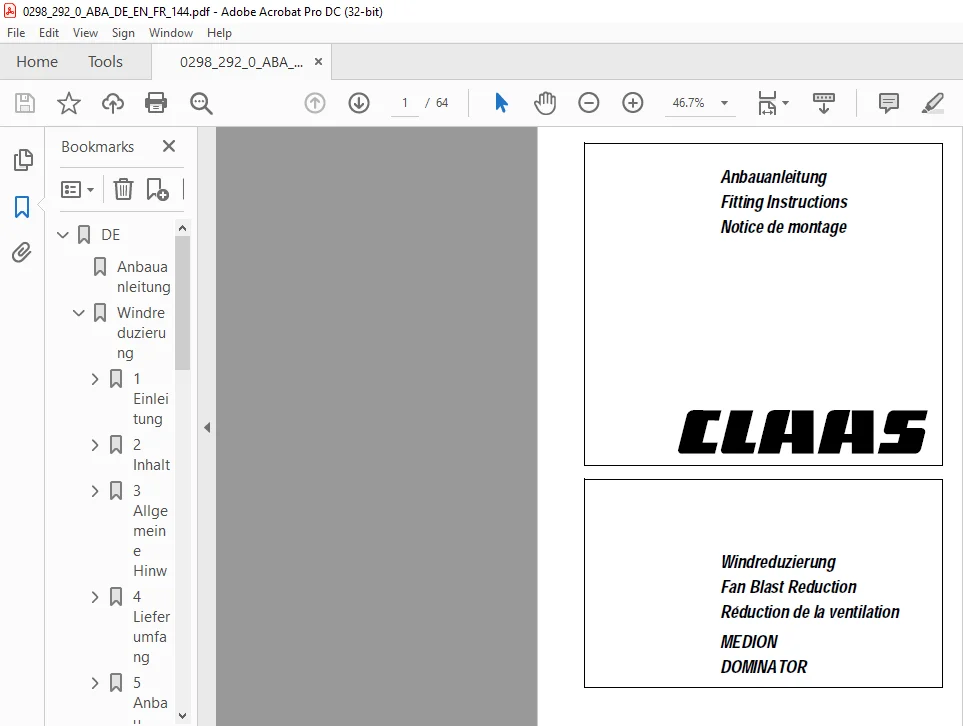

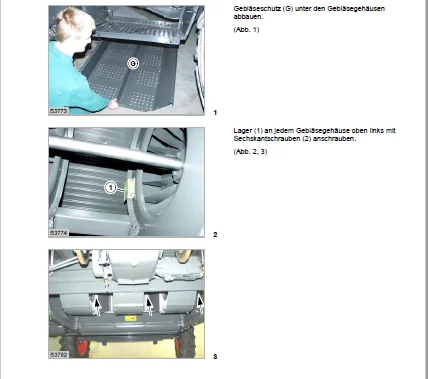

IMAGES PREVIEW OF THE MANUAL:

CLAAS MEDION DOMINATOR FAN BLAST REDUCTION FITTING INSTRUCTIONS MANUAL_DE_EN_FR:
