Claas Miscellaneous HYDRO-TESTER Operator’s Manual FR_DE_EN_RU – PDF DOWNLOAD

Description

Claas Miscellaneous HYDRO-TESTER Operator’s Manual FR_DE_EN_RU – PDF DOWNLOAD

DESCRIPTION:

Claas Miscellaneous HYDRO-TESTER Operator’s Manual FR_DE_EN_RU – PDF DOWNLOAD

Safety
Please obtain the following regulations when operating the instrument.
1.1 General safety and warning hints
• Never cut, damage or modify the connection cables of the power pack and do not place things on it.
• Never touch the power pack with wet or moist hands.
• Only connect the power pack to power supplies for which it is suited (see technical data).
• Unplug the mains cable during a thunderstorm.
• Unplug the mains cable if you determine smoke or smell, or if the mains cable is damaged.
• Assure sufficient grounding of your installations. Inadequate grounding may lead to measuring peaks.
1.2 Hints for the use of the Hydro-Tester
• Never expose the instrument to excessive heat or moisture; obtain the technical data.
• Do not store the instrument in humid or dusty locations or at temperatures below freezing point.
• Never dip the instrument into water or other liquids. Never let liquids come into the instrument.
• Never open the instrument.
• Do not use the instrument after it fell down or the housing is damaged.
• Avoid strong magnetic fields. Keep distance of electric motors or other instruments that generate electromagnetic
fields. Strong magnetic fields may cause malfunctions and influence measuring values.
• Avoid the formation of condensed water. If condensed water has formated you should let the instrument acclimate
before you switch it on. Otherwise it could be damaged.

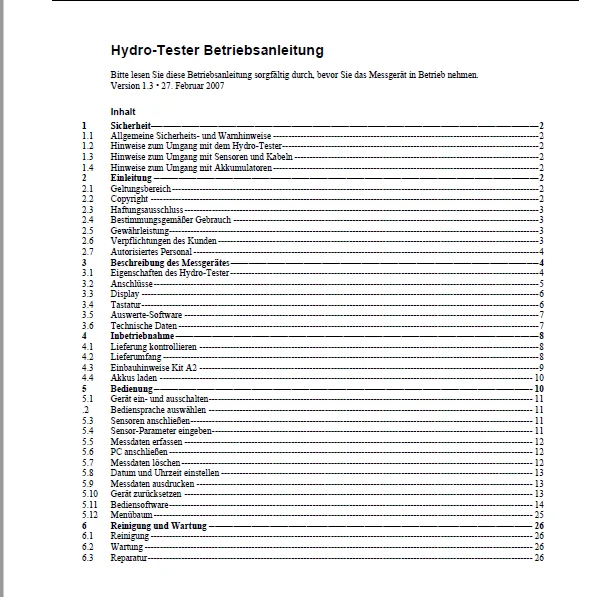

TABLE OF CONTENTS:

Claas Miscellaneous HYDRO-TESTER Operator’s Manual FR_DE_EN_RU – PDF DOWNLOAD

1 Safety 2
1 1 General safety and warning hints 2
1 2 Hints for the use of the Hydro-Tester 2
1 3 Hints for the treatment of sensors and wires 2
1 4 Hints for the treatment of storage batteries 2
2 Introduction 2
2 1 Range of validity 2
2 2 Copyright 2
2 3 Limitation of liability 3
2 4 Use as agreed 3
2 5 Warranty regulations 3
2 6 Obligations of the customer 3
2 7 Authorized staff 4
3 Description of the measuring instrument 4
3 1 Features of the Hydro-Tester 4
3 2 Connectors 5
3 3 Display 6
3 4 Keyboard 6
3 5 Evaluation software 7
3 6 Technical data 7
4 Startup 8
4 1 Check delivery 8
4 2 Range of delivery 8
4 3 Mounting hints Kit A2 10
4 3 Charge batteries 10
5 Operation 11
5 1 Switch the instrument on and off 11
5 2 Select language 11
5 3 Connect sensors 11
5 4 Program sensor parameters 12
5 5 Record measurement data 12
5 6 Connect a PC 12
5 7 Delete measurement data 13
5 8 Set date and time 13
5 9 Print measuring data 13
5 10 Reset instrument 14
5 11 Operation software 14

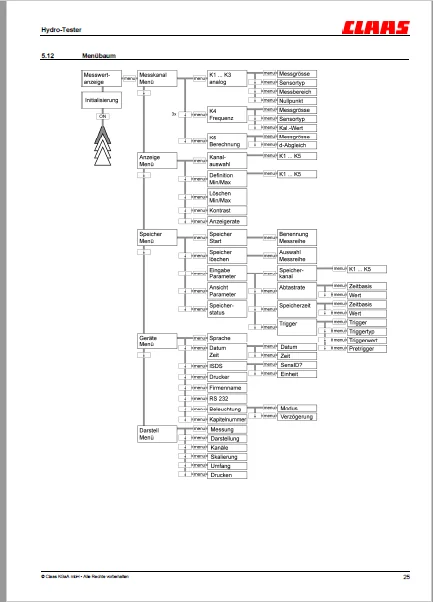

5 12 Menu tree 25
6 Cleaning and maintenance 26
6 1 Cleaning 26
6 2 Maintenance 26
6 3 Repair 26

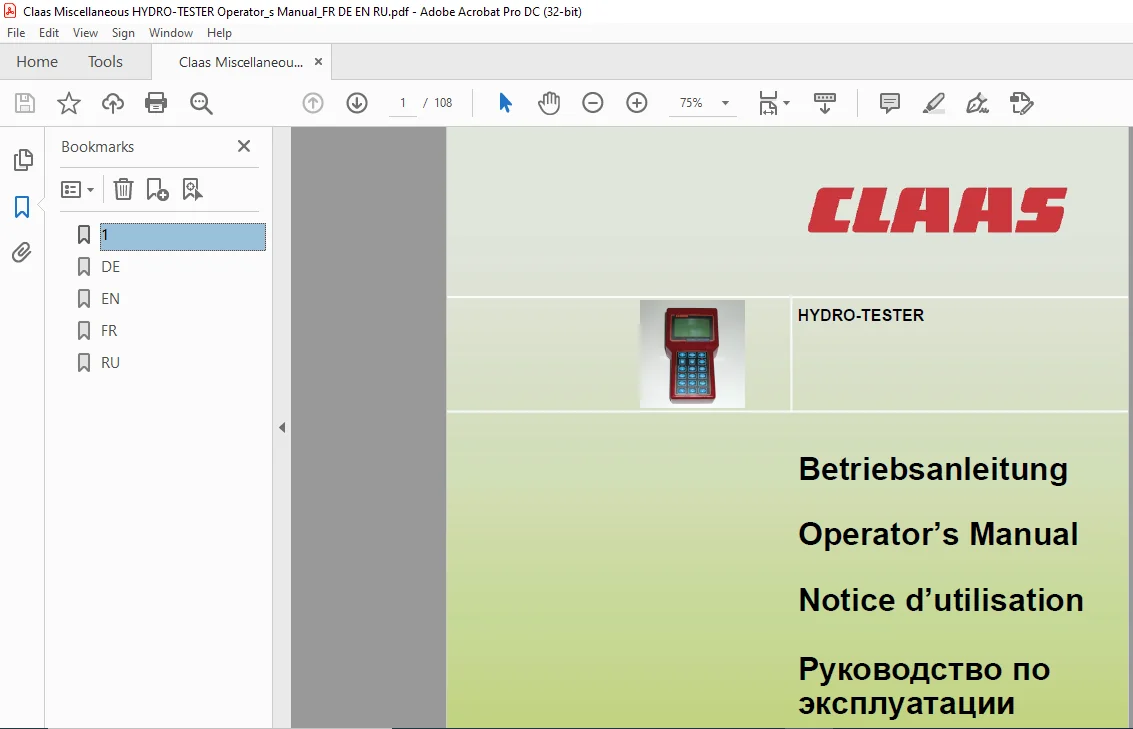

IMAGES PREVIEW OF THE MANUAL:

CLAAS MISCELLANEOUS HYDRO-TESTER OPERATOR’S MANUAL FR_DE_EN_RU – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
