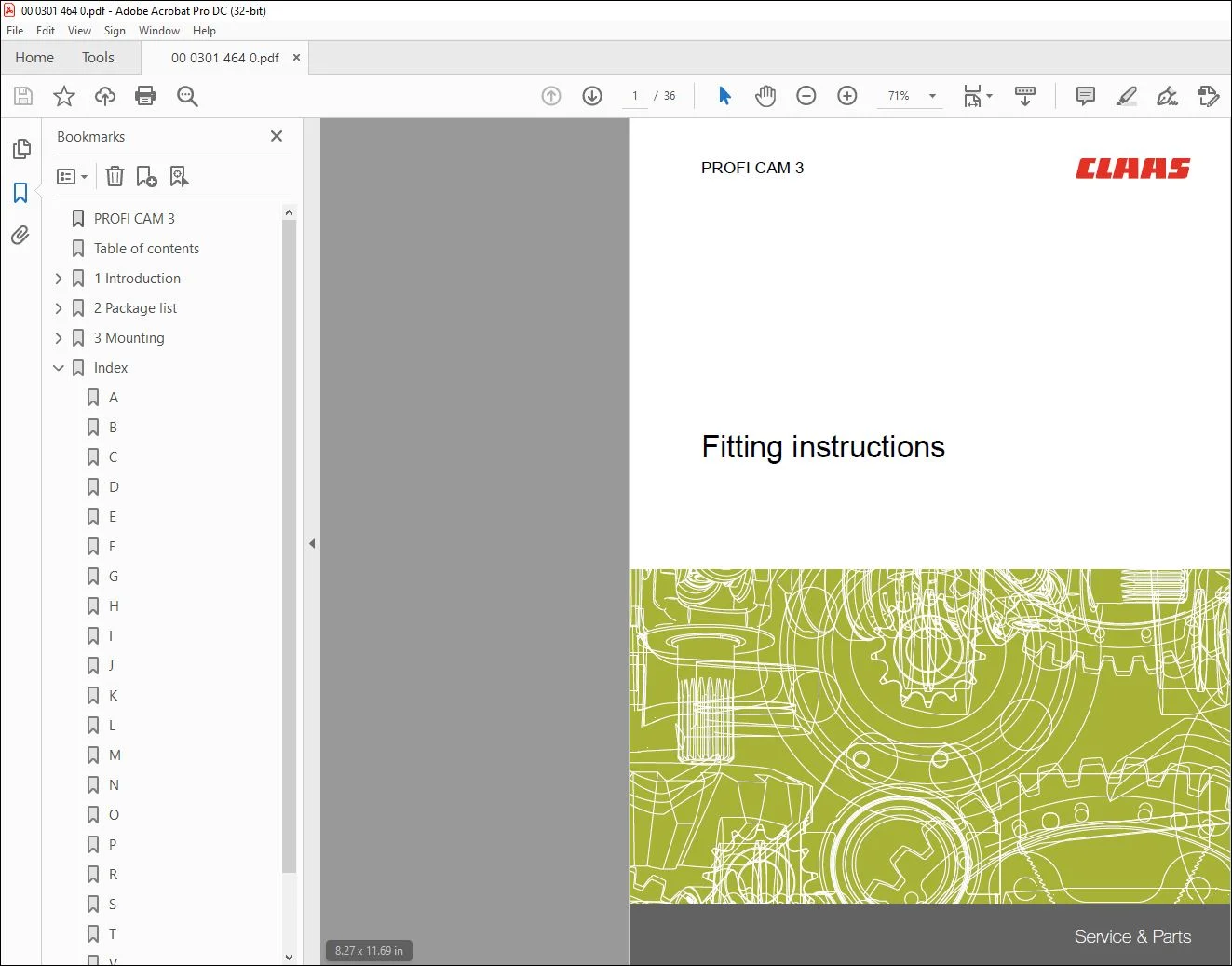

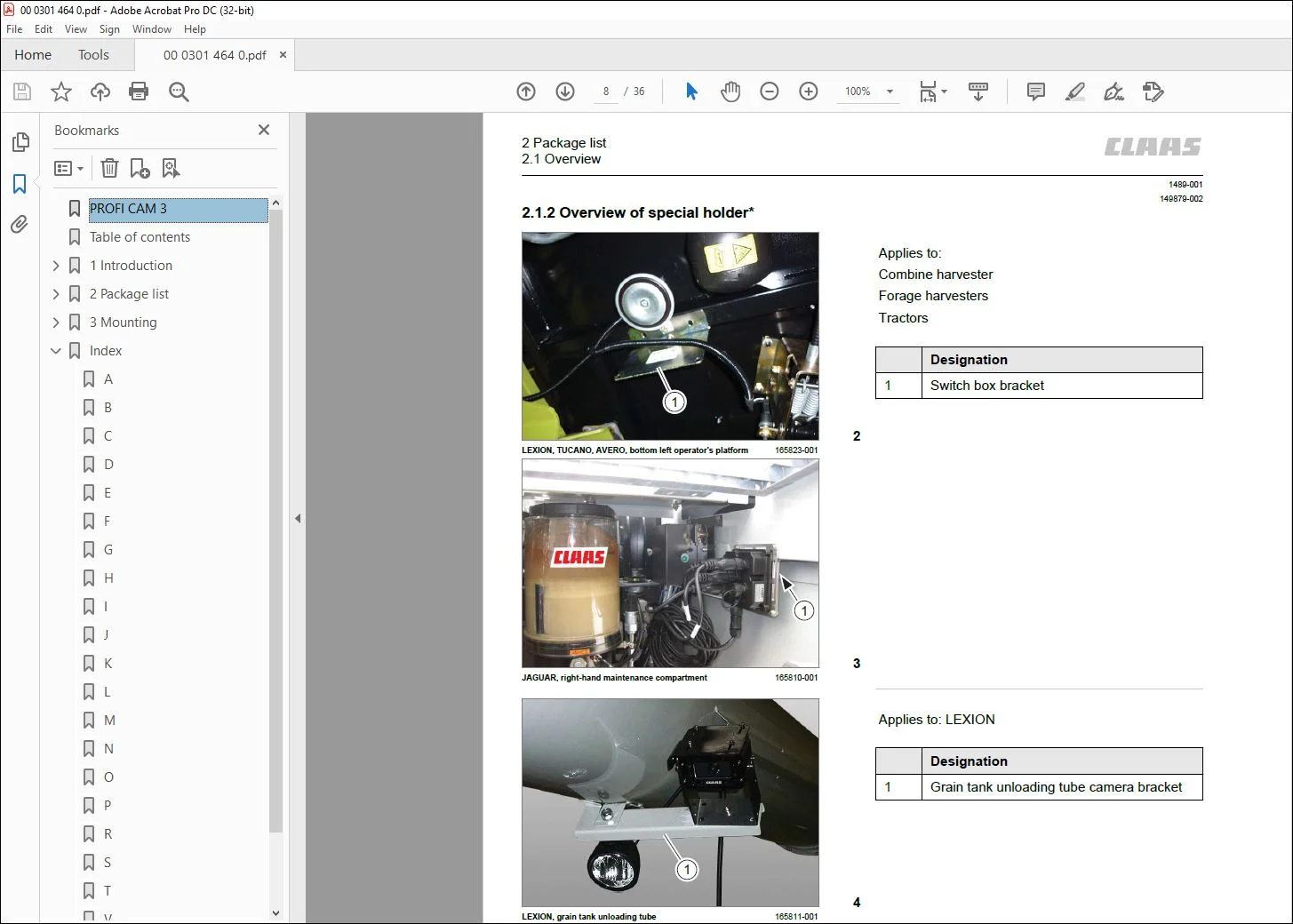

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS PROFI CAM 3 Fitting instructions Manual – PDF DOWNLOAD

1.3 Safety rules
180752-001
1.3.1 Fitting and conversion work
The work described in this manual may be carried out
only by a qualified specialist workshop with trained
skilled staff.
Prior to fitting or converting:
► Read and follow safety instructions in all
Operator’s Manuals:
Operator’s Manual of the machine or product
intended for fitting or installation
Operator’s Manual of the product to be fitted
or installed
► Observe the safety decals applied to the machine
and the product.
► Observe general safety instructions, accident
prevention rules and environmental protection
regulations.
► Stop and secure the machine and the
product. Page 11
► Carry out work beneath the raised machine,
beneath raised implements or raised components
only if these units are securely supported.
► Lower down the machine, front attachment and
hydraulically actuated components prior to any
work on the hydraulic system. Depressurize the
system.
► Relieve the pressure of pre-stressed energy
accumulators (springs, accumulators, hydraulic
cylinders) and of components pressurized by
energy accumulators.
After fitting or converting:
► Clean any soiled safety decals. Replace any
unidentifiable or missing safety decals.
► Refit any removed protective guards and other
components and set them to their protective
position before putting into operation again.
► Check if all bolts are tightly seated.
► Perform a function test

TABLE OF CONTENTS:

CLAAS PROFI CAM 3 Fitting instructions Manual – PDF DOWNLOAD

Table of contents
1 Introduction
11 Notes on the manual 4
12 Identifying warnings 5
13 Safety rules 6
2 Package list
21 Overview 7
3 Mounting
31 Check list 10
32 Switching off and securing the machine 11
33 Switch box 12
34 Monitor 15
35 Camera 20
Index 30
