CLAAS QUADRANT 2200 Installation Instructions Instructions Manual – PDF DOWNLOAD

Description

CLAAS QUADRANT 2200 Installation Instructions Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS QUADRANT 2200 Installation Instructions Instructions Manual – PDF DOWNLOAD

In order to avoid any dangers all information in these instructions must be read and applied by all persons using, servicing, repairing or inspecting this machine/attachment. Especially the »SAFETY RULES« in this manual should be read with the utmost care and the accident prevention regulations of your country should be observed. Before starting the work, establish if all tools and equipment are at hand. Compare the machine type/attachment type at hand with the list in section»Delivery list« and the delivered spare parts set.

• The specifications of the parts, e.g. for bolts, can be found in the “Delivery list”. In this list, every mounting part has a position number (pos.-no.). Parts such as nuts and contact washers do not have a position number. These parts belong to the position number of the bolt with which they are mounted. Further data describing these parts are the spare part-no., the designation, the dimensions, the DIN and the quantity.
• In the installation instructions, the current parts are marked with letters and the new parts with numbers (position numbers) for easier orientation. Texts and pictures have been kept neutral whenever possible. Text references point out the differences between the individual types. Technical data, dimensions and weights are given as an indication only. Following the policy of CLAAS to improve their products as technical developments continue, CLAAS reserve the right to make alterations. Responsibility for errors or omissions not accepted. Front, rear, right hand and left hand always refer to the machine as seen in the direction of forward travel

TABLE OF CONTENTS:

CLAAS QUADRANT 2200 Installation Instructions Instructions Manual – PDF DOWNLOAD

Contents 3
Safety regulations
Important note 7
Marking of warning and danger notes 8
General safety regulations and instructions for the
avoidance of accidents 8
Leaving the machine 8
Intended use 8
Installation instructions
Introduction 11
Scope of parts 12
Machine preparations 19
Machines with compressor 19
Removing the compressor 19
Remove the air filter 20
Remove air line 21
Machines without compressor 21
Remove air line 21
Remove the top compressed air reservoir and the
clamping belts 22
Remove air line with nozzles 22
Remove single gear pump 24
Pre-fitting turbofan 25
Hydraulic pre-fitting of tank 25
Pre-fitting on hydraulic oil motor 25
Pressure outlet 25
Port 25
Fitting turbofan 26
Pre-assemble and mount the duplex gear pump 26
Attach hydraulic oil hoses 27
Attach front hydraulic oil lines 27
Attach new hydraulic oil hoses 28
Remove the top propshaft 29
Remove the side guards and the gear bracket 30
Attach turbo blower 31
Attach valve 33
Attach hydraulic oil lines from the side 33
Assemble the propshaft 36
Fitting turbo fan guards 37
Fill hydraulic oil tanks 39
Filling hydraulic circuit tank 39
Top up gear oil 40
Prepare and perform a test run 41

CLAAS QUADRANT 2200 INSTALLATION INSTRUCTIONS INSTRUCTIONS MANUAL – PDF DOWNLOAD:

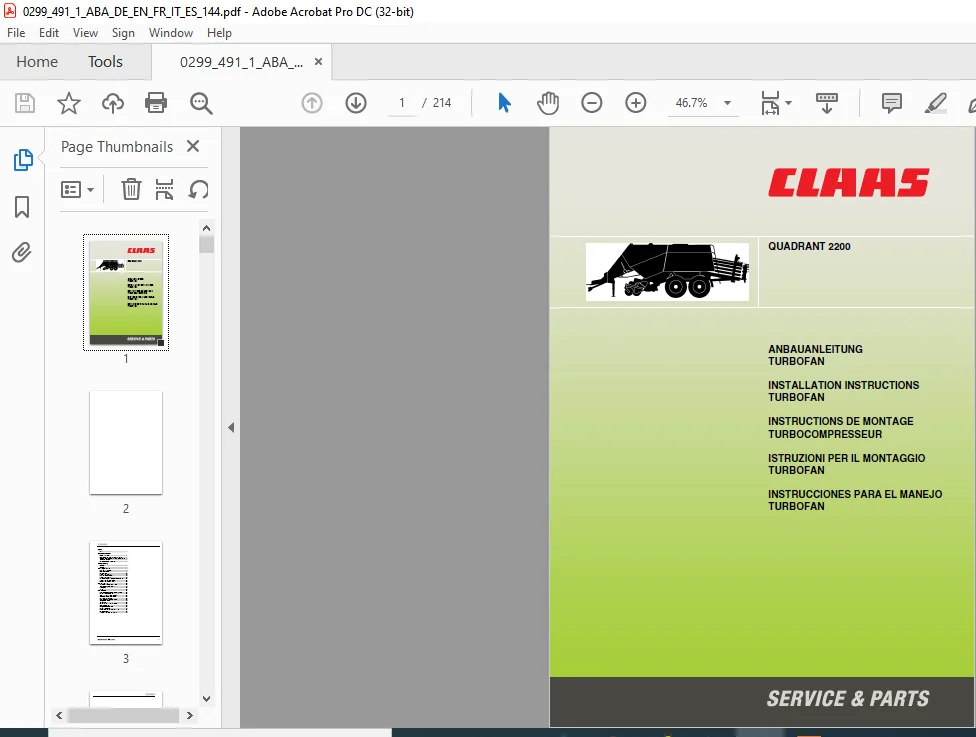

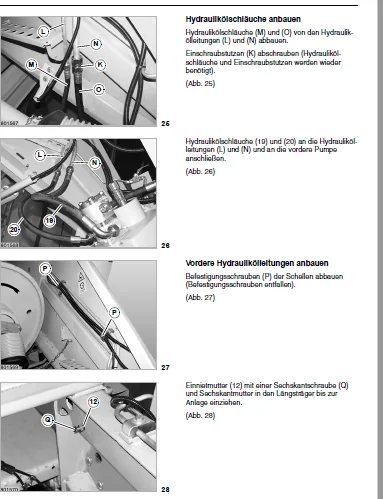

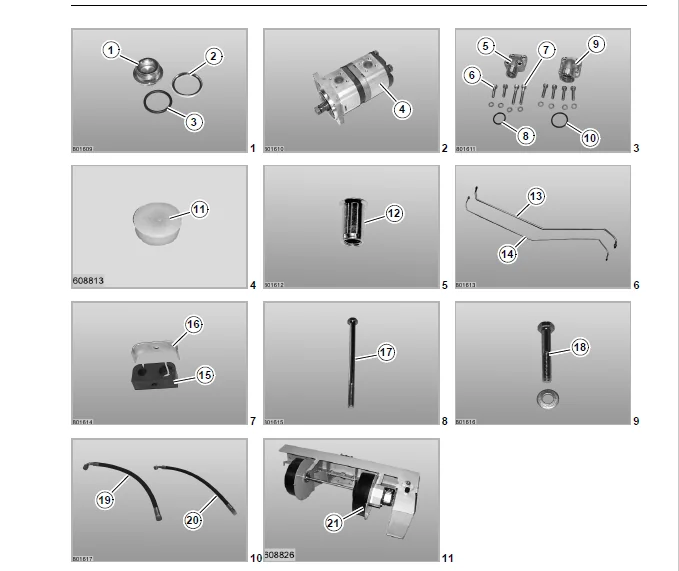

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
