CLAAS QUADRANT 2200 QUADRANT 2200 ROTO CUT CLAAS-Bale Discharger Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS QUADRANT 2200 QUADRANT 2200 ROTO CUT CLAAS-Bale Discharger Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS QUADRANT 2200 QUADRANT 2200 ROTO CUT CLAAS-Bale Discharger Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Introduction

These instructions show you how to fit the bale discharger on baler models QUADRANT 2200 and QUADRANT 2200 RC. The required parts are listed on page 5.
TABLE OF CONTENTS:

CLAAS QUADRANT 2200 QUADRANT 2200 ROTO CUT CLAAS-Bale Discharger Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Required parts Quantity
1 Bale discharger assy. 1
Hexagon bolt M16x35 2
Contact washer A16 2
Hexagon bolt M12x35 4
Hexagon nut M12 4
Contact washer B12 8
2 Hydraulic cylinder 50/40×1085 1
Hexagon bolt M20x110 2
Contact washer A20 2
Locking nut VM 20 2
3 Hose 1
4 Hose 1
5 Pipe 10x1x2180-10 1
6 Pipe 10x1x2200-10 1
7 Rubber bearing 4
8 Fastening clamp 4
Hexagon bolt M8x30 3
Hexagon bolt M8x40 1
Contact washer A8 3
Locking nut VM 8 1
9 4/3-way valve, preassembled 1
Socket head cap bolt M8x60 1
10 2-valve plug 3-pole ➔ 2×2-pole 1
11 Push button 2
12 Sticker 515 332.0 1

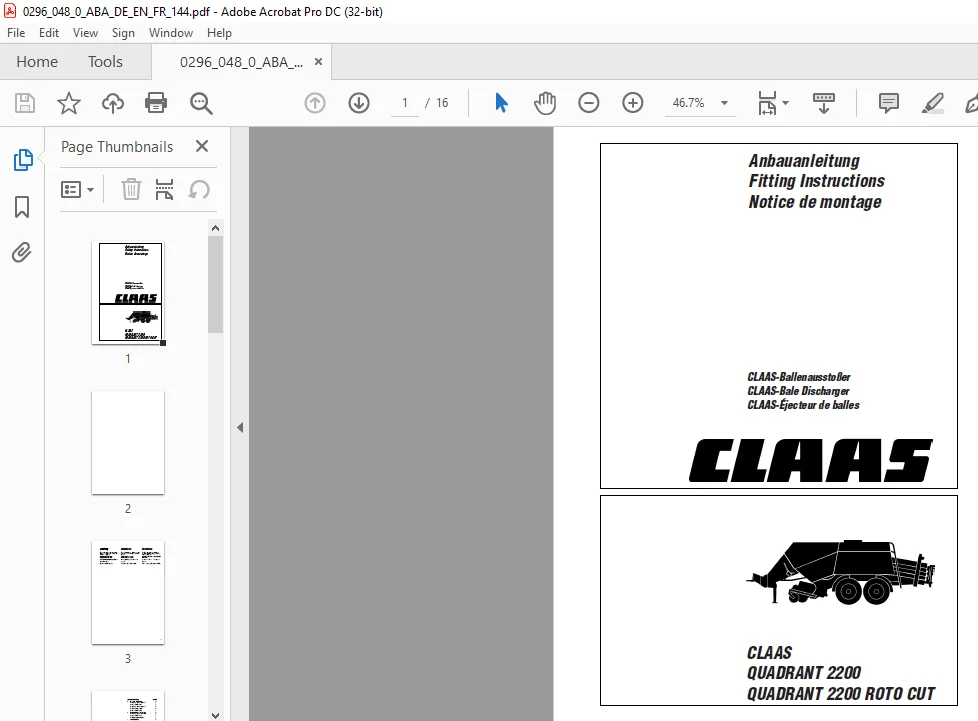

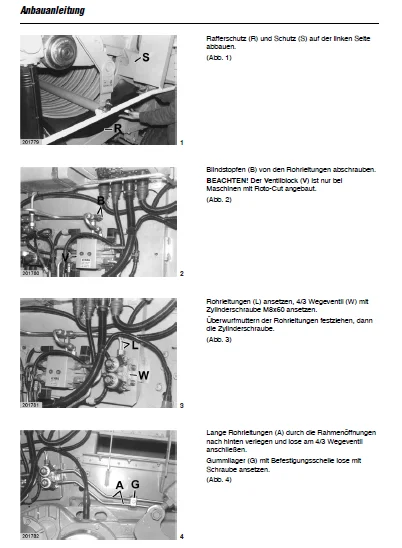

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual

S.M
