DESCRIPTION:

CLAAS QUADRANT 3300 Main gearbox casing Conversion instructions Manual_DE_EN_FR_IT – PDF DOWNLOAD

1 To this manual
1.1 General Information
1.1.1 General points

This manual describes the procedure for replacing the main gearbox upper casing on the following balers:

– QUADRANT 3300 – Type 757

It is essential to follow the safety advice given in the baler manual.

2 Safety
2.1 General Information
2.1.1 General points

• To prevent accidents, these instructions must be read by everyone who uses the machine and who deals with maintenance, servicing or inspection. Pay particular attention to the Safety section in the operator’s manual of the machine, and observe the accident prevention regulations applicable in the country of use.
• Before starting work, ensure that all tools and equipments are to hand. Compare the existing machine/accessories type with the list in the Bill of material section and the delivered spare parts kit. The specification of the parts, eg. for bolts, can be found in the list headed Parts kit. In this list, every part to be fitted has a position number. In the fitting instructions,
• existing parts are marked with letters and new parts with numbers for easier orientation. Texts and pictures have been kept neutral whenever possible. Text references indicate the differences between the individual types. Technical specifications,
• dimensions and weights are given as an indication only. Following CLAAS’s policy to improve its products as technical developments continue, CLAAS reserves the right to make alterations. Front, rear, right-hand and left-hand always refer to the machine as seen in the direction of forward travel

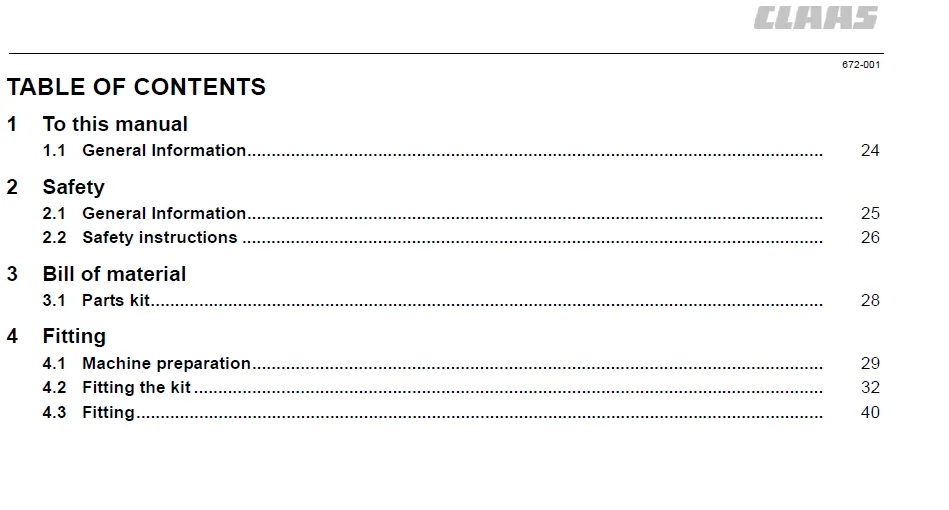

TABLE OF CONTENTS:

CLAAS QUADRANT 3300 Main gearbox casing Conversion instructions Manual_DE_EN_FR_IT – PDF DOWNLOAD

1 To this manual
11 General Information 24
2 Safety
21 General Information 25
22 Safety instructions 26
3 Bill of material
31 Parts kit 28
4 Fitting
41 Machine preparation 29
42 Fitting the kit 32
43 Fitting 40
