CLAAS QUANTUM 6800 S QUANTUM 5800 S QUANTUM 5700 S QUANTUM 5500 S-18 / QUANTUM 5500 S-16 QUANTUM 5500 S QUANTUM 4700 S QUANTUM 4500 S 3rd shredder drum FITTING INSTRUCTIONS MANUAL

Description

CLAAS QUANTUM 6800 S QUANTUM 5800 S QUANTUM 5700 S QUANTUM 5500 S-18 / QUANTUM 5500 S-16 QUANTUM 5500 S QUANTUM 4700 S QUANTUM 4500 S 3rd shredder drum FITTING INSTRUCTIONS MANUAL

DESCRIPTION:

CLAAS QUANTUM 6800 S QUANTUM 5800 S QUANTUM 5700 S QUANTUM 5500 S-18 / QUANTUM 5500 S-16 QUANTUM 5500 S QUANTUM 4700 S QUANTUM 4500 S 3rd shredder drum FITTING INSTRUCTIONS MANUAL

INTRODUCTION

Please read this manual thoroughly before starting work! Observe especially the section “General instructions”.

The following machines can be converted:
Self-loading forage wagon:

QUANTUM 6800 S
QUANTUM 5800 S
QUANTUM 5700 S
QUANTUM 5500 S-18
QUANTUM 5500 S-16
QUANTUM 5500 S
QUANTUM 4700 S
QUANTUM 4500 S

The package list is on pages 4.3 to 4.15. Before starting work make sure that the mounting kit is complete. The “Package list” can also be used as a supplement to the spare parts list. Dispose of old parts that are not required for the assembly in an environmentally correct manner.

General instructions
OF SPECIAL IMPORTANCE

• The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine/front attachment in order to prevent accidents. Read and understand especially the »General instructions« section and the chapter on »Safety« in your operator’s manual.
• Observe the pertinent accident prevention regulations of your country. Before starting work make sure that all necessary tools and devices are at hand.Make a comparison between the present type of machine/ implement, the list in section “Package list” and the delivered kit. For the specification of parts, e.g. screws, see the “Package list”.In this list every
• mounting part has an item number.Further details regarding these parts are the part no., the quantity, the dimensions, the ISO/DIN and the use. As a guideline, the existent parts in the installation instructions are marked with letters, while new parts are marked with numbers (item numbers). Texts and figures are formulated neutrally, as far as possible.
• The differences between the models are pointed out by notes in the text. Technical specifications, dimensions and weights are understood with the usual tolerances. IMPORTANT: Front, rear, right and left refer to the direction of forward travel

TABLE OF CONTENTS:

CLAAS QUANTUM 6800 S QUANTUM 5800 S QUANTUM 5700 S QUANTUM 5500 S-18 / QUANTUM 5500 S-16 QUANTUM 5500 S QUANTUM 4700 S QUANTUM 4500 S 3rd shredder drum FITTING INSTRUCTIONS MANUAL

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32

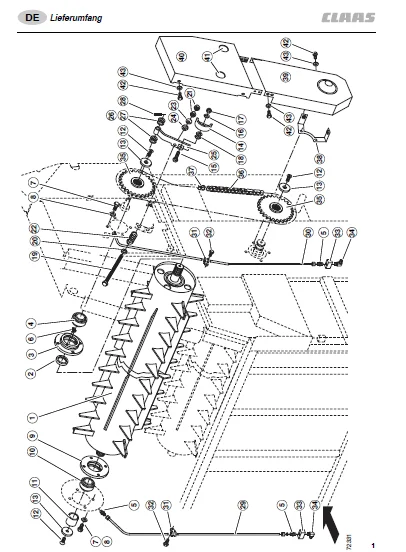

4 Package list
QUANTUM 6800 S / 5800 S / 5700 S / 4700 S –
Mounting kit: 1315 0720 43
QUANTUM 6800 S / 5800 S / 5700 S / 4700 S –
Mounting kit: 1315 0720 45
QUANTUM 6800 S / 5800 S / 5700 S / 4700 S –
Mounting kit: 1315 0720
– from machine No 614 0 2243 (Straight version) 47
QUANTUM 5500 S / 4500 S – Mounting kit: 0973 6211 49
QUANTUM 5500 S / 4500 S – Mounting kit: 0973 6211 411
QUANTUM 5500 S / 4500 S – Mounting kit: 0973 6211
– up to machine No 614 0 2242 (Inclined version) 413
QUANTUM 5500 S / 4500 S – Mounting kit: 0973 6211
– from machine No 614 0 2243 (Straight version) 415

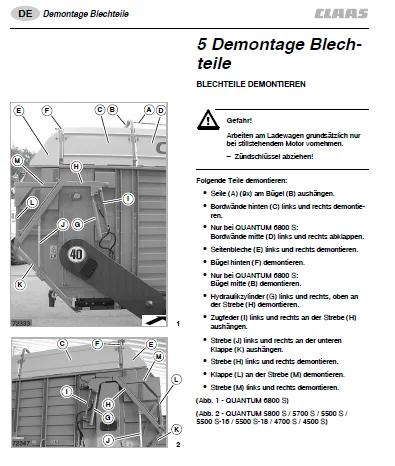

5 Removing sheet metal parts
Removing sheet metal parts 51
6 Fitting the 3rd shredder drum
Shredder drum assembly to machine no 614 0 2242
(inclined version) 61
Shredder drum assembly from machine no 614 0 2243
(straight version) 62
Shredder drum assembly to machine no 614 0 2242
(inclined version) 63
Drill holes on end plate
(QUANTUM 5500 S / S-18 / S-16 and 4500 S) 63
Mount shredder drum (1) 63
Shredder drum assembly from machine no 614 0 2243
(straight version) 64
Drill holes in the closing plate
(only on QUANTUM 5800 S / 5700 S / 5500 S / 5500 S-18 /
5500 S-16 / 4700 S and 4500 S) 64
Mount shredder drum (1) 64
Continuing assembly for all machines 65
Installing lubrication lines 67
Installing shredder drum drive 69
Installing guard covers 611
Functional check 611
Check and observe the following before putting
into operation 612
