CLAAS Ranger 907T Operator’s Manual- PDF DOWNLOAD

Description

CLAAS Ranger 907T Operator’s Manual- PDF DOWNLOAD
DESCRIPTION:

CLAAS Ranger 907T Operator’s Manual- PDF DOWNLOAD

Introduction

This manual is intended to give the machine operator the necessary information on usage, adjustment and operation of the Claas   Tractors  Provided all instructions are followed with regards to maintenance and care of your Claas  TELEPORTER, you can count on many years of reliable service and a long life of your machine. Please have your authorized Claas  dealer carry out the recommended regular inspections. The neglecting of regular maintenance and proper machine operation lead to reduced performance and loss of time. By correct servicing and operation you can make full use of our sound experience and of the latest technical knowledge in manufacturing Teleporters with which your Teleporter has been designed and thereby insure reliability of your machine

Road traffic regulations

NOTE:

• Road traffic regulations m可vary between countries. In case of discrepancies between the instructions provided by the manufacturer and the traffic regulations of the relevant countries, the traffic regulations of the countries concerned apply. In addition to his driving licence, the operator must always carry the copy of the vehicle type approval registration
• issuedthe Kraftfahrt-8undesamt(the Federal Motor Vehicle Executive). A warning triangle and, on machines over 4 t permissible total weight, at least one wheel chocl< must always be carried on the teleporter. When driving on public roads with the machine, comply with all the requirements stated under letter C in the copy of the vehicle type approval registration (§ 18 Section 5 StVZO) issued by the Kraftfahrt-Bundesamt (the Federal Motor Vehicle Executive). If any part闾
• of the teleporter is/are subsequently modified whose condition is/are prescribed or the operation of which (after being modified) could represent a hazard to other road users, then the vehicle type approval registration shall no tonger be valid and application must be made for a new vehicle type approval registration. In this case the machine must be presented to
• the motor vehicle safety inspection authority responsible 四V) in order to obtain an expert opinion certificate (§ 19 section 2 SlVZO). If you are in 叩doubt as to whether this situation applies in your case, please contact us as manufacturers. Registration As a self-propelled working machine with a maximum speed of less than 20 km/h,the teleporter is not subject
• to the normal registration regulations and is not required to bear a registration plate. The machine must, however, be dearly and indelibly marked on the left-hand side with the Christian name and surname of the owner and his address. The towing of trailers in the trailer hitch when driving on public roads is not permitted

lmportant

• The instructions ·contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine, in order to prevent accidents. Especially the SAFETY RULES and the sections CONTROLS and OPERATION in this manual should be read with utmost care and adhered to.
• The use of spare parts, accessories and ancillary equipment, which are not originally manufactured by CLAAS, can change the spec脰ddesign characteristics of 仇e CLAAS machine or can detract from Its 扣nctional performance, with a possible adverse affect on 1he active and/or passive operational-safety of 1he machine and its occupational safety standards (accident prevention).
• Cl.AAS are in no way liable for any damage or personal injury caused through the use of other than original or approved CLAAS parts, accessories and ancillary equipment.

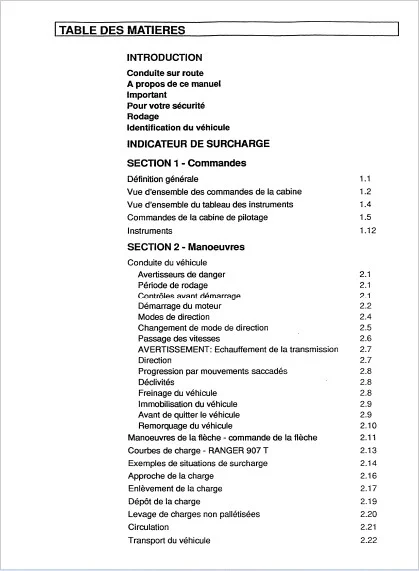

• TABLE OF CONTENTS:

CLAAS Ranger 907T Operator’s Manual- PDF DOWNLOAD

Road traffic regulations
Introduction to the handbook
Important
Safety Rules
Running in
Machine identification
OVERLOAD INDICATOR
SECTION 1 – Controls
General description 1.1
Cab Controls Layout 1.2
Instrument Console 1.4
Cab Controls Description 1.5
Instrument Controls Description 1.12
SECTION 2 – operation
Driving the machine
Safety warnings 2.1
Running-in procedure 2.1
Pre-start checks 2.1
Starting the engine 2.2
Steering modes 2.4
Changing steering modes. 2.5
Engage gear levers 2.6
WARNING: Transmission over heating 2.7
Steering 2. 7
Inching 2.8
Gradients 2.8
Braking the machine 2.8
Stopping the machine 2.9
Leaving the machine 2.9
Towing the machine 2.10
Boom operation – boom control 2.11
lifting envelope – RANGER 907 T 2.13
Examples of overload situations 2.14
Approaching a load 2.16
Picking up a load 2.17
Placing a load 2.19
lifting unpalletised loads 2.20
Travelling 2.21
Transporting the machine 2.22

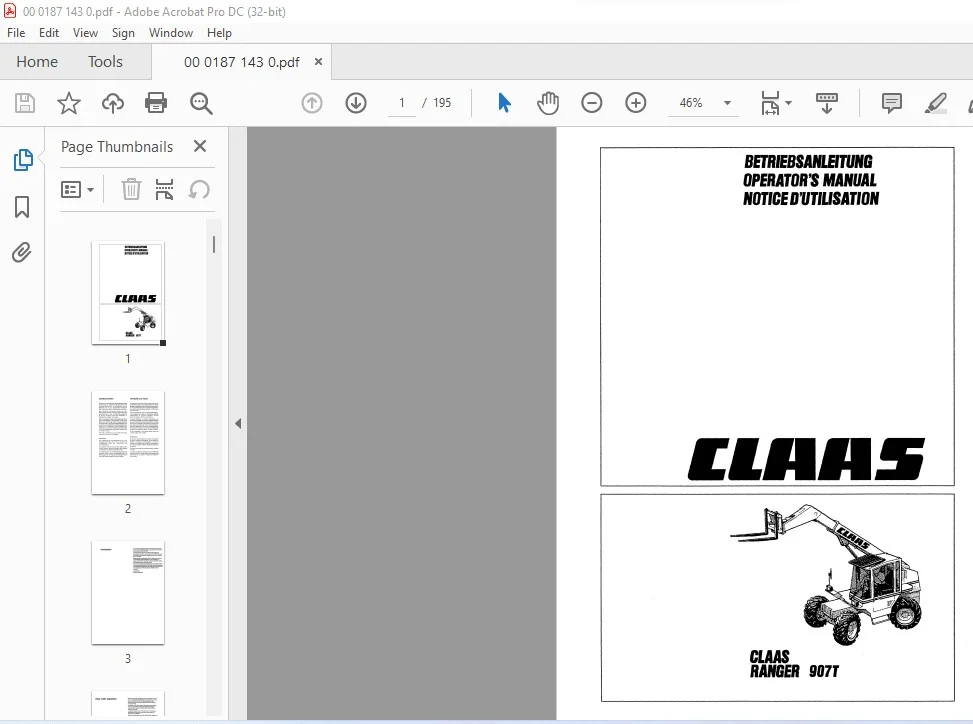

IMAGES PREVIEW OF THE MANUAL:

CLAAS RANGER 907T OPERATOR’S MANUAL- PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
