CLAAS RANGER 920 – 975 Plus TRAINING Technical Manual – PDF DOWNLOAD

Description

CLAAS RANGER 920 – 975 Plus TRAINING Technical Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS RANGER 920 – 975 Plus TRAINING Technical Manual – PDF DOWNLOAD

1.0 Load indicator operation

The load indicator displays, with a series of lights in the cab, the amount of loading on the telescopic arm, by the amount of load detracted from the rear axle. A single green light shows that the load indicator is functional. The first of ten LEDs is illuminated when the machine is loaded to about 45%, subsequent LEDs stand for approx. an increase of 6.5%. At 100% all the LEDs flash and a warning buzzer is sounded. Should the top red LED be illuminated, then the machine is loaded by 110% or greater. The load indicator monitors the reaction on a load cell mounted on the rear axle. The load cell’s resistance changes with compressional or tensile loads.

TABLE OF CONTENTS:

CLAAS RANGER 920 – 975 Plus TRAINING Technical Manual – PDF DOWNLOAD

1.0 Technical data
2.0 Operation
3.0 Safety/ load indicator
4.0 Engine
5.0 Gearbox
6.0 P.T.O shaft
7.0 Axles/ steering
8.0 Braking hydraulics
9.0 Working hydraulics
10.0 Electrics
11.0 Diagnostics
12.0 Air condition, heating
13.0 Options and variations
14.0 Frame, telescopic mast
15.0 Maintenance and care

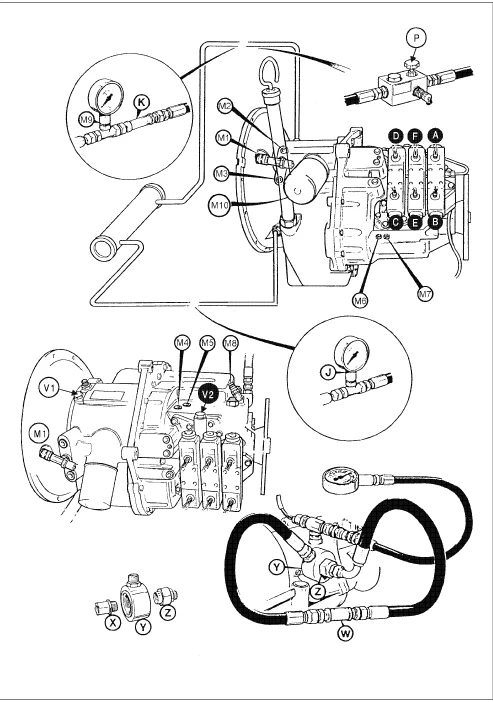

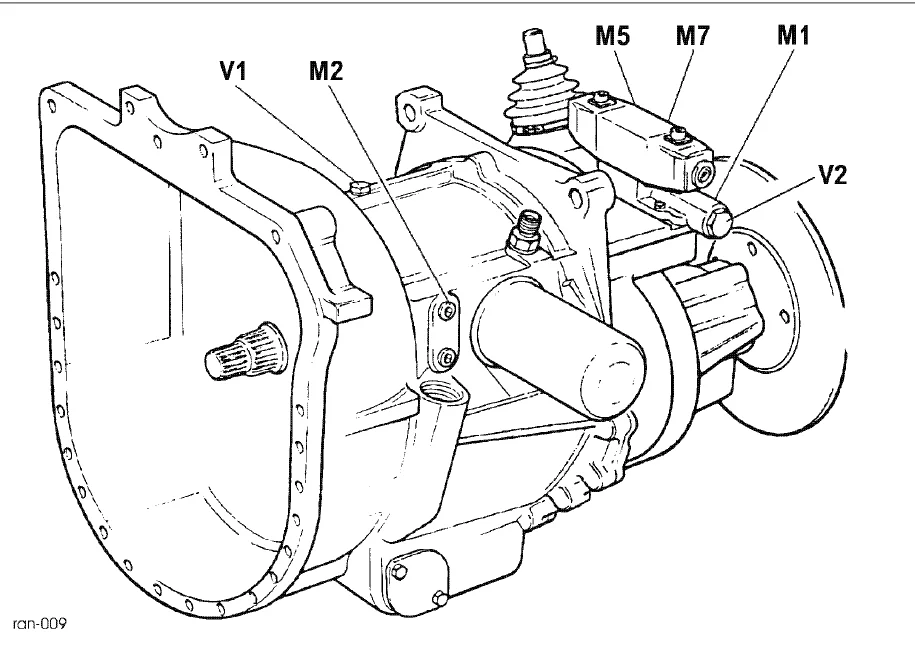

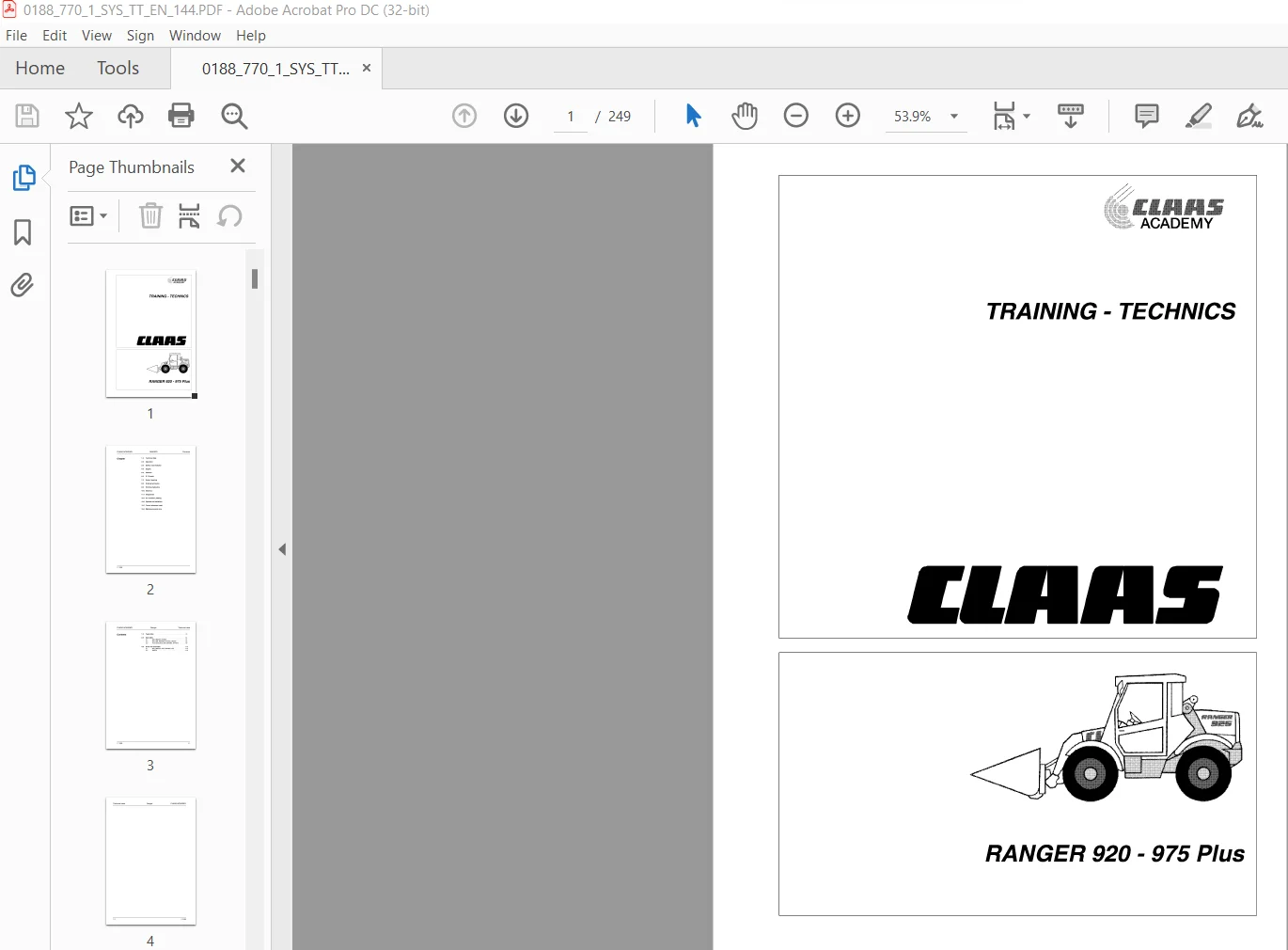

IMAGES PREVIEW OF THE MANUAL:

CLAAS RANGER 920 – 975 PLUS TRAINING TECHNICAL MANUAL – PDF DOWNLOAD:

PLEASE NOTE

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
