Introduction

This manual describes the procedure to follow for equipping Rollant 255 Uniwrap balers with the “Load Sensing” function. Carefully follow the “Safety Instructions” described in the operator’s manual.

Safety regulations
Important

• To prevent accidents, these instructions must be read by everyone who uses the machine/attachment and who deals with maintenance, servicing or inspection. It is advisable to pay particular attention to the section headed
• “Safety Instructions” in your operator’s manual as well as to comply with the regulations for the prevention of accidents that are in force in your country Before starting
• work, make sure that all the necessary tools and attachments are ready for use. Compare the machine type/attachment type at hand with the list in section “Scope of parts” and the delivered spare parts set. Specification of the parts, for example the screws, appears in the list headed “Scope of parts”.
• In this list each assembly component is identified by an item number (item no.) Parts such as nuts and contact washers are not identified by an item number.
• This components form part of the item number of the screw with which they must be assembled. Other instructions stated on these components are the spare part number, the description, the dimensions, DIN and the quantity supplied.
• In the assembly instructions, the available parts are identified by letters and new parts by numbers (item numbers) to act as a better guide.
• Texts and pictures have been kept neutral whenever possible. Text references point out the differences between the individual types.
• Technical data, dimensions and weights are given as an indication only. We reserve the right to errors and technical changes as part of ongoing technological developments.
• The terms front, rear, right and left always refer to the machine as seen in the direction of forward travel.

TABLE OF CONTENTS:

CLAAS ROLLANT 255 UNIWRAP Load Sensing ASSEMBLY INSTRUCTIONS Fitting Instructions Manual_DE_EN_FR

Load Sensing
Introduction 23
Important 25
Marking of warning and danger notes 26
General safety regulations and
instructions for the avoidance of accidents 26
Leaving the machine 26
Intended use 26
Scope of parts (0852 0690) 27
Setting up on workbench 31
Working on pressure hose pipe 31
Feeding hose pipe through 32
Working on the switch box 33
Operation 35

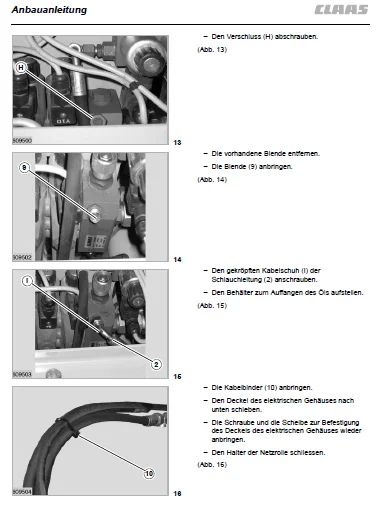

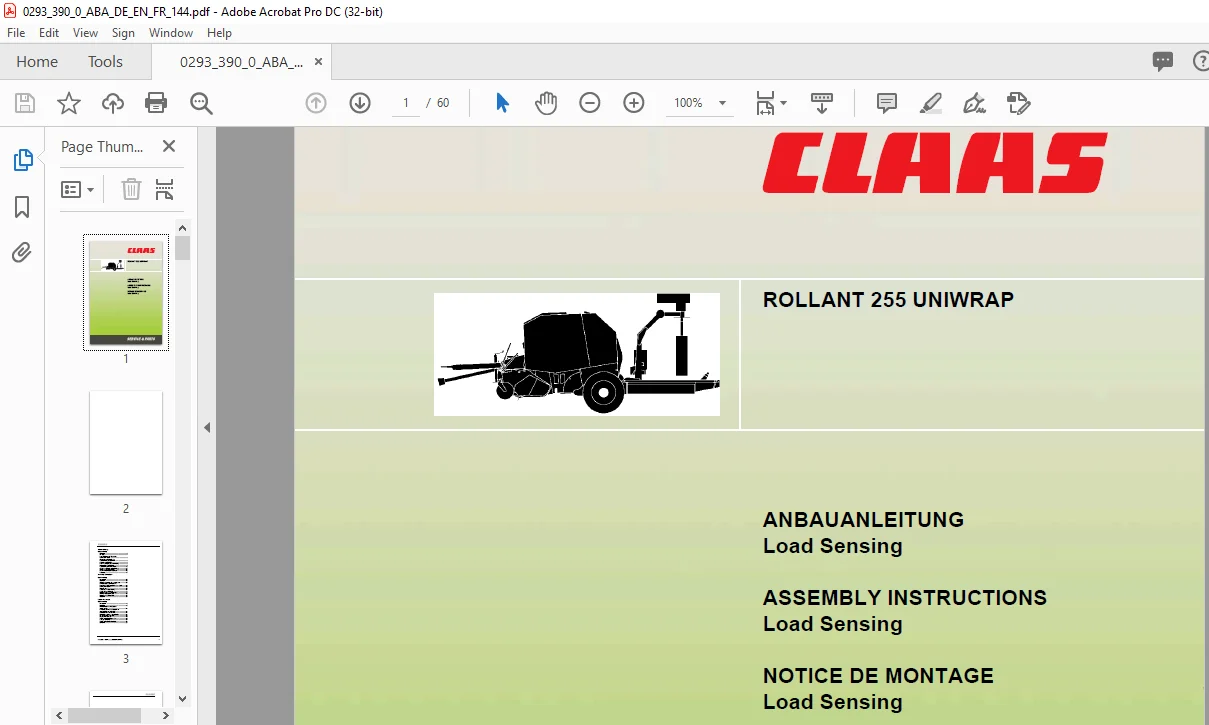

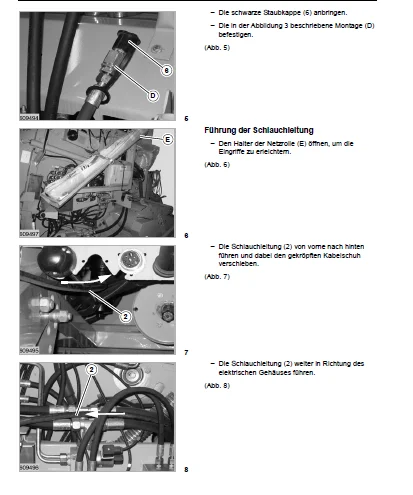

IMAGES PREVIEW OF THE MANUAL:
