CLAAS ROLLANT JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual_DE_EN_FR

Description

CLAAS ROLLANT JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS ROLLANT JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual_DE_EN_FR

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the compressed-air brake system to the forage harvester JAGUAR 900 – 830. The following machine number ranges apply to the supplementary kit 0090 492.1: Starting from 49203124 The standard mounting time is approx. 10.0 man hours.

General
information
IMPORTANT

• The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the „Safety Rules“ in the operating instructions should be read with the utmost care and adhered to.
• In addition, please also observe the accident prevention regulations that apply for your own country. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have part numbers.
• These parts are listed under the part number for the screws with which they are fitted. Additional part specifications are the parts no., description, dimensions, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number).
• The text and pictures were kept neutral as far as possible. Differences between the individual types are mentioned in the text. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel

TABLE OF CONTENTS:

CLAAS ROLLANT JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual_DE_EN_FR

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Intended use 32

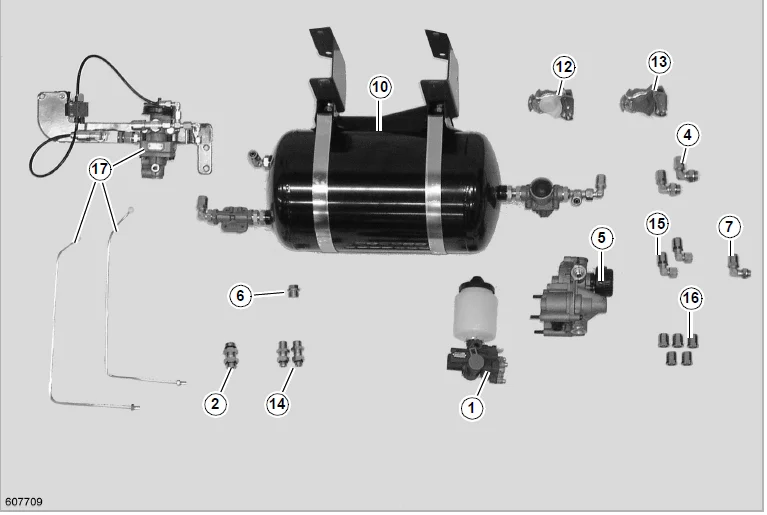

4 Shipping package
Shipping package 41
Parts list for hydraulic plan 45
5 Installation
Compressed air brake system 51
Installing the compressed air brake system 51
Trailer control valve 519
Bleeding the brake system 519
Performing a test run 520
Testing instruction for compressed air brake system 522

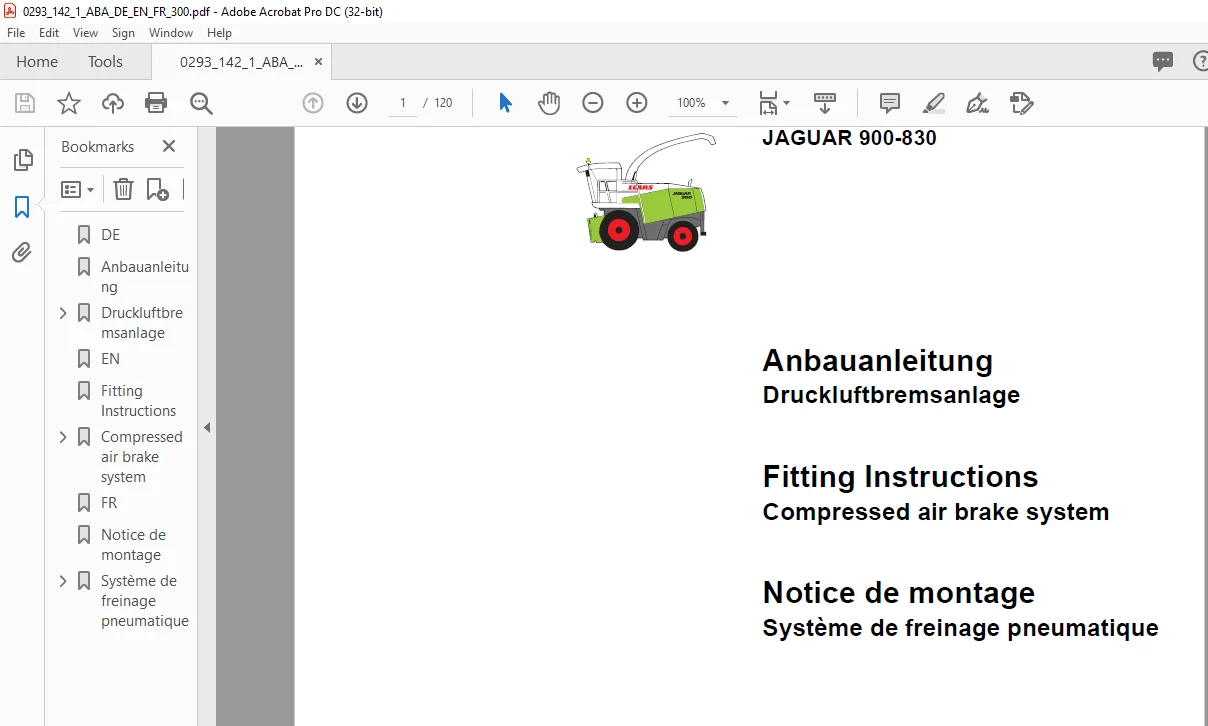

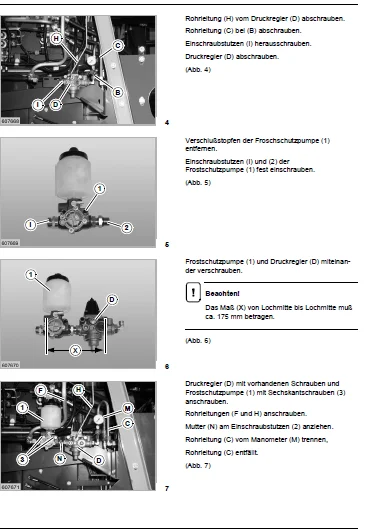

IMAGES PREVIEW OF THE MANUAL:

CLAAS ROLLANT JAGUAR 900-830 COMPRESSED AIR BRAKE SYSTEM FITTING INSTRUCTIONS MANUAL_DE_EN_FR:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
